0.8TOPS

NiceLit Series RK3566/RK3568 Mini-sized ARM-based Single Board Computers.png

NiceLit Series RK3566/RK3568 Mini-sized ARM-based Single Board Computers

Embedded Board

NiceLit Series Rockchip Single Board Computers

RK3568: Quad-core Cortex-A55, 2.0GHz (Max.) |
RK3566: Quad-core Cortex-A55, 1.8GHz (Max.)

ARM Mali-G52, 600MHz;
OpenGL ES1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1 supported


1 TOPS, int8/int16/FP16/BF16/BFP16 supported

3568: 1 x 4-lane MIPI DSI, up to 1920 x 1080 @60Hz;
2 x Micro HDMI 2.0, up to 4K + 1080P
(Extended mode supported)   |
3566: 2 x Micro HDMI 2.0, up to 4K + 1080P
(Duplicate mode supported)

2 x USB 2.0 Type A; 2 x USB 3.0 Type A; 1 x USB 2.0 Type-C (power, data, OTG)

1 x Wi-Fi & Bluetooth antenna connector (IPEX-1)

Android, Debian (Other Linux distributions supported upon request)

BlueSphere MDM (Optional for Android version)

Operating: -20℃~+70℃
Storage: -40℃~+85℃

VT-SBC-EKT ElkhartLake X86-based Single Board Computer,Front.jpg

VT-SBC-EKT ElkhartLake X86-based Single Board Computer,Back.jpg

VT-SBC-EKT ElkhartLake X86-based Single Board Computer,Side.jpg


VT-SBC-EKT ElkhartLake X86-based Single Board Computer

VT-SBC-EKT X86-based Intel Single Board Computer

Intel® Atom® x6425E Processor, 4C4T, 2.0GHz (base), 3.0GHz (turbo), 12W TDP;
Optional: Intel® Celeron® J6412 Processor, 4C4T, 2.0GHz (base), 2.6GHz (turbo), 10W TDP

DDR4 SO-DIMM socket, 3200MT/s, up to 16 GB

64GB eMMC;
1 x SATA Gen 3 slot (6Gb/s, up to 2TB);
M.2 (2242) B-Key SSD supported (up to 256GB)

1 x 3.5mm Headphone jack;  1 x 3.5mm Microphone jack;  2 x 2W/8R Speaker connector

2 x RSRS232/RS422/RS485 connector; 2 x RS232 connector; 1 x RS485 connector

2 x USB 2.0 Type-A; 2 x USB 3.0 Type-A; 2 x USB 2.0 connector

1 x M.2 B-Key, 2242 (PCIex1) for SSD or 3052 (USB 2.0/USB 3.0) for 4G/5G;
1 x M.2 E-Key, 2230 (PCIex1/USB 2.0) for Wi-Fi & BT

1 x Control header (Power button, Power LED, Reset button)

12-36V DC               (1 x Power connector; 1 x Power jack)

Operating: -20°C ~ +80°C (6425E); 0 ~ +70°C (J6412);
Storage: -40°C ~ +85°C


VT-SBC-RK66 RK3566 ARM-based Single Board Computer,Front.jpg

VT-SBC-RK66 RK3566 ARM-based Single Board Computer,Back.jpg

VT-SBC-RK66 RK3566 ARM-based Single Board Computer,Side.jpg

VT-SBC-RK66 RK3566 ARM-based Single Board Computer

VT-SBC-RK66 Rockchip Single Board Computer

Rockchip RK3566, Quad-core ARM Cortex-A55 processor, 1.8GHz (Max.)

32GB (up to 128GB)
1 x Micro SD slot (up to 128GB)

1 x HDMI, Type-A, up to 4K@60Hz;
1 x 4-lane eDP, 2K@60Hz;
1 x 8-lane MIPI DSI (including 4 lanes multiplexed with LVDS): single-channel MIPI DSI: 1080P@60Hz, LVDS: 720P @60Hz; dual-channel MIPI DSI: 2K@60Hz

1 x RS232 (DB9); 2 x RS232/485 (DB9);
1 x RS232 (pin header)

4 x USB 2.0 Type-A (USB OTG supported) 1 x USB 3.0

1 x 4G LED, 1 x Power LED, 1 x User defined, 1 x System LED

Android 11, GMS certified (Optional: Linux OS)

Operating: 0℃~+60℃ Storage: -40℃~+85℃

12V/24V 3A DC (±5%), 1 x 3 x 3.81mm terminal

VT-SBC-IMX8MMN i.MX8M Mini/Nano ARM-based Single Board Computer,Front.jpg

VT-SBC-IMX8MMN i.MX8M Mini/Nano ARM-based Single Board Computer,Back.jpg

VT-SBC-IMX8MMN i.MX8M Mini/Nano ARM-based Single Board Computer

VT-SBC-IMX8MMN ARM-based NXP Single Board Computer

i.MX 8M Mini, Quad-core ARM Cortex-A53, up to 1.8GHz

1 x Mic; 2 x Speaker connector; 1 x 3.5mm audio jack

1 x Micro USB 2.0 OTG; 4 x USB 2.0 Type-A

1 x RS232/RS485; 1 x RS232; 1 x Debug RS232

1 x I2C for TP;
1 x I2C for backlight control;
1 x Mini PCIe;
1 x SPI

4 x User defined LED; 1 x Power LED; 1 x 4G LED

0.3TOPS

VT-SBC-I350 MT8365 ARM-based Single Board Computer.jpg

VT-SBC-G350 MT8365 ARM-based Single Board Computer

VT-SBC-G350 ARM-based MediaTek Single Board Computer

MTK MT8365 (G350), Quad-core ARM Cortex-A53 processor, 2.0GHz (Max.)

Mali-G52, 3D graphic accelerator, capable of processing 57.6 GFLOPS and 1600M pixel/s, 800MHz

16GB eMMC 5.1, up to 64GB; 1 x Micro SD slot (SDIO 3.0); 2Kb EEPROM

1 x RJ45,10/100Mbps, RTL8201 (Ethernet PHY), not for simultaneous use with HDMl

1 x 4-lane MIPI DSI, up to 1920 x 1080;  1 x HDMI (Type-A), up to 1920 x 1080 (Not for simultaneous use with RJ45)

1 x A-Mic to PMIC; 2 x D-Mic to AP (CPU), noise reduction; 1 x 3.5mm combo audio jack; 2 x Speaker connector

2 x 4-Lane MIPI CSI, 13MP, 1080P/60fps video decoder

2 x UART for communication; 1x UART for debugging

1 x USB 2.0 Type-C 1 x USB 2.0 Type-A (1A output)

1 x I2 C for TP; 1 x I2 C for external communication

1 x Reset button; 1 x ON/OFF button; 2 x Volume -/+ button

Android 10 or higher; Linux (Support upon request)

Operating: -20℃~+60℃; Storage: -40℃~+85℃

VT-SBC-3399 RK3399 ARM-based Single Board Computer,Front.jpg

VT-SBC-3399 RK3399 ARM-based Single Board Computer,Back.png

VT-SBC-3399 RK3399 ARM-based Single Board Computer

VT-SBC-3399 Rockchip Single Board Computer

Rockchip RK3399, dual-core ARM Cortex-A72 1.8GHz and quad-core ARM CortexA53 processor, 1.4GHz

ARM Mail-T860 MP4, support OpenGL ES 3.1, OpenVG 1.1, OpenCL 1.2, Vulkan 1.0

1 x HDMI, up to 4K @60Hz;
1 x MIPI DSI, up to 1920 x 1080 @60Hz;
1 x Dual LVDS, 1920 x 1080 @60Hz / 1 x 4-channel eDP, 2560 x 1600 @60Hz

1 x 3.5mm Combo audio jack;
1x Speaker connector

1 x RS485; 2 X RS232; 1 x RS232 for debugging

1x USB 3.0 Type-A; 1 x USB 2.0 Type-A; 3 x USB 2.0 Host connector; 1 x USB 3.0 Type-C (OTG supported)

Operating: 0℃~+60℃
Storage: -40℃~+85℃

VT-SBC-RK35M RK3288 ARM-based Single Board Computer,Front .jpeg

VT-SBC-RK35M RK3288 ARM-based Single Board Computer,Back.jpeg

VT-SBC-RK35M RK3288 ARM-based Single Board Computer,Side.jpeg

VT-SBC-RK35M RK3288 ARM-based Single Board Computer

VT-SBC-RK35M Rockchip Single Board Computer

Rockchip RK3288W, Quad-core ARM Cortex-A17 processor, 1.6GHz (Max.)

1 x HDMI 2.0 Type-A; 1 x 4-lane eDP/Dual LVDS

1 x Audio connector;
2 x 3W/8R Speaker connector

1 x RS232 (DB9);
1 x RS232/RS485/RS422;
1 x RS232 for debugging (3.5mm audio jack)

4 x USB 2.0 Type-A;
3 x USB 2.0 Host connector;
1 x Micro USB (OTG supported)

1 x Power button;
1 x Recovery/Volume + button;
1 x Reset button

Operating: 0℃~+50℃ (25℃ recommended)
Storage: -20℃~+60℃ (25℃ recommended)

Operating: RH 20%-80% (Non-condensing)
Storage: RH 10%-90% (Non-condensing)

VT-SBC35-APL ApolloLake X86-based Single Board Computer,Front.png

VT-SBC35-APL ApolloLake X86-based Single Board Computer,Back.png

VT-SBC35-APL ApolloLake X86-based Single Board Computer

VT-SBC35-APL X86-based Intel Single Board Computer

Intel® ATOMTM, APL-I E3940 Quad-core processor, 1.8GHz (Max.)

64GB eMMC (Optional);
1 x SATA 3.0, 6Gb/s, up to 2TB;
SSD expansion via M.2 B-key (2242), up to 256GB

1 x HDMI (Standard), 3840 x 2160 @30Hz;
1 x Dual LVDS (up to 1.4b), 3840 x 2160 @30Hz;
1 x eDP, 4096 x 2160 @60Hz

1 x 3.5mm Combo audio jack; 1 x Audio connector; 1 x Mic connector; 2 x Speaker connector

2 x USB 2.0 Type-A; 2 x USB 3.0 Type-A; 4 x Internal USB 2.0

1 x Full Mini-PCIe for 4G LTE expansion;
1 x M.2 B-key (2242, PCIe x4/SATA) for SSD expansion;
1 x M.2 E-key (2230, PCIe x1/USB 2.0) for Wi-Fi & BT expansion

Operating: -20℃~+60℃ Storage: -40℃~+85℃

VT-MITX-TGL TigerLake X86-based single board computer.png

VT-MITX-TGL TigerLake X86-based single board computer-interface.png

VT-MITX-TGL TigerLake X86-based Single Board Computer

VT-MITX-TGL X86-based Intel Single Board Computer

11th Gen Intel® Core™ U-Series i3-1115G4/ i5-1155G7/ i7-1195G7

2 x DDR4 SO-DIMM socket, 3200MHz, up to 64GB

1 x SATA 3.0;
SSD expansion via M.2 M-Key

2 x RJ45, 10M/100M/1000M Base-T (Intel® 1Gbps PCIe controller)

1 x HDMI: Resolution up to 4096 x 2160@24Hz; 1 x DP: Resolution up to 4096 x 12160 @24Hz; 1x eDP: Resolution up to 4096 x 2160@60Hz; 1 x LVDS with backlight control: resolution up to 1920 x 1200 @60Hz

1 x Mic/Line-out; 2 x Speaker connector; 1 x Headphone jack; 1 x Microphone jack

2 x USB 2.0 Type-A;
2 x USB 3.0 Type-A;
1 x USB 3.1 Type-C;
3 x Built-in USB 2.0

1 x Nano SIM slot (connected to M.2 B-Key)

1 x Front panel header (power button, reset button, LED power)

1 x M.2 B-Key (3042/3052, PCIe x1 / USB 3.0 for 4G/5G expansion)
1 x M.2 M-Key (2242/2280, PCIe x4 / SATA / USB 2.0 for SSD expansion);
1 x M.2 E-Key (2230, PCIe x1 / USB 2.0 for Wi-Fi & BT expansion)

Windows 10 IoT, Linux (Support upon request)


12V~36V DC (1 x 4-pin power header, 1 x Power jack)

Operating: 0℃~+60℃ (Optional: -40℃~+85℃) Storage: -20℃~+75℃ (Optional: -55℃~+85℃)

VT-MITX-APL ApolloLake X86-based Single Board Computer,Front.png

VT-MITX-APL ApolloLake X86-based Single Board Computer,Back.png

VT-MITX-APL ApolloLake X86-based Single Board Computer

VT-MITX-APL X86-based Intel Single Board Computer

Intel® CoreTM, APL-N3350, Quad core, 2.4GHz (Max) (Optional: N4200)

1 x DDR3L SO-DIMM socket, 1866 MHz, up to 8GB

1 x HDMI 1.4b, 3840 x 2160 @30Hz;
1 x Dual-channel LVDS, 1920 x 1200 @30Hz;
1 x VGA, 1920 x 1200 @60Hz

1 x 3.5mm Audio jack;
1 x 3.5mm Mic jack;
1 x Audio connector;
2 x Speaker connector

2 x USB 2.0 Type-A;
2 x USB 3.0 Type-A;
4 x Built-in USB 2.0

1 x PS/2 connector; 2 x Standard fan connector

1 x Full Mini-PCIe for 4G with SIM slot;
1 x M.2 B-key (2242) for SATA SSD or (3052) for 5G;
1 x M.2 E-key (2230) for Wi-Fi & BT

12V DC (1 x Power jack; 1 x Power terminal)

VT-MITX-SKLU X86-based Single Board Computer,Front.jpg

VT-MITX-SKLU X86-based Single Board Computer,Back.jpg

VT-MITX-SKLU X86-based Single Board Computer,Side.jpg

VT-MITX-SKLU X86-based Single Board Computer

1 x LVDS with backlight control (Optional: eDP)
1 x VGA
1 x HDMI

VT-MITX-SKLU X86-based Intel Single Board Computer

6TOPS

VT-SBC-3588 RK3588 ARM-based Single Board Computer,Front.png

VT-SBC-3588 RK3588 ARM-based Single Board Computer,Back.png

VT-SBC-3588 RK3588 ARM-based Single Board Computer

Operating: 0℃ ~ +60℃ Storage: -40℃ ~ +85℃

1 x Power distribution block 1 x Power connector 12V/5A, 24V/3A

4 x GPIO on the Phoenix terminal 4 x GPIO connector

1 x M.2 M-Key (2260/2280), PCIe 3.0 x 4, for SSD 1 x M.2 B-Key (2242/3052), USB3.0/SATA3.0, for 4G/5G/SSD

2 x RS232/RS485 on the Phoenix terminal 4 x RS232/RS485 connector

2 x USB 3.0 Host, Type-A 1 x USB 2.0 Host, Type-A 1 x USB Type-C OTG 3 x USB 2.0 connector

1 x Mic in connector 1 x Line out connector

1 x HDMI 2.1 (4096 x 2160 @60Hz)
1 x Dual-channel LVDS (1920 x 1200 @60Hz)
1 x eDP (1920 x 1080 @60Hz)
1 x MIPI DSI (1920 x 1080 @60Hz)

eMMC 32GB, up to 128GB SSD supported by an M.2 M-Key/M.2 B-Key (256GB ~ 1TB)

RK3588 Quad-core Cortex-A76 + Quad-core Cortex-A55, Max. 2.4GHz;
Optional: RK3588J Quad-core Cortex-A76 (Max. 2.0GHz) + Quad-core Cortex-A55 (Max. 1.7GHz)

VT-SBC-C3558R X86-based Single Board Computer,Front .jpg

VT-SBC-C3558R X86-based Single Board Computer,Back.jpg

VT-SBC-C3558R X86-based Single Board Computer,Side.jpg

VT-SBC-C3558R X86-based Single Board Computer

Intel Atom® C3558R Quad-core processor, 2.4GHz (17W TDP)

32GB eMMC V5.0
2 x SATA 3.0 connector
1 X M.2 B-Key for SSD card

6 x RJ45, 10/100/1000Mbps
Bypass: 1 pair (Optional: 2 pairs)

2 x 10Gb SFP connector with activity indicators (Optional)

1 x Clear RTC jumper
1 x Clear CMOS jumper （1 x Flash security override jumper）

1 x M.2 E-Key (2242) for Wi-Fi/BT module
1 x M.2 B-Key (3052) for 4G/5G module
1 x M.2 B-Key (2280) for SATA SSD

1 x Power indicator
1 x System indicator
1 x HA indicator
1 x Bypass indicator

12V~36V DC
1 x Power jack (wide input voltage)
2 x Internal power connector (12V)

Operating: 0°C~+50°C Storage: -20°C~+70°C

Operating and storage: RH 10%-85% (Non-condensing)

VT-SBC-C3558R X86-based Intel Single Board Computer

2.8TOPS

VT-SBC35-G510 MT8370 Single Board Computer Front.jpeg

VT-SBC35-G510 MT8370 Single Board Computer	Side.jpeg

VT-SBC35-G510 MT8370 Single Board Computer Back.jpeg

VT-SBC35-G510 MT8370 Single Board Computer

VT-SBC35-G510 MT8370 ARM-based MediaTek Single Board Computer

MediaTek MT8370, Dual-core ARM Cortex-A78 (2.0 GHz) processor + Quad-core ARM Cortex-A55 (2.0 GHz) processor

2.8 TOPS, Tensilica VP6 + MediaTek Deep Learning Accelerator (MDLA 3.0)

64GB eMMC 5.1
; Optional: SSD expansion (M.2 Key B)

Wi-Fi 5 & BT 5.0
; Optional: Wi-Fi 6 & BT 5.2 or 4G/5G (M.2 Key B)

1 x HDMI 2.0, up to 4K @60Hz
; 1 x MIPI DSI/Dual LVDS, up to 2K @30Hz
; 1 x eDP, up to 2K @60Hz
; 1 x DisplayPort over USB Type-C, up to 4K @60Hz

1 x 3.5mm Combo audio jack
; 2 x DMIC
; 1 x Line out connector
; 3 x Line in connector

2 x MIPI CSI-2, ISP: 32MP @30fps (single cam.) / 16MP + 16MP @30fps
(dual cam.)

2 x RS232 connector
; 2 x RS232/RS422/RS485 connector

2 x USB 2.0 Type-A
; 2 x USB 3.0 Type-A
; 2 x USB 2.0 connector
; 1 x Micro USB 2.0 (Debug)
; 1 x USB 3.0 Type-C (DisplayPort)

12 x GPIO (Max.), including 1 x SPI, 1 x UART (3.3V, with RTS/CTS), 2 x I2C

1 x M.2 key B (2242, PCIe 2.0 for SSD or 3052, USB 3.0 for 4G/5G or Wi-Fi 6 & BT 5.2)

4 x Key (Home, Reset, Volume, Power)
; 2 x LED connector

12V/3A DC (via the DC jack or USB Type-C)

Operating: -20℃~+70℃
(Optional: -40℃~+80℃)
; Storage: -40℃~+85℃
(Optional: -55℃~+85℃)

4.4TOPS

VT-SBC35-G700 MT8390 Single Board Computer Front.jpg

VT-SBC35-G700 MT8390 Single Board Computer Side.jpg

VT-SBC35-G700 MT8390 Single Board Computer

VT-SBC35-G700 MT8390 MediaTek Single Board Computer

MediaTek MT8390, Dual-core ARM Cortex-A78 (2.2 GHz) processor + Hexa-core ARM
Cortex-A55 (2.0 GHz) processor

4.4 TOPS, Tensilica VP6 + MediaTek Deep Learning Accelerator (MDLA 3.0)

64GB eMMC 5.1; Optional: SSD expansion (M.2 Key B)

Wi-Fi 5 + BT 5.0; Optional: Wi-Fi 6 & BT 5.2 or 4G/5G (M.2 Key B)

1 x HDMI 2.0, up to 4K @60Hz;
1 x MIPI DSI/Dual LVDS, up to 2K @30Hz;
1 x eDP, up to 2K @60Hz;
1 x DisplayPort over USB Type-C, up to 4K @60Hz

2 x MIPI CSI-2, ISP: 32MP @30fps (single cam.)/ 16MP + 16MP @30fps (dual cam.)

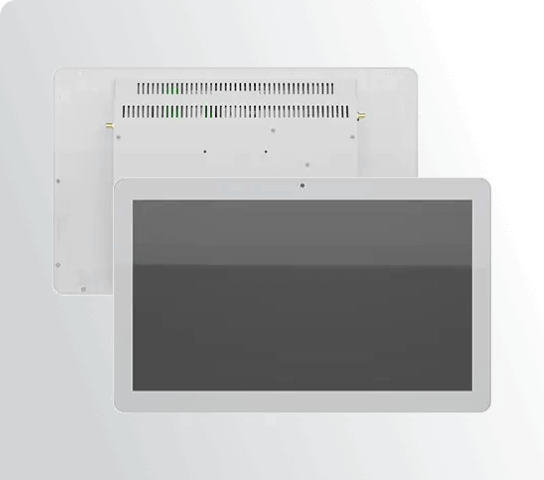

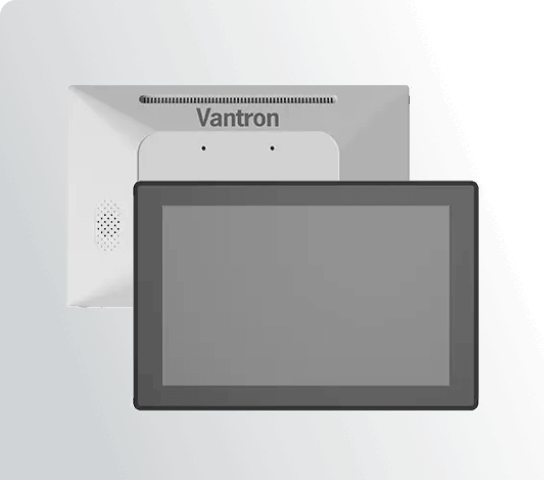

All-in-One Panel PC

Contact
