GAPL 5G High-performance X86-based Edge Computing Gateway

GAPL 5G High-performance X86-based Edge Computing Gateway

Features

◆ Low power consumption, high cost performance

◆ Rich industrial interfaces

◆ 4G/5G/Wi-Fi/Bluetooth/GPS supported

◆ SDK available

◆ Remote management and upgrade

◆ Wide input voltage range (9V-36V)

Description

Specifications

Documentation

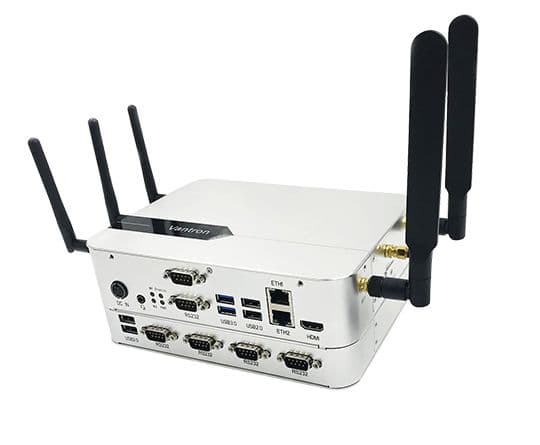

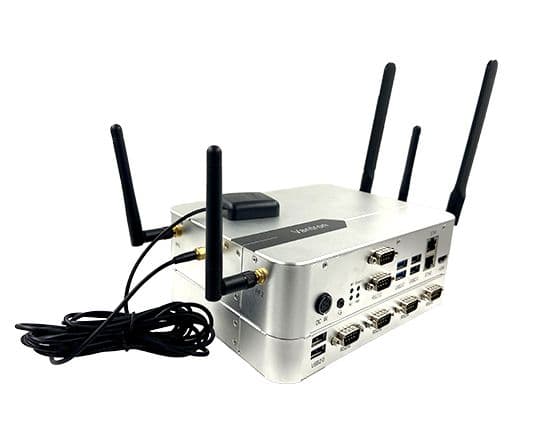

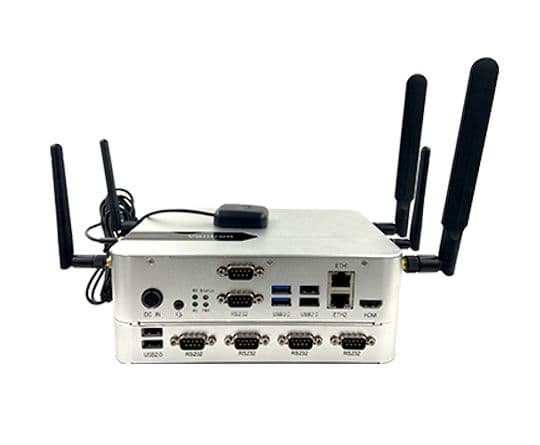

Vantron GAPL is an X86-based edge computing gateway designed for industrial IoT communication and application in various industrial scenarios. Featuring high performance and high scalability, the gateway is powered by the cost-effective Intel® AtomTM Apollo Lake processor that optimizes the gateway performance yet at very low power consumption.

The gateway adopts industrial design with guaranteed quality and reliability to offer an ideal solution for IoT applications. It provides rich peripheral interfaces, and supports remote management and remote upgrade to meet different requirements at industrial sites. Customers have a wide range of choices for wireless communication, including 4G/5G cellular networks, WLAN, Bluetooth, LoRa and GPS. Moreover, the Software Development Kit (SDK) is available for customers to create an ecosystem for their specific use.

Specifications

CPU

Intel® ATOM™ Apollo Lake N/E series processor

Memory

4G DDR4, up to 8GB

Storage

1 x 8GB, up to 64GB 1 x SATA 3.0 (Optional)

Ethernet

2 x RJ45, 10/100/1000M Base-T

4G/5G

Optional

Wi-Fi & Bluetooth

Optional

LoRa

Optional

GPS

Optional

Interface

1 x VGA 1 x HDMI

Serial port

1 x RS232, 1 x RS232/RS485/RS422 4 x RS232 (Optional)

USB

2 x USB 3.0 2 x USB 2.0 2 x USB 2.0 (Optional)

Built-in

1 x Mini PCI-e 1 x M.2

Reserved on board

1 x 8-pin GPIO 1 x SPI 1 x LPC

Button

1 x Reset button

LED

1 x Power indicator (Running: Green; shutdown: Red), 1 x Status indicator (hard disk data writing/reading: Blinking), 2 x Wireless module indicator (Data transmission: Blinking; Customization supported)

Dimensions (Dual-layer)

200mm x 150mm x 78.7mm (Enclosure only) 245.8mm x 167.9mm x 78.7mm (With installation brackets)

Enclosure

Silver-colored aluminum alloy

Installation

DIN rail mounting/Wall mounting/Panel mounting

Input

12V-36V DC

Windows 10, Ubuntu

SDK

Available

Product Name

GAPL 5G High-performance X86-based Edge Computing Gateway

Documentation

GAPL Edge Computing Gateway Datasheet

GAPL Edge Computing Gateway User Manual
