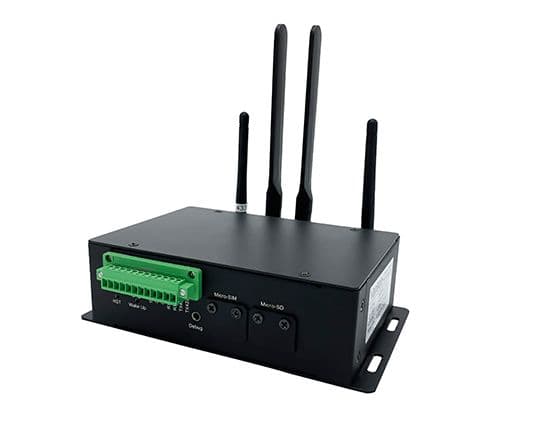

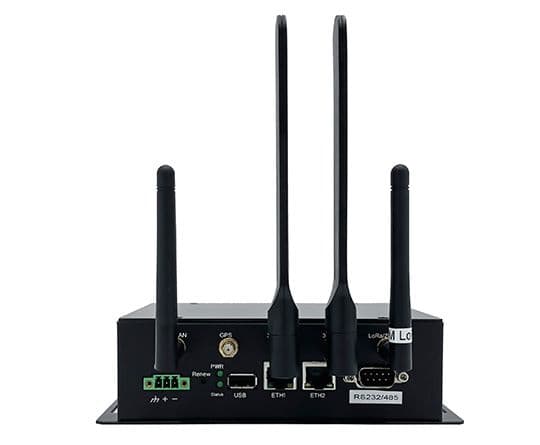

G335 Multi-RF Edge Computing Gateway

Features

◆  TI, AM335x, ARM Cortex-A8, 32‑Bit, 1GHz

◆  Low-consumption, high-cost performance

◆  Ample industrial interfaces

◆  Wide input voltage range

◆  Wired and wireless network accesses

◆  Multiple industrial protocols supported for communication withfield PLCs, etc.

◆  MQTT protocol supported to provide broad access to IoT cloud platforms

◆  Local edge computing supported

◆  C/C++/Python/Node-Red/Node JS supported

◆  Complete industrial design



Description
Specifications
Documentation

Vantron G335 edge computing gateway is a flagship gateway launched to meet the needs of Machine-to-Machine (M2M) communication and IIoT applications in various industrial scenarios. The gateway supports a variety of industrial protocols to allow access by field industrial devices such as PLCs, controllers, sensors, etc. The edge computing functionality helps to achieve data optimization at IoT edge nodes, which reduces the data volume accumulated in the field and the central console. With standard MQTT protocol, the gateway provides broad access to industrial data platforms to facilitate the digital transformation of factories.


The gateway adopts industrial design with guaranteed quality and reliability to offer an ideal solution for your IoT application. It supports a wide range of wireless communication networks, including 4G LTE cellular network, WLAN, GPS, Zigbee, LoRa, and Bluetooth. Meanwhile it may interface with Vantron BlueSphere GWM for remote and centralized management that eases the efforts of users and reduces device shutdown, therefore facilitating the digital transformation of factories.

Specifications
CPU
TI, AM335x, ARM Cortex-A8, 32‑Bit, 1GHz
Memory
512MB
Storage
16GB 1 x Micro SD card
Ethernet
2 x Giga Ethernet Port (PoE supported on one port)
4G LTE
1 x PCIe slot for 4G cellular module, CAT M/ CAT 4
Wi-Fi & Bluetooth
Wi-Fi 802.11 a/b/g/n/ac + BT 5.0
Local RF module
LoRa/ZigBee module (Optional)
GPS
GPS module (Optional)
Serial port
1 x RS232, for debugging 1 x RS232/RS485 (DB9) 1 x RS232/RS485/RS422 (Reserved on terminal block)
USB
1 x USB 2.0 Type-A
GPIO
2 x Input, 2 x Output, isolated (Optional)
Alarm
1 x Buzzer alarm (Optional)
Button
1 x Reset button 1 x Renew button
LED indicator
1 x Power indicator 1 x Status indicator
Dimensions
155 x 105 x 50mm (Enclosure only) 177 x 105 x 50mm (With bracket)
Enclosure
Metal
Installation
Wall mounting/Panel mounting/DIN rail mounting
IP rating
IP30
Cooling mode
Fanless
Input
6-36V DC, Over-current protection, Anti-reverse protection
Consumption
1.8W Average (Without 4G/GPS/Lora/WLAN/BT)
Terminal
3-pin 3.81mm terminal
OS
Vantron OS
SDK
Available
Network management
SNMP v1/v2c/v3
Device management platform
Vantron BlueSphere
Third-party platform
MQTT
IPK import
Supported
Interface language
Chinese and English (Default) Other languages (Optional)
Data security
OpenVPN, L2TP, PPTP, IPSec
Configuration mode
Local, remote
Upgrade
Local, OTA update
Network guide
One-key configuration of LTE, Wi-Fi, and Ethernet
Traffic statistics
Per month/week/day
IP application
Ping, Traceroute, Nslookup
IP Routing
Static routing
NAT
Supported
Link detection
Heartbeat detection, automatic reconnection
Network reliability
Failover supported, link backup between Ethernet, Wi-Fi and 4G/LTE
Multi-level permission
Supported
Industrial protocol
Modbus TCP, Modbus RTU, EtherNet/IP, ISO-on-TCP, CC-link, etc.
Edge computing
JavaScript, MicroPython
Development language
C/C++/Python/Node-Red/Node JS
Temperature
Operating: -20℃ ~ +70℃ (Optional: -40℃ ~ +85℃) Storage: -40℃~+85℃
Humidity
RH 5%-95% (Non-condensing)
Certification
UL, CE, FCC, PTCRB
Product Name
G335 Low-consumption Edge Computing Gateway
Documentation
G335 Edge Computing Gateway Datasheet
G335 User Manual
