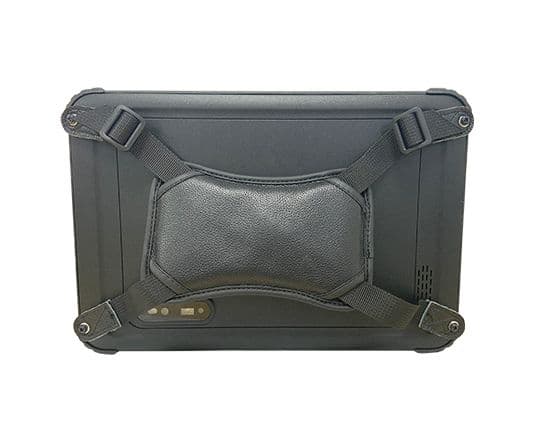

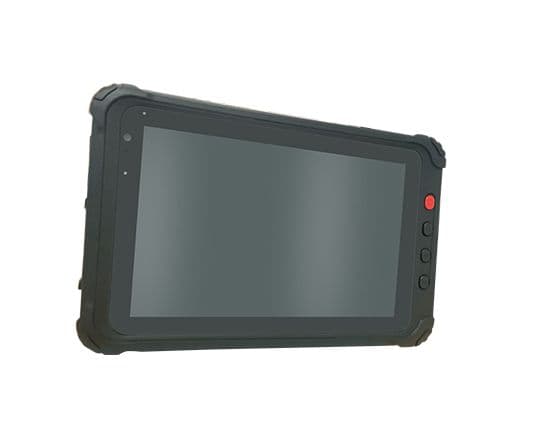

M10R1 10" Windows Rugged Indutrial Tablet

M10R1 10" Windows Rugged Indutrial Tablet

Features

◆ Automotive-grade chip
◆ Front & rear cameras, and built-in barcode scanner
◆ IPS panel, Resolution: 1920 x 1200, Brightness: 600 nits
◆ 6000mAh Battery, lasting for 8 hours
◆ IP65, 1.5m drop test to concrete on 6 sides
◆ Pogo pin for flexible expansion
◆ USB Type-C, 65W PD supported

Description

Specifications

Documentation

Vantron M10R1 high-performance rugged industrial tablet was designed for industrial applications, especially in healthcare, plant walk-down, law enforcement patrol, and prison automation. The device is powered by Intel® ATOM multi-core processor with a 10-inch full HD capacitive touch screen to offer excellent human-machine interaction experience.

While featuring flexible specification options, large capacity battery, and out-performing power management system, it is fully rugged with IP65 water resistance and 1.5m drop resistance design to protect the device from damage in the event of fluid spill or accident drop. Its high-brightness display ensures optimal outdoor performance and the large capacity battery is more than enough to get through a day of work.

Specifications

CPU

Intel® ATOM x5-E3940

Memory

8GB, LPDDR4

Storage

64GB, Optional: 128GB

Wi-Fi & Bluetooth

Wi-Fi 802.11 b/g/n/a/ac + BT 5.1

GNSS

GPS + BeiDou + GLONASS + Galileo, AGPS supported, built-in antenna

Display

Resolution: 1920 x 1200, Brightness: 600 nits, Contrast Ratio: 1000:1, Viewing Angle: Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total

10-point G + G PCAP touch screen, Finishing process: Toughening，Surface hardness: 6H,

Camera

Front camera 2MP, fixed focus, with working indicator, Rear camera 8MP, auto focus, with flash

USB

1 x USB Type-A 3.0, 1 x USB Type-C

Built-in barcode scanner

Bar width > 8Mil Pixel > 640 x 480

Extended display

1 x Mini HDMI

Pogo pin

2 x 10 pin, supporting CAN J1939, USB 3.0, 100Mbs Ethernet RJ45, Audio Jack, RS232/RS485 Combo, TJA1100HN 100Base-T1 PHY

SIM card

1 x Nano SIM card slot

Security

1 x TPM 2.0

Light sensor

1 x Light sensor

Gyro-sensor

1 x Gyro-sensor

G-Sensor

1 x G-sensor

Button

1 x Power button 3 x Function button

LED

1 x System status / Battery condition

Windows 10 ITSC 2019, Linux

Input

USB Type-C power input (20V adapter required)

Battery

6000mAh/7.6V, 8 hours working time*

Material

PC, ABS

Dimensions

294mm x 192mm x 30mm

Net weight

1500g

IP rating

IP65

Drop test

MIL-STD-810H, drop from 1.5m onto a plywood surface over concrete on 6 sides

Vibration

MIL-STD-810H: Method 516.8, Procedure I Operating: 20G, Idle: 40G

Thermal shock

MIL-STD-810H: Method 503.7 Operating: -20°C ~+60°C, Idle: -30°C ~+70°C

Solar radiation

MIL-STD-810H: Method 505.7

Liquid pollution

MIL-STD-810H: Method 504.3

Temperature

Operating: -20°C ~+60°C Storage: -30°C ~+70°C

Humidity

RH 5%-95% (Non-condensing)

Certification

MIL-STD-810H FCC (FCC Part 15 Class B) ISED ESD (Contact: ±4KV, Air: ±8KV)

Product Name

M10R1 10" Automotive-grade Rugged Industrial Tablet
