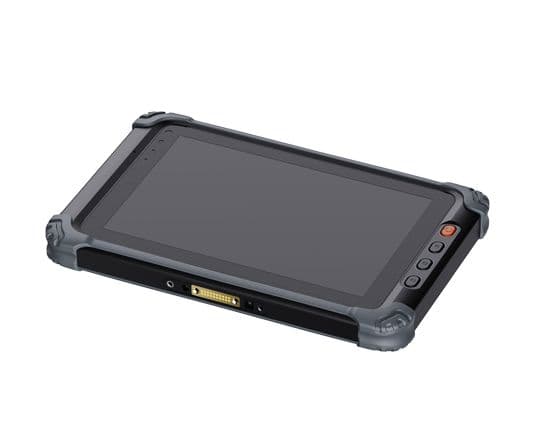

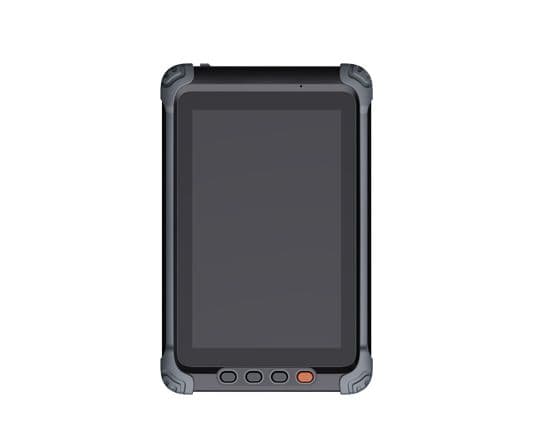

M08R1 8" Android/Yocto Rugged Indutrial Tablet

M08R1 8" Android/Yocto Rugged Indutrial Tablet

Features

◆ Automotive grade chip

◆ Front & rear cameras, and built-in barcode scanner

◆ IPS panel, Resolution: 1920 x 1080, Brightness: 450 nits, Sunlight readable

◆ 6000mAh Battery, lasting for 8 hours

◆ IP65 water-proof, 1.5m drop test onto concrete on 6 sides

◆ Pogo pin for flexible expansion

◆ USB Type-C, 65W PD supported

Description

Specifications

Documentation

Vantron M08R1 high-performance rugged industrial tablet was designed for industrial applications, especially in healthcare, plant walk-down, law enforcement patrol, and prison automation. The device is Android-based, powered by NXP ARM multi-core processor with an 8-inch full HD capacitive touch screen to offer excellent human-machine interaction experience.

While featuring flexible specification options, large capacity battery, and out-performing power management system, it is fully rugged with IP65 dust and water resistance design and durably made to withstand the 1.5m drop test onto concrete surface. Its sunlight readable display ensures optimal outdoor performance and the large capacity battery is more than enough to get through a day of work.

Specifications

CPU

NXP IMX8X Quad-core ARM Cortex-A35

Memory

4GB LPDDR4 ( Optional: 8GB )

Storage

64GB ( Optional: 128GB )

Cellular

2G, 3G, 4G

GNSS

GPS + BeiDou + GLONASS + Galileo

Display

8” 16:9 IPS panel, sunlight readable ; Resolution: 1920 x 1080 ; Brightness: 450 nits ; Contrast Ratio: 800:1 ; Viewing Angle: Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total

5-point G + G PCAP touch screen Surface hardness: 6H Finishing process: Toughening

Camera

Front camera 5MP, fix focus, with working indicator Rear camera 5MP, auto focus, with flash

Audio

1 x 8Ω/1w speaker 1 x 3.5mm combo audio jack, debugging supported 1 x Mic

USB

1 x USB Type-A 3.0 1 x USB Type-C

Built-in barcode scanner

Bar width > 7Mil Pixel > 640 x 480

Pogo pin

2 x 10 pin, supporting CAN J1939, USB 3.0, 100Mbs Ethernet RJ45, Audio Jack, RS232/RS485 Combo, TJA1100HN 100Base-T1 PHY

SIM

1 x Nano SIM card slot

1 x TF card slot (up to 128GB)

Security

1 x TPM 2.0

Light sensor

1 x Light sensor

Gyro-sensor

1 x Gyro-sensor

G-Sensor

1 x G-sensor

LEDButton

1 x Power button 3 x Function button

LED

1 x System status / Battery condition

Android 11 / Linux Yocto + QT

Input

USB Type-C power input, 5V/2A DC & 9V/2A DC, 65W PD supported

Battery

6000mAh/7.7V, 8 hours working time*

Material

PC, ABS

Dimensions

154.5mm x 240.9mm x 25.71mm

Net weight

750g

Drop test

MIL-STD-810H, drop from 1.5m onto a plywood surface over concrete on 6 sides

Vibration

MIL-STD-810H: Method 516.8, Procedure I Operating: 20g, Idle: 40g

Thermal shock

MIL-STD-810H: Method 503.7 Operating: -20°C ~+60°C, Idle: -30°C ~+70°C

Solar radiation

MIL-STD-810H: Method 505.7

Liquid pollution

MIL-STD-810H: Method 504.3

Temperature

Operating: -20°C ~+60°C Storage: -30°C ~+70°C

Humidity

RH 5%-95% (Non-condensing)

Certification

MIL-STD-810H FCC (FCC Part 15 Class B) ISED ESD (Contact: ±4KV, Air: ±8KV)

Product Name

M08R1 8" Automotive-grade Rugged Industrial Tablet

Documentation

Vantron M08R1 8” Rugged Industrial Tablet Datasheet - V2.3.pdf

M08R1 8-inch Industrial Rugged Tablet Datasheet
