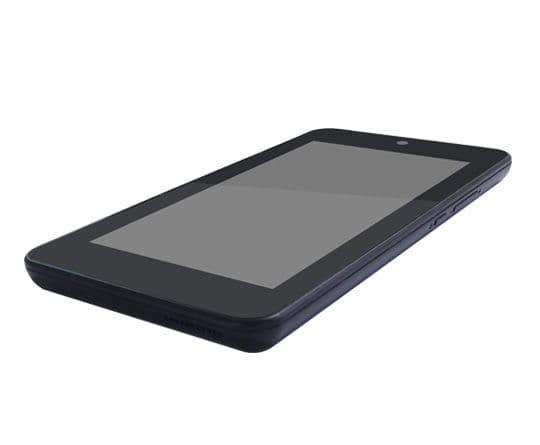

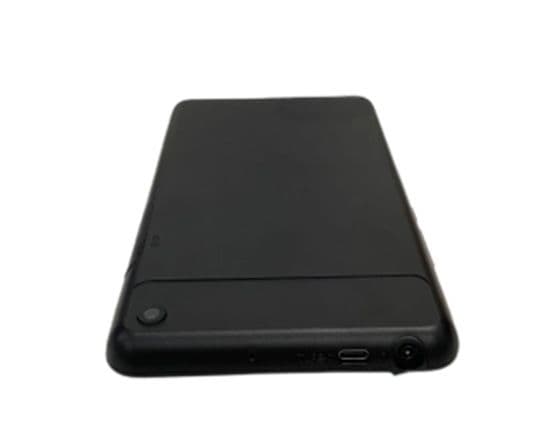

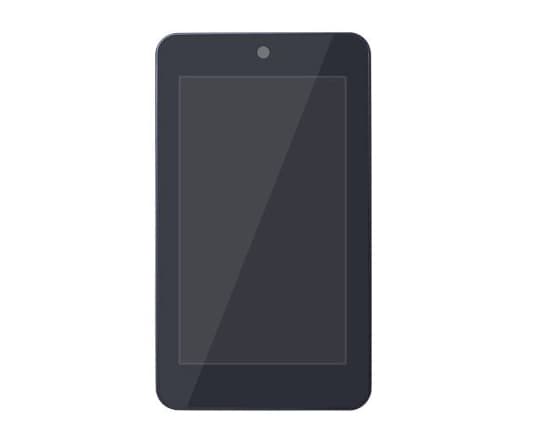

M07 7" Android General-purpose Industrial Tablet
M07 7" Android General-purpose Industrial Tablet
M07 7" Android General-purpose Industrial Tablet
M07 7" Android General-purpose Industrial Tablet
M07 7" Android General-purpose Industrial Tablet
M07 7" Android General-purpose Industrial Tablet
M07 7" Android General-purpose Industrial Tablet
M07 7" Android General-purpose Industrial Tablet

M07 7" Android General-purpose Industrial Tablet

◆ Android 10
◆ 2GB Memory and 16GB Storage
◆ Front camera: 2MP, fixed focus ; Rear camera: 2MP, fixed focus
◆ 2400mAh Battery (Up to 4000mAh)
◆ 7" IPS TFT LCD, Resolution: 1024 x 600, Brightness: 280 cd/m2
◆ Wi-Fi 802.11 b/g/n + BT 4.0 (expandable)
◆ USB Type-C, Charging & data transmission supported

Description
Specifications
Resources

Vantron M07 high-performance general-purpose industrial tablet is powered by a multi-core processor with a 7-inch capacitive touchscreen to offer excellent human-machine interaction experience. It runs Android system and has up to 2GB memory and 16GB storage to ensure high performance.

M07 supports cloud connectivity to Vantron BlueSphere device management platform for centralized management. In addition, it features flexible specification options, large battery capacity and outperforming power management system to meet different requirements for industrial application, making it a good choice of handheld device for application in medical terminals, self-service retailing system, multi-media education, libraries, and laboratories.

Specifications
Product Name
M07 7" Android General Purpose Industrial Tablet
CPU
Quad core, ARM Cortex-A35, 1.3GHz (Max)
GPU
Dvalin
Memory
2GB
Storage
16 GB 1 x Micro SD slot, up to 128GB
OTA tool
BlueSphere OTA
Device management platform
BlueSphere MDM
Certification
FCC (Part 15 class B), ESD (contact: ±4KV and air: ±8KV)
Humidity
Operating: RH 20%-80% Storage: RH 20%-80%
Temperature
Operating: 0℃~+45℃, Storage: -20℃~+45℃
Dimensions
202.7mm x 113.2mm x 13.9mm
Battery
Single-cell Li-ion battery: 2400mAh/3.7V (Optional: 4000mAh/3.7V)
Input
Type-C USB power input, 5V/2A DC
OS
Android 10
RTC
Supported
G-Sensor
Supported
Button
1 x Power on/off, 1 x Volume -/+
USB
1 x USB 2.0 Type-C (USB OTG supported)
Audio
1 x 3.5mm combo audio jack 1 x 0.8W/8Ω speaker 1 x Mic
Camera
Front camera: 2MP, fixed focus; Rear camera: 2MP, fixed focus
TP
5-point capacitive touch screen
Display
7" IPS TFT LCD, Resolution: 1024 x 600, Brightness: 280 cd/m2
Wi-Fi & Bluetooth
Wi-Fi 802.11 b/g/n + BT 4.0 (Optional: Wi-Fi 802.11 ac/a/b/g/n + BT 5.0)
