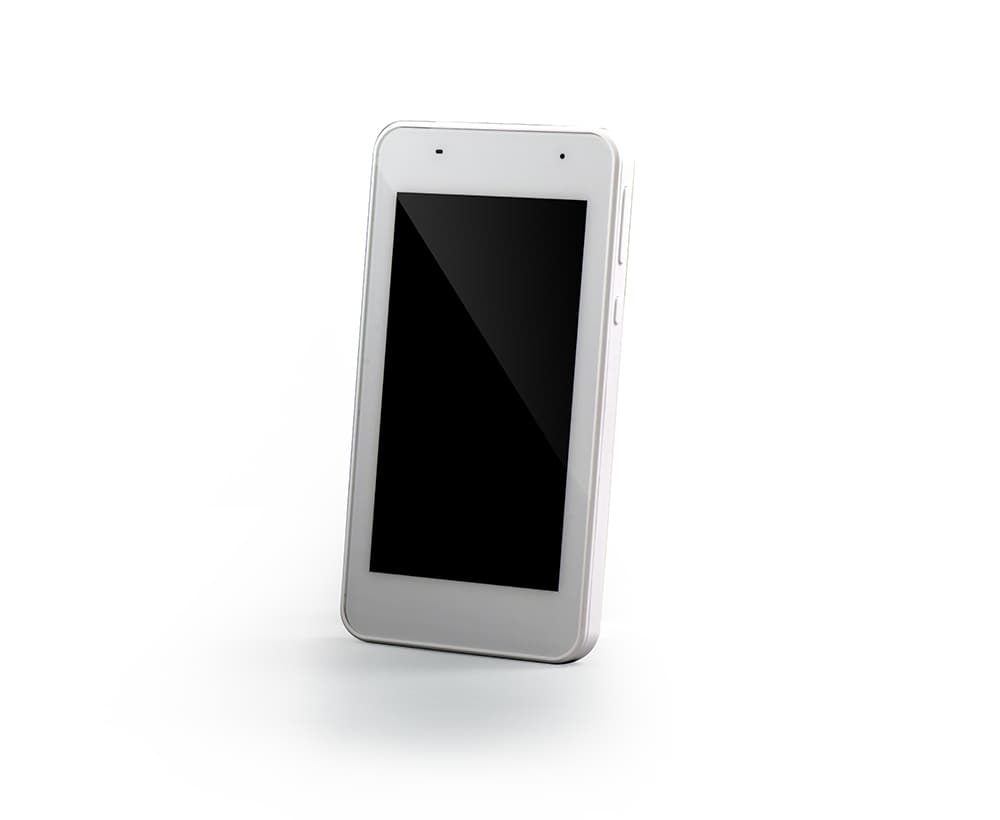

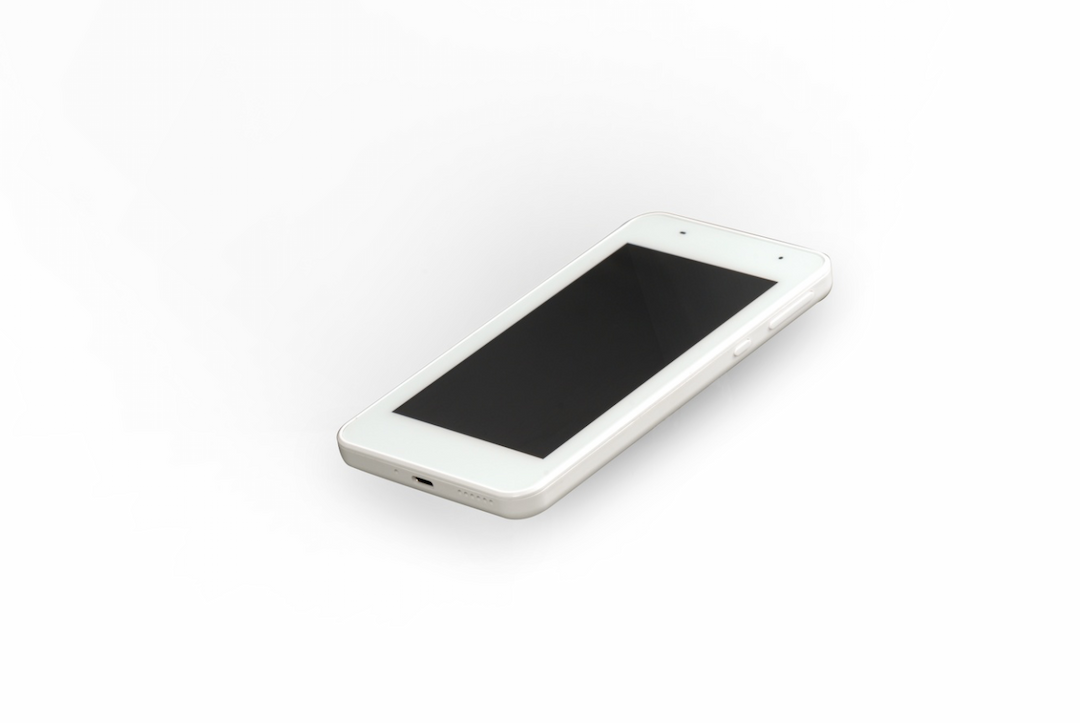

M05 5" Android General-purpose Industrial Tablet

M05 5" Android General-purpose Industrial Tablet

Features

◆ Android 10

◆ 2GB Memory and 16GB Storage

◆ Rear camera, 2MP, fixed focus

◆ 2400mAH Battery

◆ 5" TFT LCD, Resolution: 480 x 854, Brightness: 300 cd/m2

◆ Wi-Fi 802.11 b/g/n + BT4.0 (expandable)

◆ USB Type-C, Charging & data transmission supported

Description

Specifications

Documentation

Vantron M05 high-performance general-purpose industrial tablet is powered by MediaTek multi-core processor with a 5-inch capacitive touchscreen to offer excellent human-machine interaction experience. The industrial tablet runs Android system and supports cloud connectivity to Vantron BlueSphere device management platform for centralized management, allowing businesses to manage devices and streamline operations more easily and efficiently.

M05 features flexible specification options, excellent cost performance, and out-performing power management system. M05 is very suitable to meet different requirements for application in retail businesses, multi-media education, transportation, laboratories, and libraries.

Specifications

CPU

MediaTek MT8362, Quad core, ARM Cortex-A35, 1.5 GHz (Max.)

GPU

GE8300

Memory

2GB

Storage

16 GB (Optional: 64 GB) 1 x Micro SD slot, up to 128GB

Wi-Fi & Bluetooth

Wi-Fi 802.11 b/g/n + BT 4.0 (Optional: Wi-Fi 802.11 ac/a/b/g/n + BT 5.0)

Display

5" IPS TFT LCD Resolution: 480 x 854 Brightness: 300 cd/m2

Camera

Rear camera: 2MP, fixed focus

Audio

1 x 3.5mm combo audio jack 1 x 0.8W/8Ω speaker 1 x Mic

USB

1 x USB 2.0 Type-C (USB OTG supported)

Button

1 x Power on/off 1 x Volume -/+

Light sensor

Supported

G-Sencer

Supported

RTC

Supported

Battery

Single-cell Li-ion battery: 2400mAh/3.7V

Dimensions

151.6mm x 81.4mm x 11.5mm

Operation system

Android 10

IP rating

IP4X

Temperature

Operating: 0℃~+45℃ Storage: -20℃~+60℃

Humidity

Operating: RH 20%-80% Storage: RH 20%-80%

Certification

FCC (Part 15 class B) ESD (Contact: ±4KV, Air: ±8KV)

Product Name

M05 5" Android General-purpose Industrial Tablet

Documentation

Vantron M05 5“ General-purpose Industrial Tablet Datasheet - V2.4.pdf

M05 Industrial Tablet Datasheet

M05 Industrial Tablet User Manual
