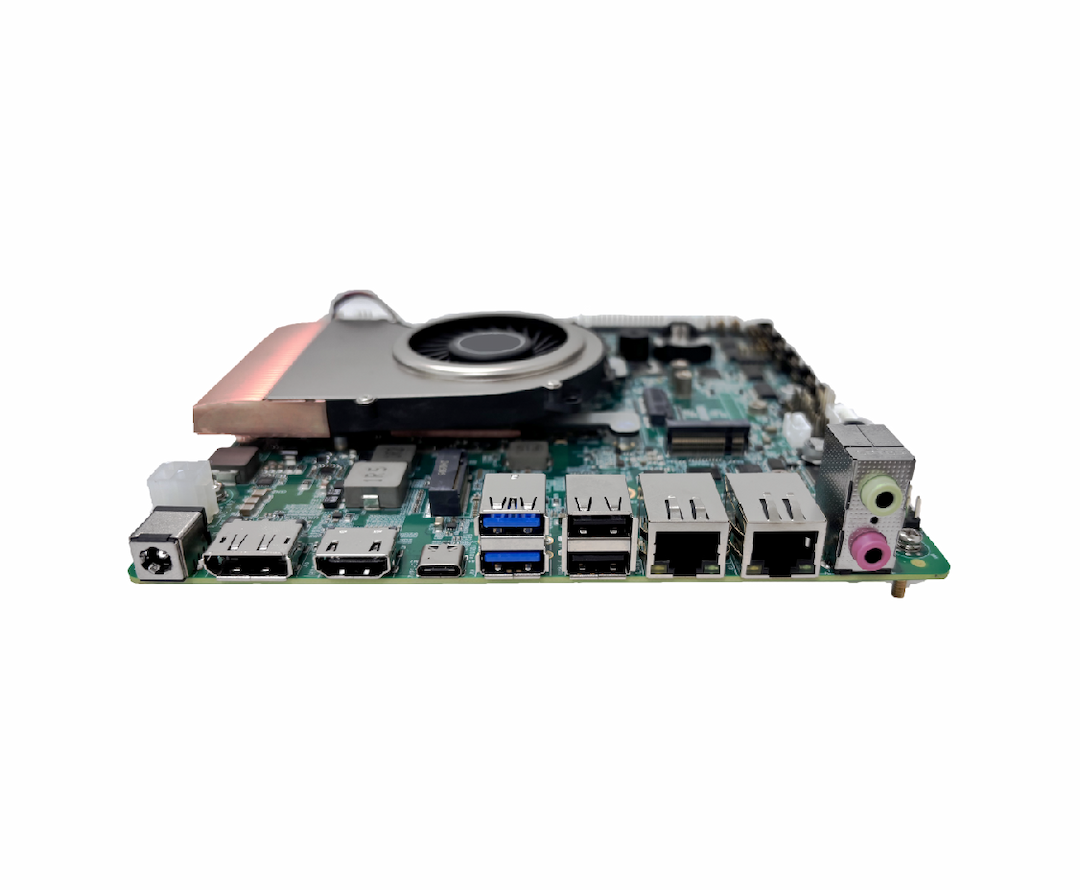

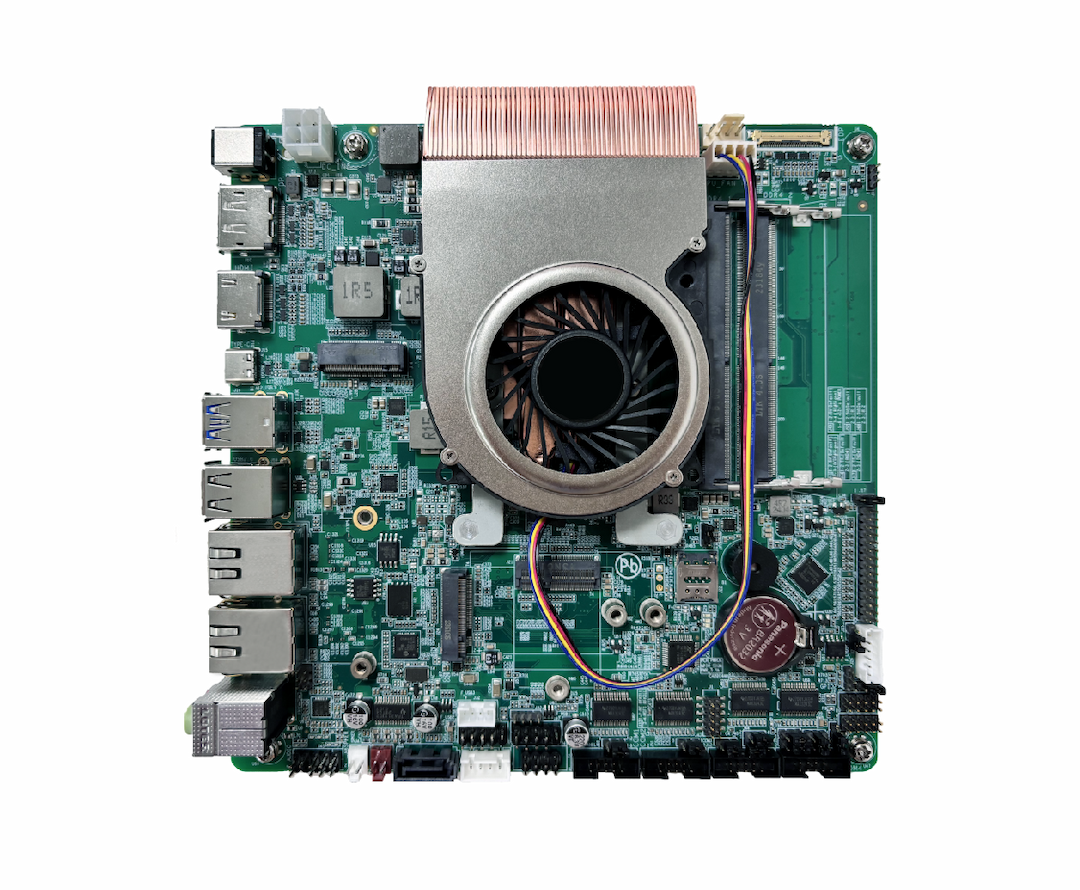

VT-MITX-TGL TigerLake X86-based Single Board Computer

Features

◆ 11^th Gen Intel^® Core™ U-Series i3-1115G4 processor

◆ Windows 10/Linux operating system

◆ 2 x DDR4 SO-DIMM, up to 64 GB

◆ Rich interfaces, flexible expansion

◆ High-definition video encoding and decoding

◆ PoE optional

◆ RTC + Watchdog

◆ USB 3.1 & USB 2.0

◆ Wide temperature range supported

Description

Specifications

Documentation

VT-MITX-TGL Single Board Computer is in line with international industry size standards. It runs Windows 10 with the latest 11th Gen Intel® Core™ processor that combines best-in-class technologies to offer the best user experience. It supports high-definition video encoding and decoding to provide outstanding visual experience. Better yet, it provides rich interfaces and customer expansion options to meet varying application scenarios including smart retail, self-service terminals, industrial automation, intelligent medical health, and digital media.

Featuring high flexibility and high performance, the board could work under extreme environments with extended temperatures ranging from -40℃ to +85℃, making it a reliable solution for industrial applications.

Specifications

CPU

11th Gen Intel® Core™ U-Series i3-1115G4/ i5-1155G7/ i7-1195G7

Memory

2 x DDR4 SO-DIMM socket, 3200MHz, up to 64GB

Storage

1 x SATA 3.0 Expandable by an M.2 M-Key slot

Communication

Ethernet: 2 x RJ45, 10M/100M/1000M Base-T (2 x Intel® 1Gbps PCIe controller); 4G/5G: Optional ( expansion by M.2 B-Key); Wi-Fi & Bluetooth: Optional ( expansion by M.2 B-Key)

Graphics

Intel® UHD Graphics

Display

1 x HDMI: Resolution up to 4096x2160@24Hz; 1 x DP: Resolution up to 4096 x 2160 @24Hz; 1x eDP: Resolution up to 4096x2160@60Hz; 1 x LVDS with backlight control: resolution up to 1920 x 1200 @60Hz

Audio CODEC

Realtek® 5.1 channel HDA Codec

Audio interface

1 x Mic/Line-out 2 x Speaker connector 1 x Headphone jack 1 x Microphone jack

Serial

2 x RS232 2 x RS232/RS422/RS485

USB

USB 2 x USB 2.0 Type-A 2 x USB 3.0 Type-A 1 x USB 3.0 Type-C 3 x Built-in USB 2.0

GPIO

16 x GPIO

SMBUS

1 x SMBUS header

M.2

1 x M.2 B-Key (3042/3052, PCIe x 1 / USB 3.1 for 4G/5G) 1 x M.2 M-Key (2242/2280, PCIe x 4 / SATA/NVMe) 1 x M.2 E-Key (2230, PCIe x 1 / USB 2.0/CNVi)

SIM

1 x SIM card holder (connected to M.2 B-Key)

BIOS

AMI UEFI BIOS with 256 Mb SPI Flash

H/W monitor

Voltages & temperatures

RTC

Processor integrated RTC

Watchdog

Programmable WDT to generate system reset events

Security (optional)

FTPM supported

Front panel header

1 x Reset Button, HDD LED & External Speaker 1 x Power Button, Power LED & SMBUS 1 x M.2 B-Key activity LED 1 x M.2 E-Key activity LED

Indicator

1 x Standby LED (Yellow, onboard) 1 x Power LED (Green, onboard)

Fan/fanless

2 x Standard fan connector; 1 x Heat sink

Input

12V~36V DC (1 x 4-pin power header, 1 x Power jack)

Operating system

Windows 10 IoT, Linux (support by request)

Dimensions

170 x 170mm

Temperature

Operating: 0℃~+60℃ (Optional: -40℃~+85℃) Storage: -20℃~+75℃ (Optional: -55℃~+85℃)

Certification

CCC, UL, FCC (Part 15 class B), ESD (contact: ±8KV and air: ±12KV)

Product Name

VT-MITX-TGL X86-based Single Board Computer

Documentation

VT-MITX-TGL Single Board Computer Datasheet - V4.1.pdf

VT-MITX-TGL Industrial Motherboard Datasheet

VT-MITX-TGL Single Board Computer User Manual- V1.4.pdf

VT-MITX-TGL Industrial Motherboard User Manual
