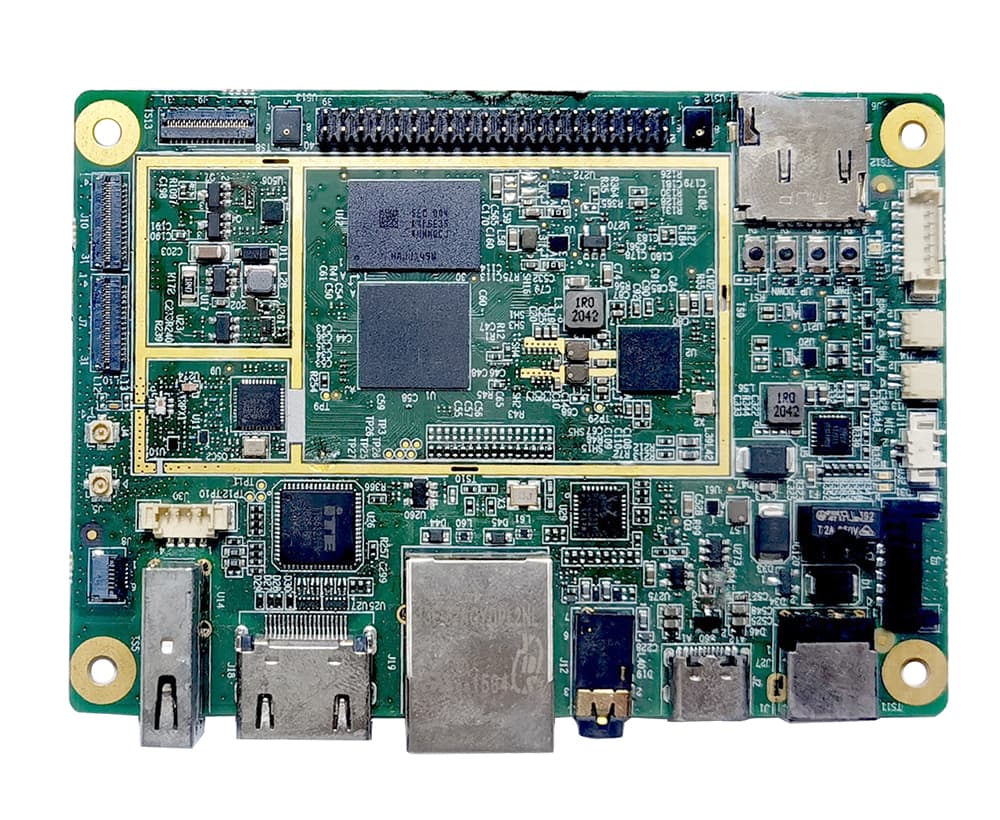

VT-SBC-G350 MT8365 ARM-based Single Board Computer

VT-SBC-G350 MT8365 ARM-based Single Board Computer

◆ Android 10 operating system

◆ Up to 4GB LPDDR4-3200

◆ Rich interfaces, flexible expansion

◆ Wi-Fi & BT/ETH/GNSS for communication

◆ High-definition video encoding and decoding

◆ G sensor

◆ RTC & watchdog

◆ USB 2.0 & USB 3.0

◆ Wide temperature range supported

Description

Specifications

Documentation

VT-SBC-G350 Single Board Computer features a thinner and smaller form factor that is easy to integrate. It is powered by MTK® MT8365 (G350) processor, which integrates a fast 2GHz quad-core ARM Cortex-53 CPU and a high-performance ARM Mali-G52 GPU to deliver powerful Edge AI processing with extremely low power consumption. The board supports up to 13MP high-definition camera, which, combined with the high-definition video encoding and decoding technology, provides outstanding visual experience. Better yet, it provides rich on-board interfaces and customer expansion options to meet different application scenarios including smart retail, self-service terminals, industrial automation, intelligent medical health, and digital media.

Featuring high flexibility and high performance, the board could work under extreme environments with extended temperatures ranging from -20℃ to +60℃, making it a reliable industrial IoT solution.

Specifications

CPU

MTK MT8365 (I350), ARM Cortex-A53, Quad core 2.0GHz (Max)

GPU

Mali-G52, 3D graphic accelerator, capable of processing 57.6 GFLOPS and 1600M pixel/s, 800MHz

Memory

2GB LPDDR4-3200, up to 4GB

Storage

16GB eMMC 5.1, up to 64GB 1 x Micro SD slot (SDIO 3.0) 2Kb EEPROM

PMIC

MT6390

Ethernet

1 x RJ45,10/100Mbps, RTL8201 (Ethernet PHY), not for simultaneous use with HDMl

Wi-Fi & BT

Wi-Fi 802.11 a/b/g/n/ac + BT 5.0

GNSS

GPS + Glonass + Beidou/Galileo

Display

1 x 4-lane MIPI DSI, 1920 x 1080 1 x HDMI (Type-A), up to 1920 x 1080 (Not for simultaneous use with RJ45)

Camera

2 x 4-Lane MIPI CSI, 13MP, 1080P/60fps video decoder

Audio

1 x A-Mic to PMIC, 2 x D-Mic to AP (CPU), noise reduction 1 x 3.5mm combo audio jack 2 x Speaker connector

Serial

2 x UART for communication, 1x UART for debugging

USB

1 x USB 2.0 Type-C 1 x USB 2.0 Type-A (1A output)

GPIO

4 x GPIO

RTC

Watchdog

Supported by CPU+PMIC

Debug

2 x 5 x 1.25mm JTAG

Bus

1 x I2 C for TP 1 x I2 C for external communication

Button

1 x Reset button 1 x ON/OFF button 2 x Volume -/+ button

G-sensor

3-Axis G-sensor

Input

12V DC

Operating system

Android 10

Dimensions

100mm x 75mm

Cooling mode

Fanless

Temperature

Operating: -20℃~+60℃ Storage: -40℃~+85℃

Humidity

RH 5%-95%

Certification

FCC (part 15 class B) ESD (contact: ±4KV and air: ±8KV)

Product Name

VT-SBC-G350 ARM-based Single Board Computer

Documentation

VT-SBC-G350 Single Board Computer Datasheet

VT-SBC-I350 Single Board Computer User Manual
