VT-SBC-SMARC-8MP i.MX8MPlus ARM-based Computer-on-Module
VT-SBC-SMARC-8MP i.MX8MPlus ARM-based Computer-on-Module
VT-SBC-SMARC-8MP i.MX8MPlus ARM-based Computer-on-Module
VT-SBC-SMARC-8MP i.MX8MPlus ARM-based Computer-on-Module
VT-SBC-SMARC-8MP i.MX8MPlus ARM-based Computer-on-Module
VT-SBC-SMARC-8MP i.MX8MPlus ARM-based Computer-on-Module

VT-SBC-SMARC-8MP i.MX8MPlus ARM-based Computer-on-Module

Features

◆ NXP i.MX8M Plus processor

◆ Linux operating system

◆ 2GB LPDDR4

◆ Multiple displays

◆ Rich interfaces, flexible expansion

◆ Ethernet/Wi-Fi & BT

◆ USB 2.0 & USB 3.0

◆ Wide temperature range supported

Description
Specifications
Documentation

Overview

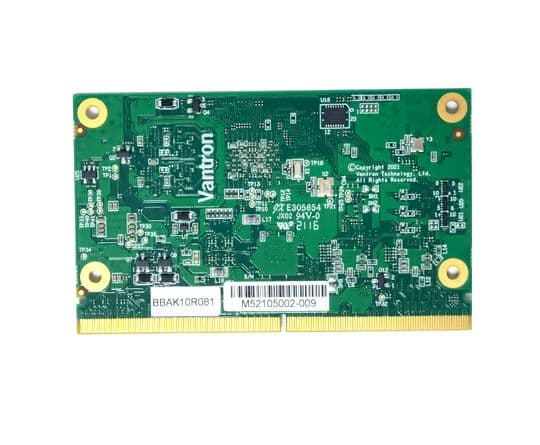

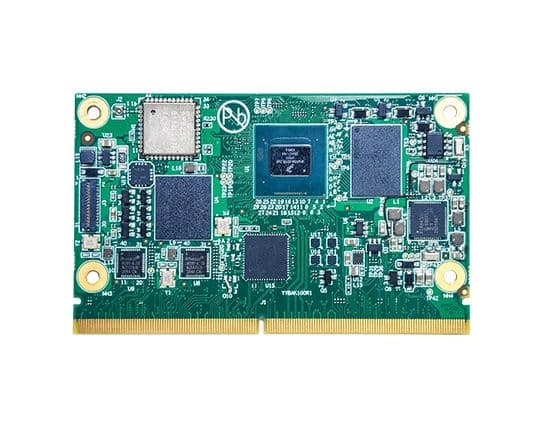

The VT-SBC-SMARC-8MP is an ARM-based Computer-on-Module (COM) built on the SMARC form factor, offering high versatility and seamless integration into embedded systems. Powered by the NXP i.MX8M Plus processor, it delivers robust performance, advanced multimedia capabilities, and support for both wired and wireless connectivity. Designed to excel in industrial and IoT applications, the VT-SBC-SMARC-8MP is ideal for scenarios requiring flexible expansion, secure data transmission, and reliable operation in harsh environments.


Technological Advantages

1.Optimized Low-Power Performance
- Powered by the NXP i.MX8M Plus processor, the module provides efficient multi-core performance for a wide range of industrial and IoT applications.
- Equipped with 2GB LPDDR4 memory, it supports fast processing and smooth operation, ensuring responsiveness in data-intensive scenarios.

2.Comprehensive Connectivity
- Features Ethernet, Wi-Fi, and Bluetooth for both wired and wireless networking, ensuring secure and reliable data communication.
- Rich interface options, including USB 2.0 and USB 3.0, enable seamless integration with peripherals and external devices.

3.Industrial-Grade Durability
- Operates reliably in extreme environments, with a temperature range of -20℃ to +70℃ and an optional extended range of -40℃ to +85℃, making it suitable for industrial-grade and outdoor applications.

4.Scalability and Flexibility
- The SMARC form factor and flexible expansion interfaces allow easy customization and integration into diverse embedded systems, catering to specific application requirements.

Application Scenarios

The VT-SBC-SMARC-8MP Computer-on-Module combines high performance, advanced connectivity, and industrial-grade reliability, making it a versatile solution for diverse embedded and IoT applications including smart retail, self-service terminals, industrial automation, intelligent medical health, and digital media.

Specifications
CPU
NXP i.MX8M Plus, ARM Cortex-A53, Dual or Quad core, 1.8GHz-2.0GHz
Memory
2GB LPDDR4
Storage
16GB eMMC 5.1 1 x SDIO
Ethernet
2 x 1000Mbps
Wi-Fi & BT
Wi-Fi 802.11a/b/g/n/ac + BT5.0
Display
1 x MIPI DSI 2 x LVDS 1 x HDMI 2.0a
Camera
2 x MIPI CSI
Serial
1 x UART with CTS/RTS 2 x UART without CTS/RTS
USB
1 x USB OTG 2 x USB 2.0 2 x USB 3.0
GPIO
14 x GPIO
Bus
1 x PCIe 4 x I2C 2 x I2S (for audio) 2 x SPI
RTC
Supported
PWM
1 x PWM
Input
5V DC, Powered by carrier board
Operating system
Linux
Dimensions
82 x 50mm SMARC 2.1
Temperature
Operating: -20℃~+70℃ (Optional: -40℃~+85℃) Storage: -40℃~+85℃
Humidity
5%-95%RH (non-condensing)
Product Name
VT-SBC-SMARC-8MP ARM-based Computer-on-Module
Documentation
VT-SBC-SMARC Carrier Board Datasheet - V1.9.pdf
VT-SBC-SMARC Carrier Board Datasheet
VT-SBC-SMARC-8MP Computer-on-Module Datasheet - V2.1.pdf
VT-SBC-SMARC-8MP Computer-on-Module Datasheet
VT-SBC-SMARC Carrier Board User Manual - V1.0.pdf
VT-SBC-SMARC Carrier Board User Manual
