EPC-610H-H Expandable Medical AI Box PC
EPC-610H-H Expandable Medical AI Box PC
EPC-610H-H Expandable Medical AI Box PC
EPC-610H-H Expandable Medical AI Box PC
EPC-610H-H Expandable Medical AI Box PC
EPC-610H-H Expandable Medical AI Box PC
EPC-610H-H Expandable Medical AI Box PC
EPC-610H-H Expandable Medical AI Box PC

EPC-610H-H Expandable Medical AI Box PC

• 12th/13th/14th Gen Intel® Core processor
• 16GB RAM & 512GB storage, both expandable
• 3 independent displays, up to 4K video output
• Wi-Fi/BT/GbE for network connectivity
• PCIe 5.0 reserved for additional GPU
• IEC 60601 compliant
• Anti-skid feet to ensure device stability
• Windows 10 IoT, Ubuntu 22.04

Description
Specifications
Resources

The EPC-H610 is a medical-grade AI box PC designed specifically for healthcare applications. It supports Intel’s 12th/13th/14th generation Core™processors, providing a wide range of performance choices.

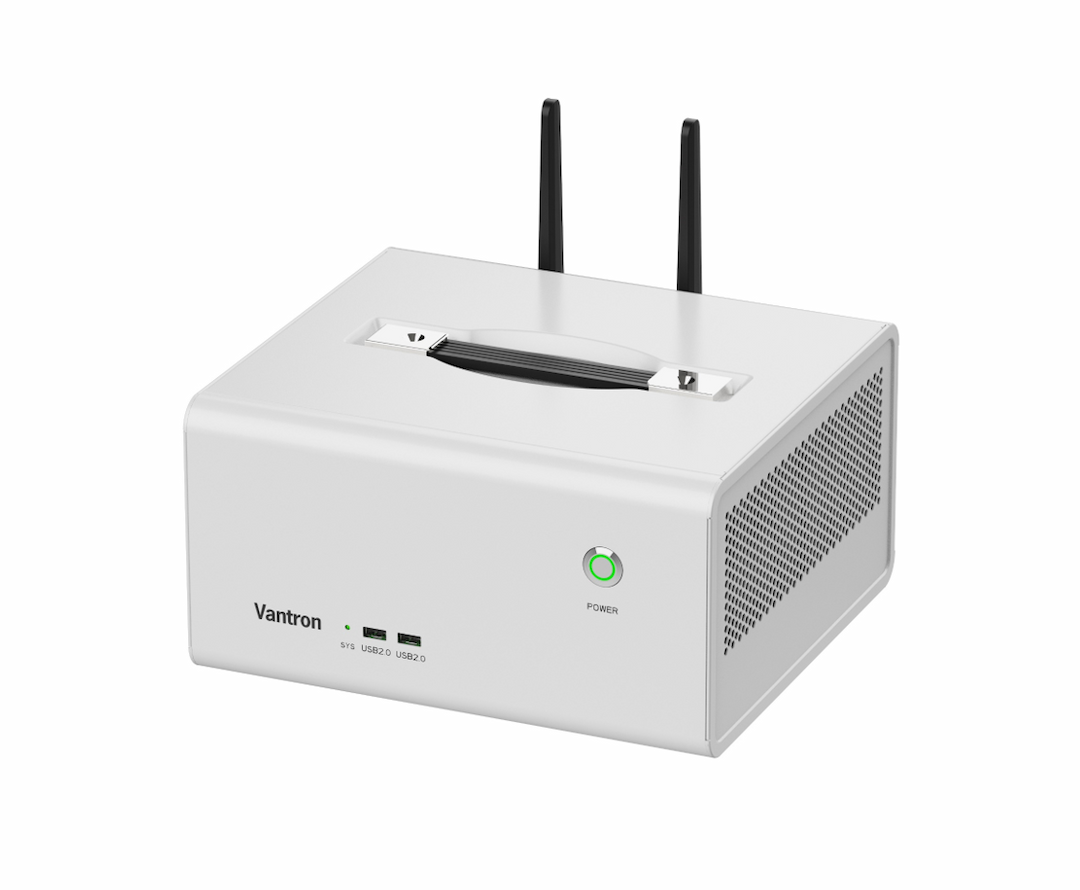

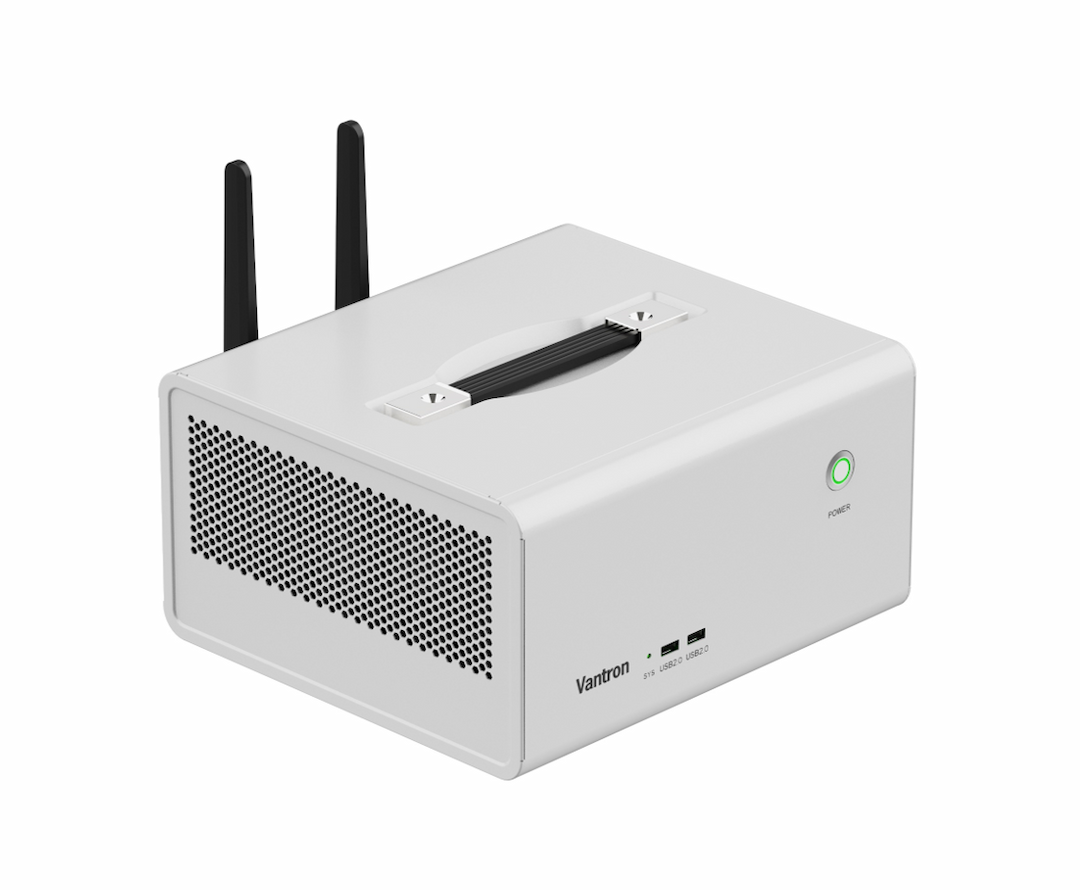

A rich set of ports allows the unit to interface with a variety of medical peripherals, while an internal PCIe for additional AI accelerator carddelivers extra inference horsepower if needed. The entire system is engineered to comply with medical product design principles and industry standards. Featuring a compact form factor with an ergonomically integrated handle, the EPC-H610 ensures effortless mobility in clinical settings. This portability, combined with robust data processing capabilities, allows the unit to serve as a reliable on-site data hub for all types of medical monitoring devices, ensuring seamless data transmission, analysis, and storage in real time.

As a crucial member of Vantron’s EPC product line, the EPC-H610 is part of a comprehensive portfolio dedicated to delivering professional, tailored solutions for the healthcare sector. Backed by Vantron’s proven expertise in industrial computing and IoT technology, it not only meets the immediate operational needs of medical institutions but also scales with future technological advancements, making it the preferred choice for enterprises looking to drive innovation and achieve success in the fast-evolving healthcare industry.

Specifications
Product Name
EPC-610H-H Expandable Medical Edge AI Box PC
CPU
Default: Intel® 14th Gen Core™ i5-14500, 14C 20T, 2.6/1.9GB (Base), 5.0/3.7GB (Turbo) | Processor support: Intel® Desktop 12th/13th/14th Gen Core™ processor
Memory
16GB, up to 96GB (2 x DDR5 SO-DIMM socket)
Storage
512GB, Expansion via 2 x SATA 3.0 supported
Ethernet
2 x RJ45, 2.5Gbps
Wi-Fi & Bluetooth
Optional (IEEE 802.11 a/b/g/n/ax + BT 5.4)
Display
1 x HDMI 2.0b, up to 3840 x 2160 @60Hz | 2 x DP 1.4a, up to 4096 x 2304 @60Hz
Audio
1 x 3.5mm Line in jack | 1 x 3.5mm Line out jack
USB
2 x USB 2.0 Type-A (Front) | 2 x USB 2.0 Type-A (Rear) | 4 x USB 3.0 Type-A
Serial port
1 x RS232, DB9 | 1 x RS232/485, DB9 (software switch)
Antenna
2 x SMA male antenna connector for Wi-Fi and Bluetooth
PCIe
1 x PCIe 5.0 x16 for GPU or AI acceleration card
M.2
1 x M.2 E-Key (2230, PCIe 3.0 x1 /USB 2.0 for Wi-Fi & BT expansion)
RTC
Supported
Watchdog timer
Supported
Security
TPM 2.0
Button
1 x Power button
LED indicator
1 x Status LED
Input
100V AC~240V AC, 50~60Hz
Consumption
~70W (Typical, not including additional GPU)
BIOS
Insyde UEFI BIOS
Operating system
Windows 10 IoT, Ubuntu 22.04
Enclosure material
Sheet metal
Dimensions
300mm x 270mm x 173mm
Weight
6kg
Installation
Desktop (Anti-skid feet provided)
Shock test
IEC 60068-2-64
Heat dissipation
Fan
Temperature
Operating: 0℃~60℃ | Storage: -20℃~70℃
Humidity
5%~95% RH (Non-condensing)
Certification
FCC, CE
