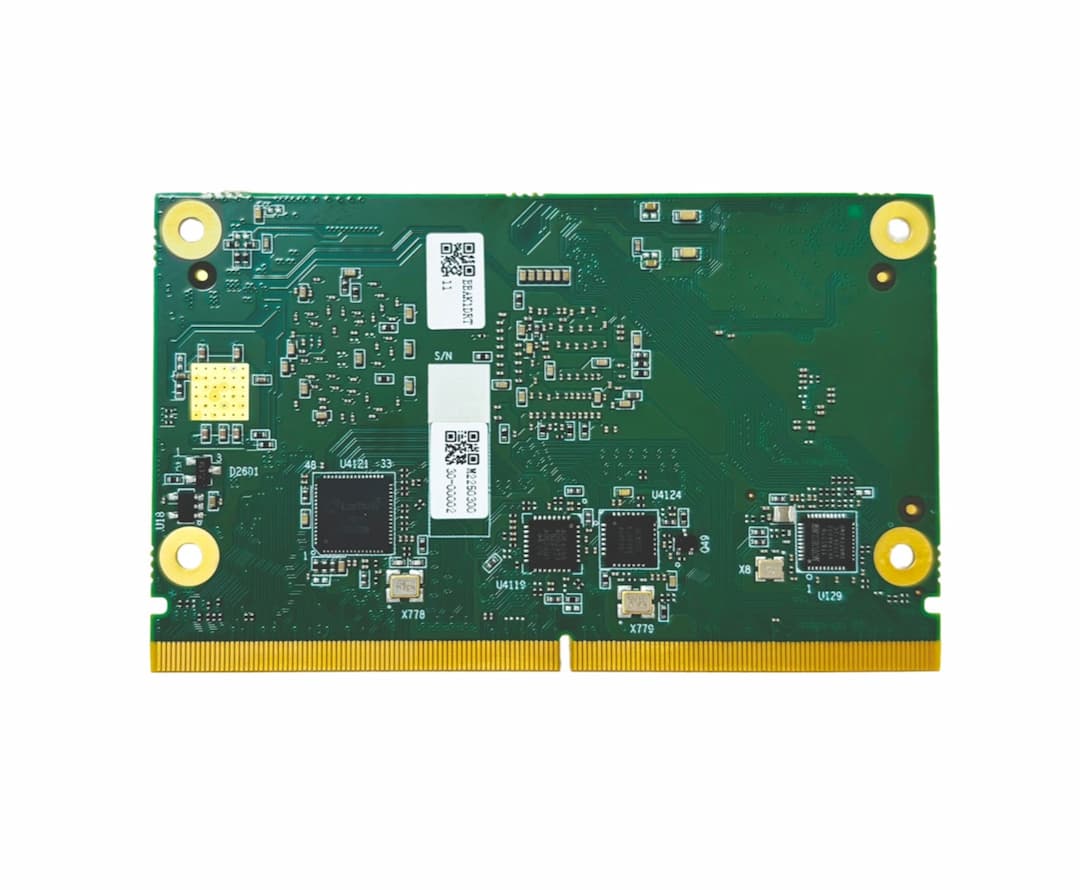

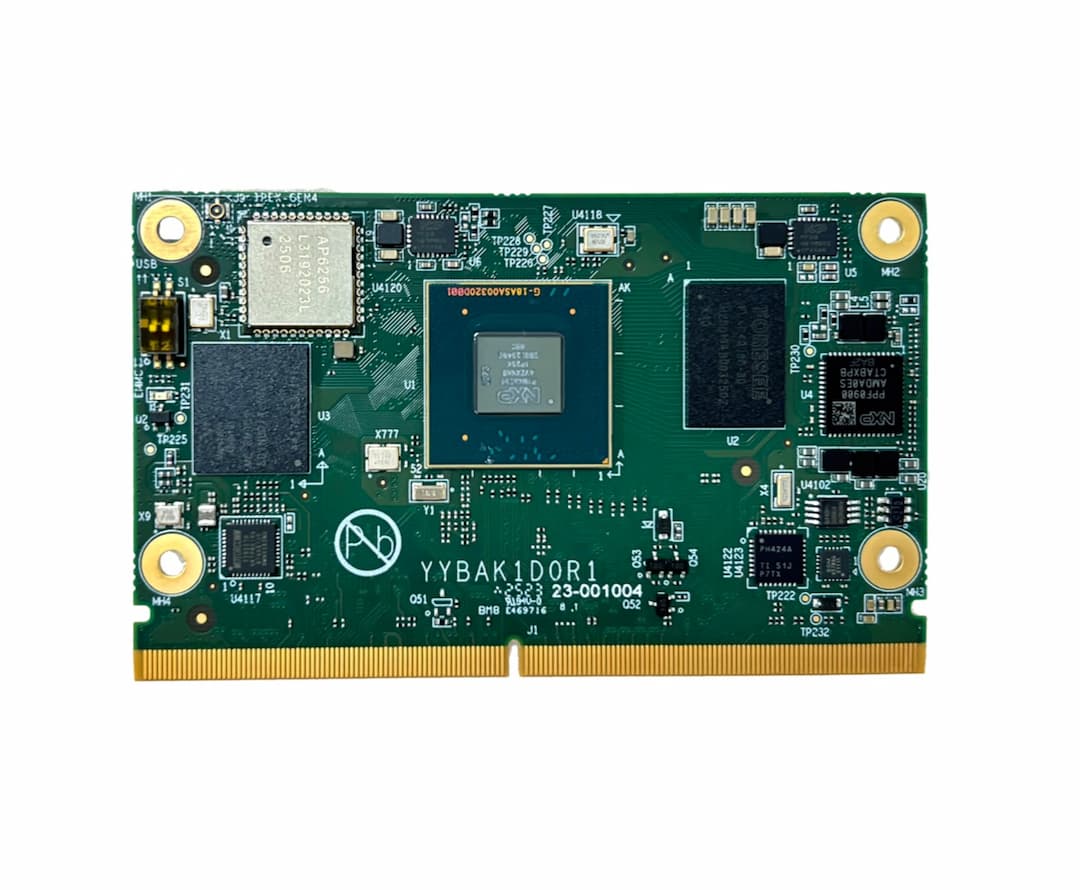

VT-SBC-SMARC-IMX95 i.MX9596 Computer-on-Module
VT-SBC-SMARC-IMX95 i.MX9596 Computer-on-Module
VT-SBC-SMARC-IMX95 i.MX9596 Computer-on-Module
VT-SBC-SMARC-IMX95 i.MX9596 Computer-on-Module
VT-SBC-SMARC-IMX95 i.MX9596 Computer-on-Module
VT-SBC-SMARC-IMX95 i.MX9596 Computer-on-Module

VT-SBC-SMARC-IMX95 i.MX9596 Computer-on-Module

• NXP i.MX95 hexa-core CPU + two independent MCU
• 4K @60Hz H.265/H.264 video CODEC
• HDMI/MIPI DSI/LVDS for video output
• Rich I/O signals for flexible expansion
• 1/10 Gigabit Ethernet, Wi-Fi 5, Bluetooth 5.0
• Up to 2 TOPS NPU for AI acceleration
• Android and Linux Yocto systems supported
• SMARC 2.1 form factor for flexible integration

Description
Specifications
Resources

VT-SBC-SMARC-IMX95 Computer-on-Module (CoM) leverages the NXP iMX9594 processor to deliver robust performance in a compact SMARC 2.1 form factor. The module integrates a quad-core ARM Cortex-A55 CPU, a high-performance ARM Cortex-M7 real-time MCU, and a lower-power ARM Cortex-M33 safety MCU. It further enhances processing capabilities with a dedicated elQ® Neutron NPU and a high-performance ARM Mali GPU, enabling efficient handling of complex computational workloads.

VT-SBC-SMARC-IMX95 delivers up to 4K@60Hz H.265/H.264 video encoding and decoding capabilities. It offers dual 4-lane or single 8-lane LVDS, delivering 1080p@60Hz resolution, and a MIPI DSI/MIPI CSI combo interface, which supports HDMI 2.0 with 4K@30Hz output via a MIPI-to-HDMI conversion IC, or native MIPI DSI with 4k@30Hz or 3840 x 1440@60Hz resolution, or MIPI CSI for camera connectivity. These features make it particularly suitable for digital signage, interactive kiosks, and medical imaging systems.

For connectivity, the module offers three Ethernet ports, including two 1 GbE ports and one 10 GbE port for high-bandwidth networking. A Wi-Fi and Bluetooth combo module is available for wireless connectivity. In addition, extensive I/O signals are available for flexible expansion. Designed for rapid deployment, the module maintains full compatibility with the i.MX 95 series processors, significantly reducing customers' time-to-market for new product development.

Specifications
Product Name
VT-SBC-SMARC-IMX95 SMARC Module
CPU
NXP i.MX9596, Hexa-core ARM Cortex-A55 processor, up to 1.8 GHz; Single-core ARM Cortex-M7 real-time MCU, 800MHz; Single-core ARM Cortex-M33 safety MCU, 333MHz
GPU
Arm Mali-G310 GPU, OpenGL ES 3.2, Vulkan 1.3, and OpenCL 3.0 supported
NPU
2 TOPS, support for CNN, RNN, TCN, Transformer and most neural network types
Memory
8GB LPDDR4x
Storage
64GB eMMC 5.1
Video processing
4K@60Hz H.265/H.264 video CODEC
Camera ISP
4K@60fps for single-channel camera / 4K@30fps for dual-channel camera
Power input
5V 2.4A DC
Power consumption
Max.: 10W (full load)
Operating system
Android, Linux Yocto, other Linux distributions (support upon request)
Device management
BlueSphere MDM (Optional for Android version)
Dimensions
82mm x 50mm x 4.71mm (SMARC 2.1 form factor)
Temperature
Operating: 0℃~+70℃ (Optional: -40℃~+85℃); Storage: -40℃ ~ +85℃
Heat dissipation
5%~95% RH (Non-condensing)
