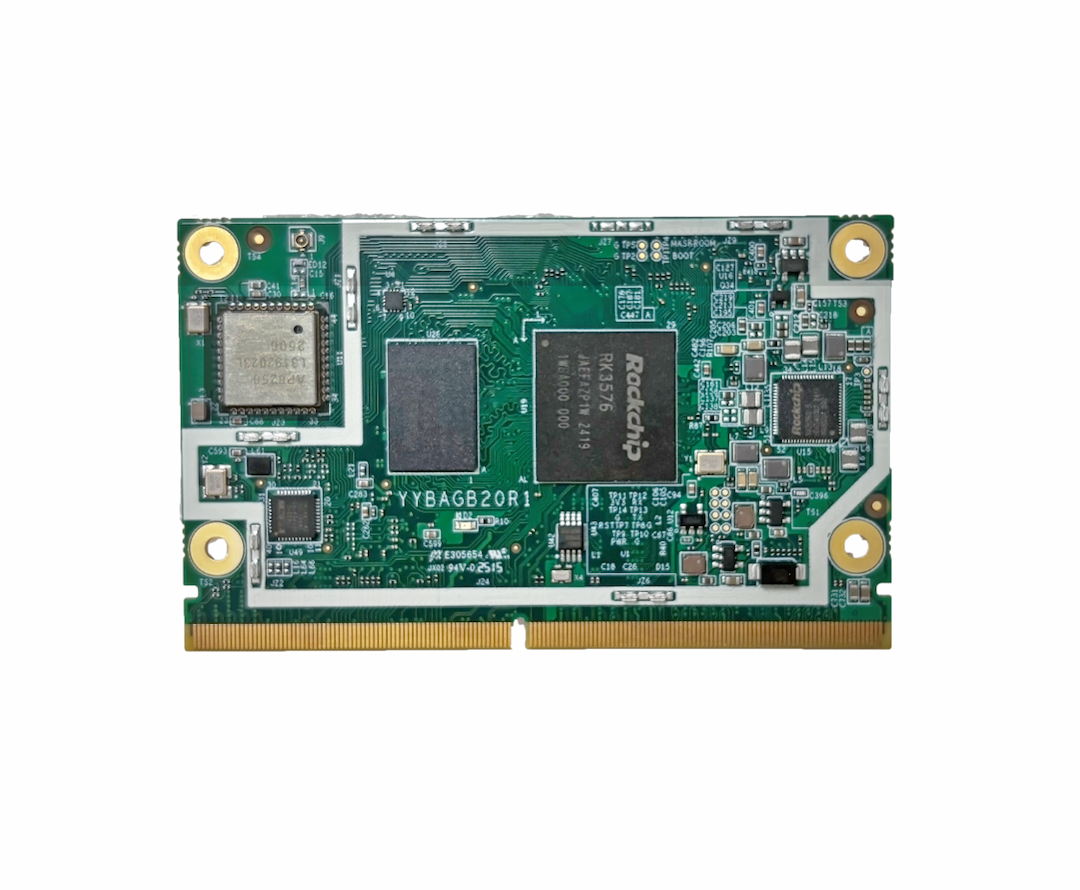

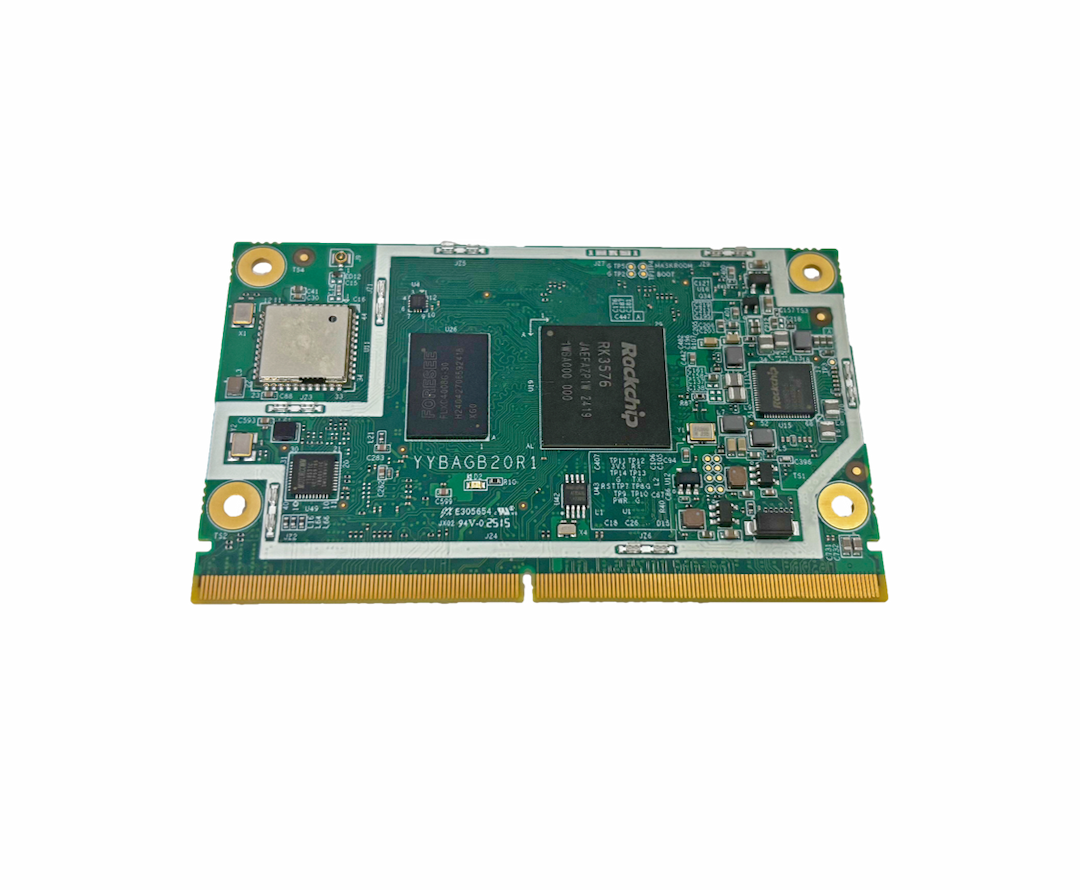

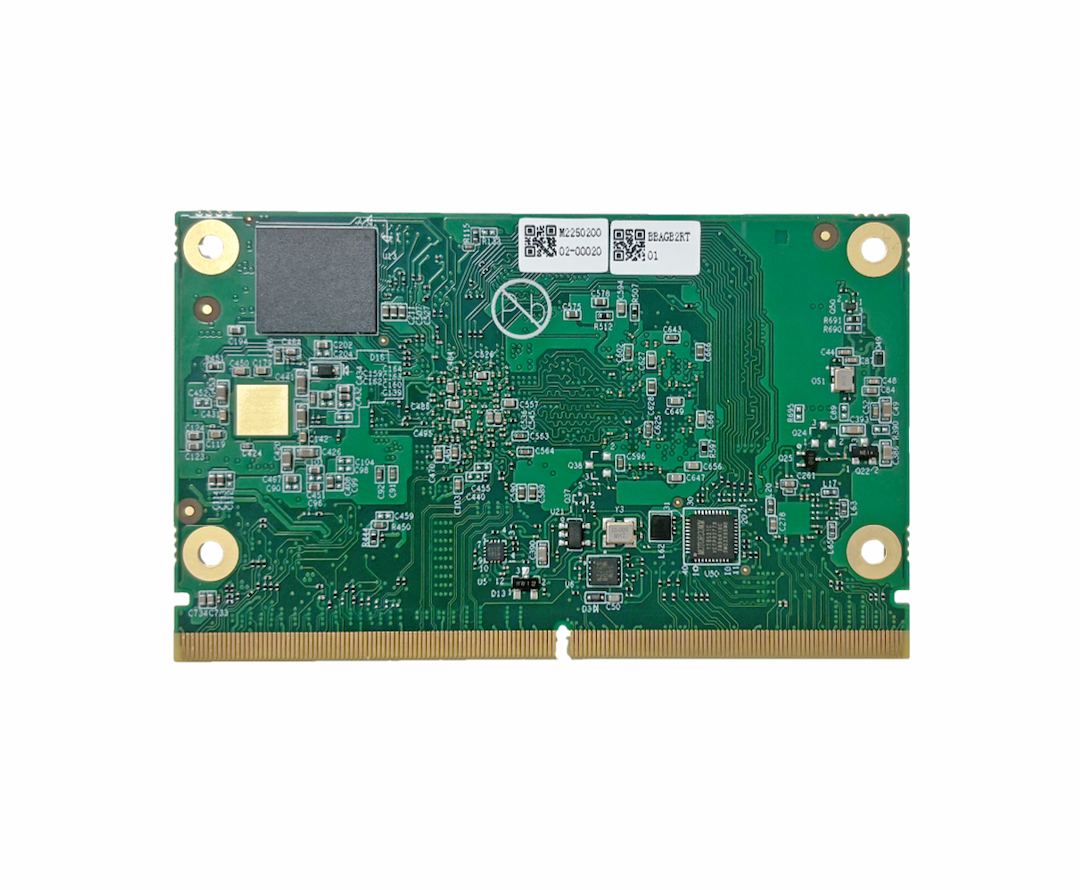

VT-SBC-SMARC-3576 RK3576 Computer-on-Module
VT-SBC-SMARC-3576 RK3576 Computer-on-Module
VT-SBC-SMARC-3576 RK3576 Computer-on-Module
VT-SBC-SMARC-3576 RK3576 Computer-on-Module
VT-SBC-SMARC-3576 RK3576 Computer-on-Module
VT-SBC-SMARC-3576 RK3576 Computer-on-Module
VT-SBC-SMARC-3576 RK3576 Computer-on-Module
VT-SBC-SMARC-3576 RK3576 Computer-on-Module

VT-SBC-SMARC-3576 RK3576 Computer-on-Module

• Rockchip RK3576 octa-core processor
• Multi-OS support: Android, Debian, Ubuntu
• MIPI DSI/HDMI/DP/ for video output
• Rich interface signals for flexible expansion
• Gigabit Ethernet, Wi-Fi 5, and Bluetooth
• 6 TOPS NPU for AI acceleration
• -20℃ ~ +70℃ extended operating temperature
• SMARC 2.1 form factor for flexible integration

Description
Specifications
Documentation

VT-SBC-SMARC-3576 Computer-on-Module (CoM) comes in a SMARC 2.1 form factor for easy integration into customers’ development environment. It is powered by a Rockchip RK3576 octa-core processor that integrates quad-core Cortex-A72 and quad-core Cortex-A53 with a separate NEON coprocessor. Its Arm Mali-G52 MC2 3D GPU supports OpenGL ES 1.1, 2.0, and 3.2, OpenGL up to 2.0, and Vulkan 1.1, providing exceptional graphics performance. Additionally, the 6 TOPS NPU supports mainstream AI frameworks, such as TensorFlow, Caffe, Tflite, Pytorch, Onnx NN, and Android NN for efficient multi-task handling and AI acceleration.

VT-SBC-SMARC-3576 supports up to 8K@30fps or 4K@120fps H.265 or 4K@60fps H.264 decoding, and 4K@60fps H.265/H.264 encoding, ensuring optimal video output quality. The 16MP single-channel ISP implements diverse algorithm accelerators, such as HDR, 3A, CAC, 3DNR, 2DNR, Sharpening, and Dehaze, delivering enhanced image processing performance.

For connectivity, the module offers two RGMII, supporting 10/100/1000Mbps Ethernet networking. A Wi-Fi and Bluetooth combo module offers a wireless connectivity option. In addition, various I/O signals are available for flexible expansion. VT-SBC-SMARC-3576 is ideally suitable for applications such as digital multimedia, smart retail, surveillance, edge computing, and industrial HMI.

Specifications
Product Name
VT-SBC-SMARC-3576 RK3576 ARM-based Computer-on-Module
CPU
Rockchip RK3576, quad-core ARM Cortex-A72 + quad-core ARM Cortex-A53 processor, up to 2.2GHz
GPU
Arm Mali G52 MC3 GPU, OpenGL ES 1.1/2.0/3.2, OpenCL 2.1, and Vulkan 1.2 supported
NPU
6 TOPS, int4/int8/int16/FP16/BF16/TF32 supported
Memory
8GB LPDDR4x
Storage
64GB eMMC V5.1
Video processing
8K@30fps or 4K@120fps H.265 or 4K@60fps H.264 decoder, 4K@60fps H.265/H.264 encoder
Camera ISP
16MP for single-channel camera (HDR, 3A, CAC, 3DNR, 2DNR, Sharpening, Dehaze…)
Input
5V DC
Consumption
Typical: 1.5W (power-on without applications running)
Operating system
Android 14, Debian 11, Ubuntu 22.04
Device management
BlueSphere MDM (Android version optional)
Dimensions
82mm x 50mm x 3.7mm (SMARC 2.1 form factor)
Temperature
Operating: -20℃~+70℃; Storage: -40℃ ~ +85℃
Humidity
Operating: 10%~95% RH; Storage: 5%~95% RH
Documentation
VT-SBC-SMARC-3576 Computer-on-Module Datasheet - V1.5.pdf
VT-SBC-SMARC-3576 Computer-on-Module Datasheet
