VT-SBC-RK3576-NT Single Board Computer Datasheet

• Rockchip RK3576 octa-core powerful processor • Up to 8K video decoding and 4K video encoding • Up to three displays in extended mode • Multiple interfaces for flexible expansion • Gigabit Ethernet, Wi-Fi 6, Bluetooth 5.4 • AI acceleration and edge computing • Optimized for energy efficiency • Compact and scalable

VT-SBC-RK3576-NT ARM-based Single Board Computer.png

VT-SBC-RK3576-NT ARM-based Single Board Computer-interfaces.png

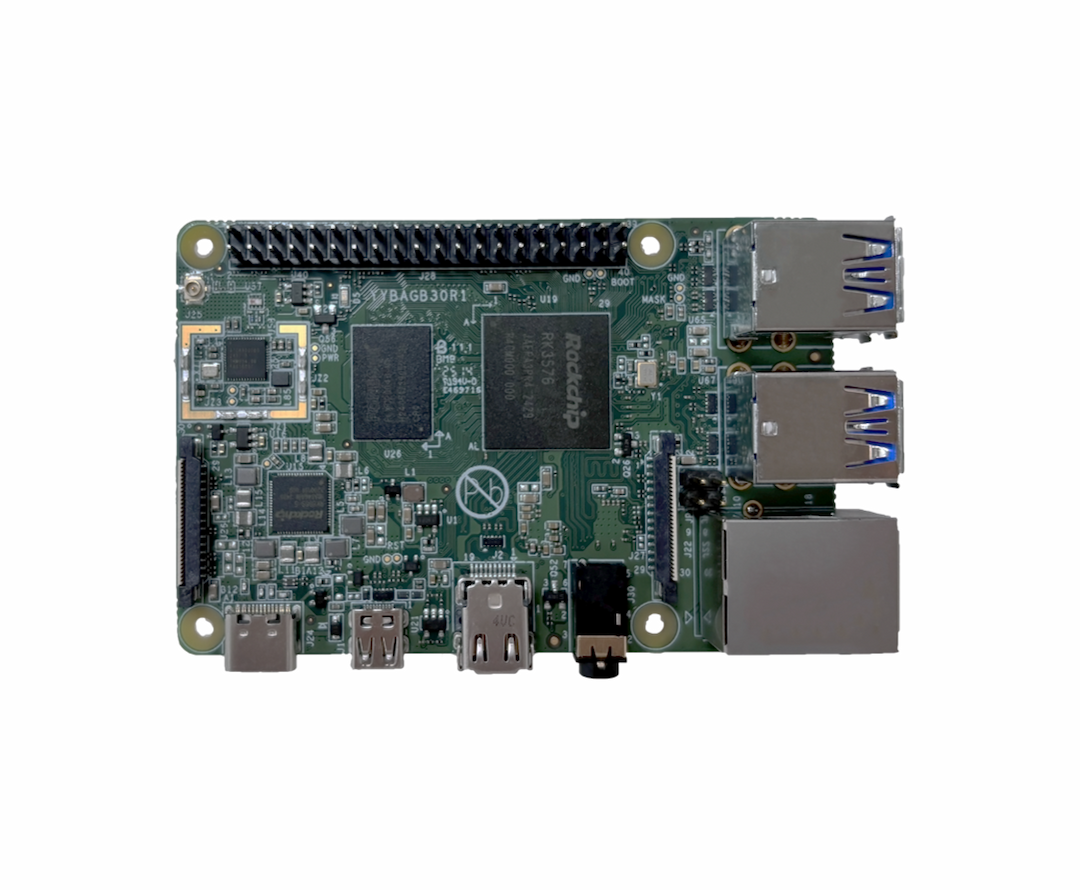

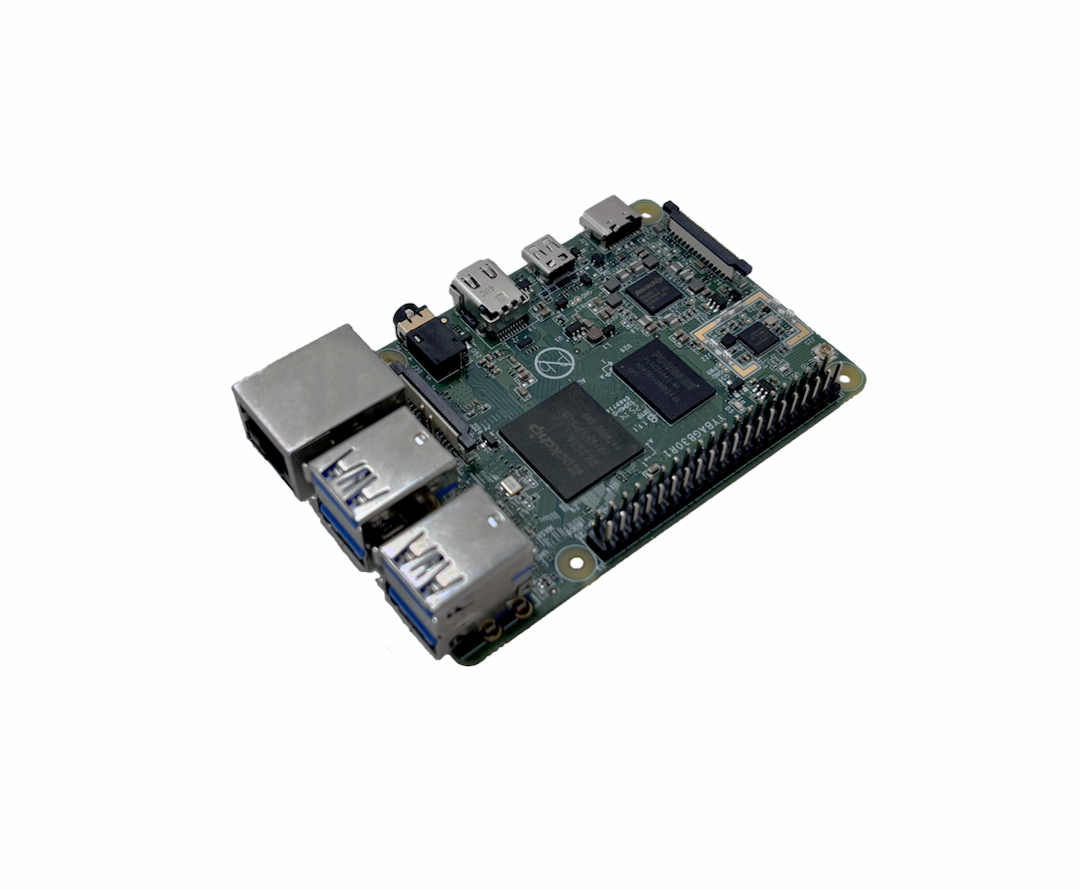

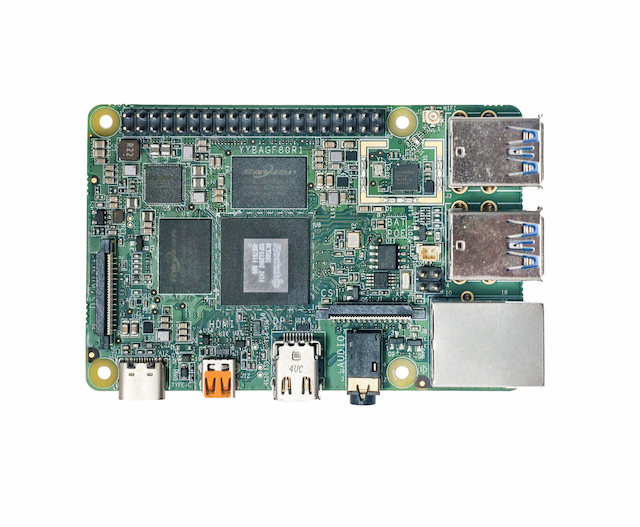

VT-SBC-RK3576-NT RK3576 Single Board Computer

Compact RK3576 SBC with 8K decoding, triple-display, Wi-Fi 6, BT 5.4, rich I/O, and 6 TOPS NPU—ideal for AI edge, smart terminals, and industrial systems.

VT-SBC-RK3576-NT RK3576 Single Board Computer | Vantron

VT-SBC-RK3576-NT RK3576 ARM-based Single Board Computer

Rockchip RK3576 Quad-core Cortex-A72 + Quad-core Cortex-A53, up to 2.2GHz

ARM Mali-G52 MC3, up to 1GHz (OpenGL ES1.1/2.0/3.2, OpenCL 2.1, Vulkan 1.2 supported)

6 TOPS, int4/int8/int16/FP16/BF16/TF32 supported

64GB eMMC V5.1; 1 x Micro SD slot, up to 128GB

8K@30 or 4K@120 H.265 or 4K@60 H.264 decoder, 4K@60 H.264/H.265 encoder

16MP ISP, with resolutions up to 4672 × 3504 (HDR, 3DNR, 2DNR)

1 x 4-lane MIPI DSI, up to 4096 x 2160 @120Hz;
1 x Mini DP 1.4, up to 4096 x 2160 @120Hz;
1 x Micro HDMI 2.1, up to 4096 x 2160 @120Hz;
Dual-display mode: 4096 x 2160 @120Hz, 2560 x 1600 @60Hz;
Triple-display mode: 4096 x 2160 @120Hz, 2560 x 1600 @60Hz, 1920 x 1080 @60Hz

4 x USB 3.0 Type-A;
1 x USB 2.0 Type-C (power in, data transfer, OTG)

2 x SPI;
2 x CAN;
2 x I²C;
4 x Communication UART;
28 x GPIO (Max.);
1 x Debug UART;
2 x 5V Power pin; 2 x 3.3V Power pin; 8 x Ground pin

1 x Wi-Fi & BT antenna connector (IPEX-1)

BlueSphere MDM (Android version optional)

Operating: -20℃ ~ +70℃; Storage: -40℃~+85℃
