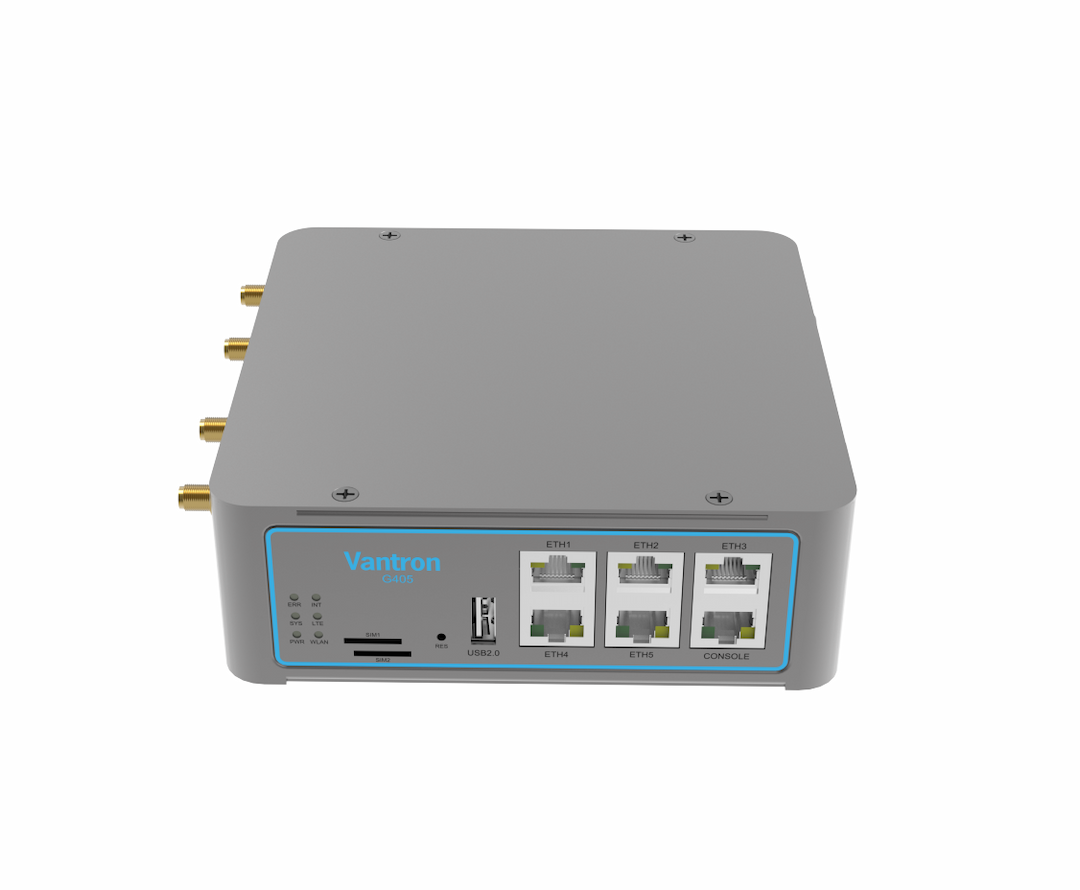

G405 5ETH 4COM Edge Computing Gateway

• Low power, complete industrial design
• DI/DO/AI, isolated CAN FD & RS232, RS485
• Five gigabit ETH, dual SIM backup, Wi-Fi, Bluetooth
• Southbound and northbound protocols for data transfer
• Local edge computing support
• SDK available with system-level API
• Optional BlueSphere GWM support for remote control
• Industrial extended temperature and input voltage
• Space-efficient design for flexible installation

Description

Specifications

Documentation

Vantron G405 industrial edge computing gateway is an Arm®-based high-performance solution built for industrial applications. The gateway features dual-SIM 4G connectivity, Wi-Fi, Bluetooth, and four Ethernet jacks, while supporting a virtual private network (VPN) to address diversified networking requirements. It also offers multiple DI, DO, and AI channels for status monitoring, control, and data visualization.

G405 features edge computing capabilities, enabling data processing and analysis directly at the edge for faster decision-making. It supports various southbound protocols, including Modbus TCP, Modbus RTU, EtherNet/IP, ISO-on-TCP, and CC-Link, ensuring seamless communication with industrial devices. The MQTT northbound protocol allows for flexible edge data transfer to cloud servers. Meanwhile, it supports interfacing with prevailing cloud platforms, including the self-developed BlueSphere GWM platform, for remote management to ease users' efforts through real-time monitoring, OTA updates, remote maintenance, and task assignment.

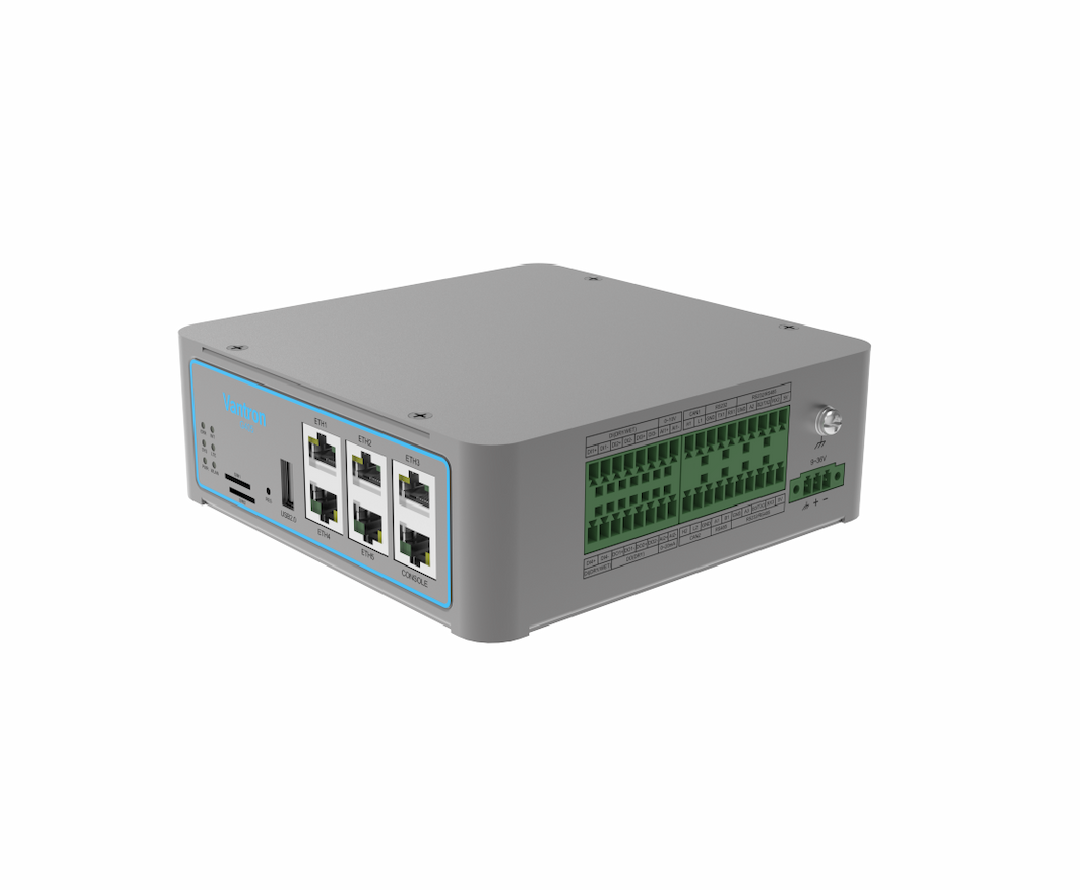

Industrial interfaces such as RS232, RS485, DI, DO, AI, and CAN FD enable communication with a wide range of peripherals, while the DIN rail mount offers compact and efficient space utilization in cabinets, automation systems, and industrial control panels. G405 is an ideal solution for industrial applications such as industrial automation, grid infrastructure, and water management.

Specifications

Product Name

G405 5ETH 4COM Low-consumption Edge Computing Gateway

CPU

Single-core 64-bit Arm Cortex-A53 microprocessor, 1.0GHz (Max.); Dual-core Arm Cortex-R5F MCU, 800MHz (Max.); Single-core Arm Cortex-M4F MCU, 400MHz (Max.)

Memory

1GB DDR4

Storage

16GB eMMC

Modem

4G LTE, CAT 4

SIM

2 x Micro SIM slot

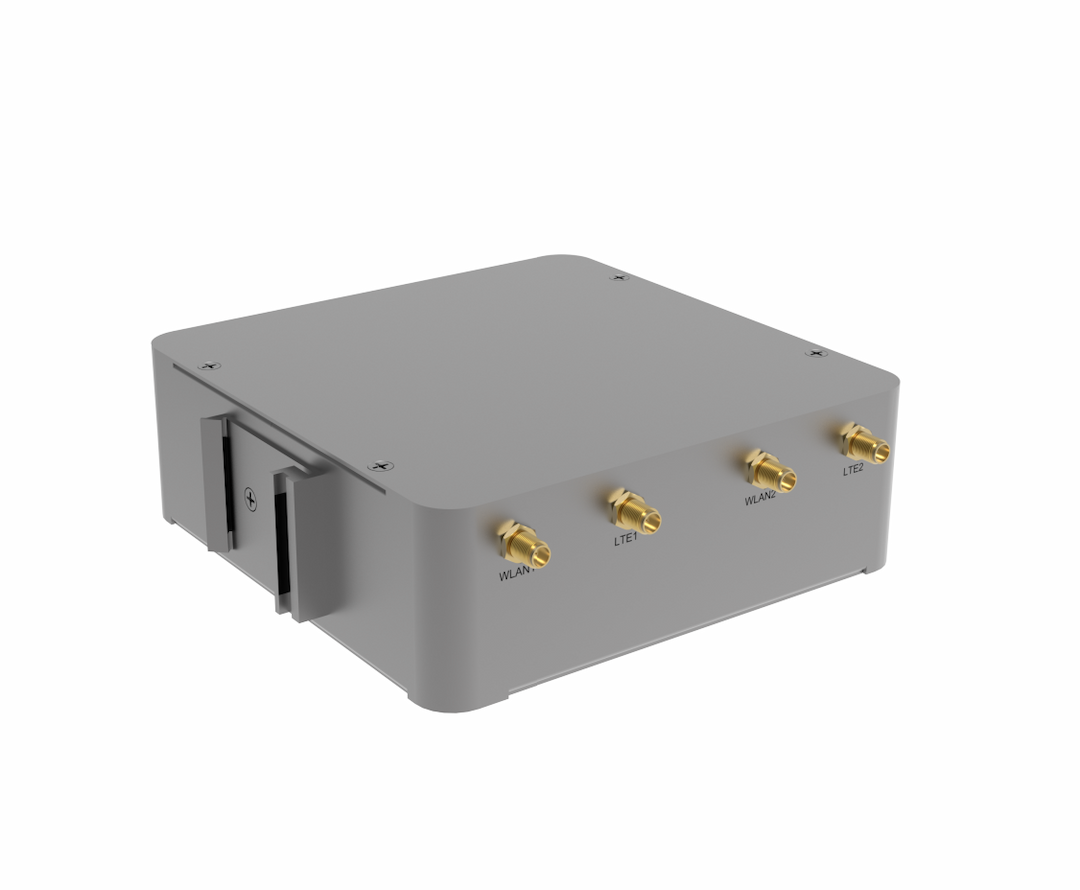

Antenna

2 x Antenna (SMA-K connector)

Port

5 x RJ45, 10/100/1000Mbps

Configuration

1 x WAN + 4 x LAN

Standard

IEEE 802.11 b/g/n/ac

Frequency band

2.4GHz, 5GHz

Working mode

AP, Station

Antenna

2 x Antenna (RPSMA-K connector)

Security

AES, WPS

Bluetooth

Bluetooth 5.2

Serial port

1 x RS232 (isolated), Max. 200kbps; 1 x RS485 (isolated), Max. 500kbps; 2 x RS232/RS485 (isolated), Max. 250kbps; 1 x 5V output

USB

1 x USB 2.0 Type-A

4 x DI (dry / wet contact)

2 x DO, 5A @30V DC

2 x AI (measurement signal: 0~20mA or 4~20mA / 0~10V or 0~5V)

CAN

2 x CAN FD (isolated)

Debug

1 x RJ45 console port (Baud rate: 115200)

Button

1 x Restore button (≤ 3s: restart; 5-8s: factory reset)

LED indicator

1 x Power indicator; 1 x Internet indicator; 1 x Status indicator; 1 x 4G LTE indicator; 1 x Error indicator; 1 x WLAN indicator

Watchdog timer

Hardware watchdog

RTC

Supported

Input

9V~36V DC

Socket

1 x 3-pin x 3.81mm

Protection

Over-current protection, Reverse polarity protection

Dimensions

140mm x 140mm x 48mm

Enclosure

Metal

Weight

841g (not including accessories)

Installation

DIN rail mounting

IP rating

IP40

Cooling mode

Heat sink

Mechanical test

Drop: IEC60068-2-32; Shock: IEC60068-2-27; Vibration: IEC60068-2-6

ESD

IEC 61000-4-2 (Contact: 6kV, Air: 8kV)

Temperature

Operating: -40°C ~ +80°C; Storage: -40°C ~ +85°C

Humidity

5%-95% RH (non-condensing)

Certification

Compliance FCC, ISED, CE; Carrier certification: AT&T, Verizon, T-Mobile

Documentation

Vantron G405 Edge Computing Gateway Datasheet
