VT-SBC35-3576 RK3576 Single Board Computer
• Rockchip RK3576 octa-core processor
• Ethernet, Wi-Fi 6, BT, optional 4G/5G
• Supports up to three displays in extended mode
• H.264/H.265 video codec
• Three camera interfaces, 16MP ISP with HDR
• Rich I/O for flexible user expansion
• Powerful AI acceleration & graphic processing
• 3.5-inch form factor

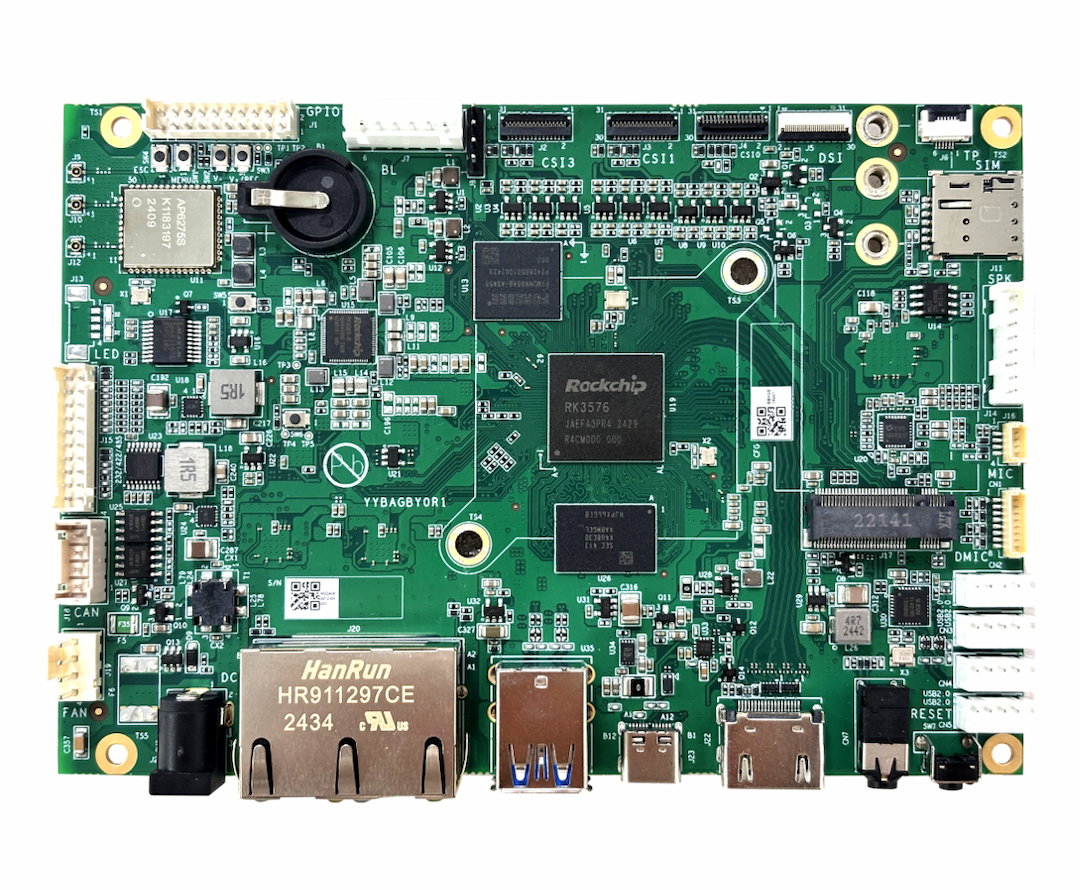

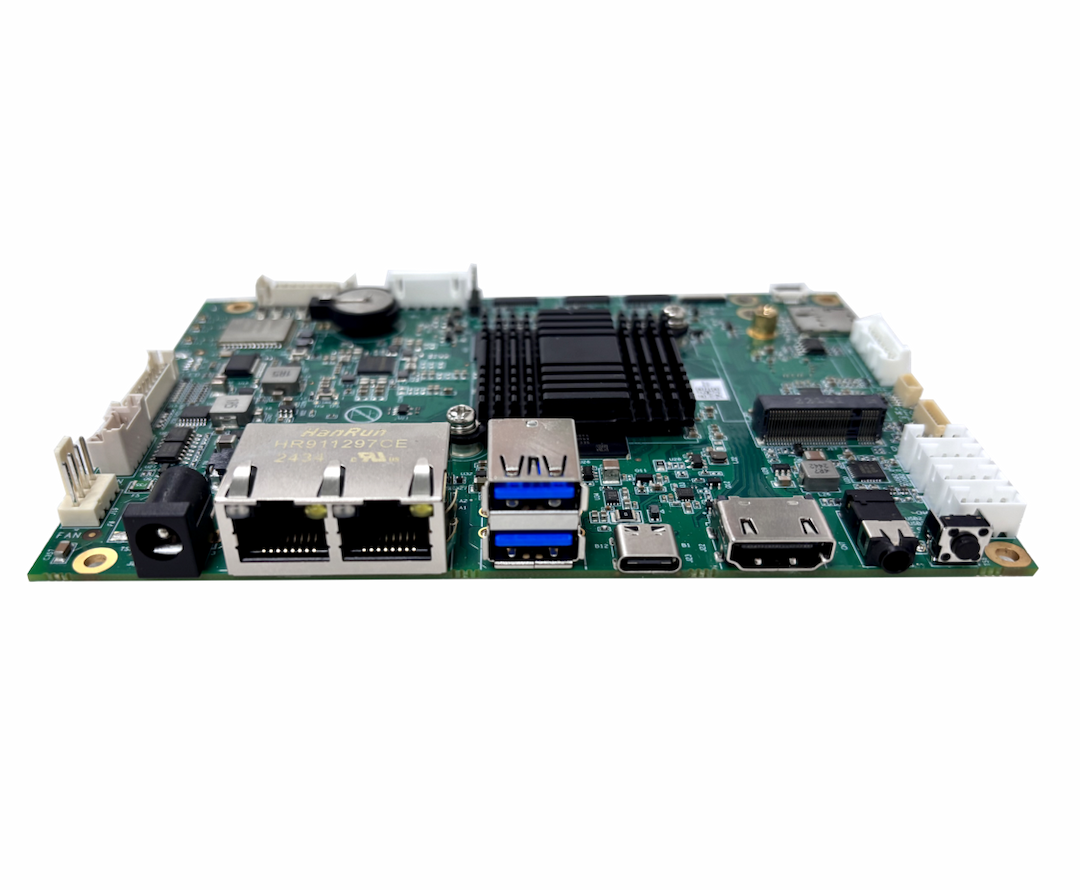

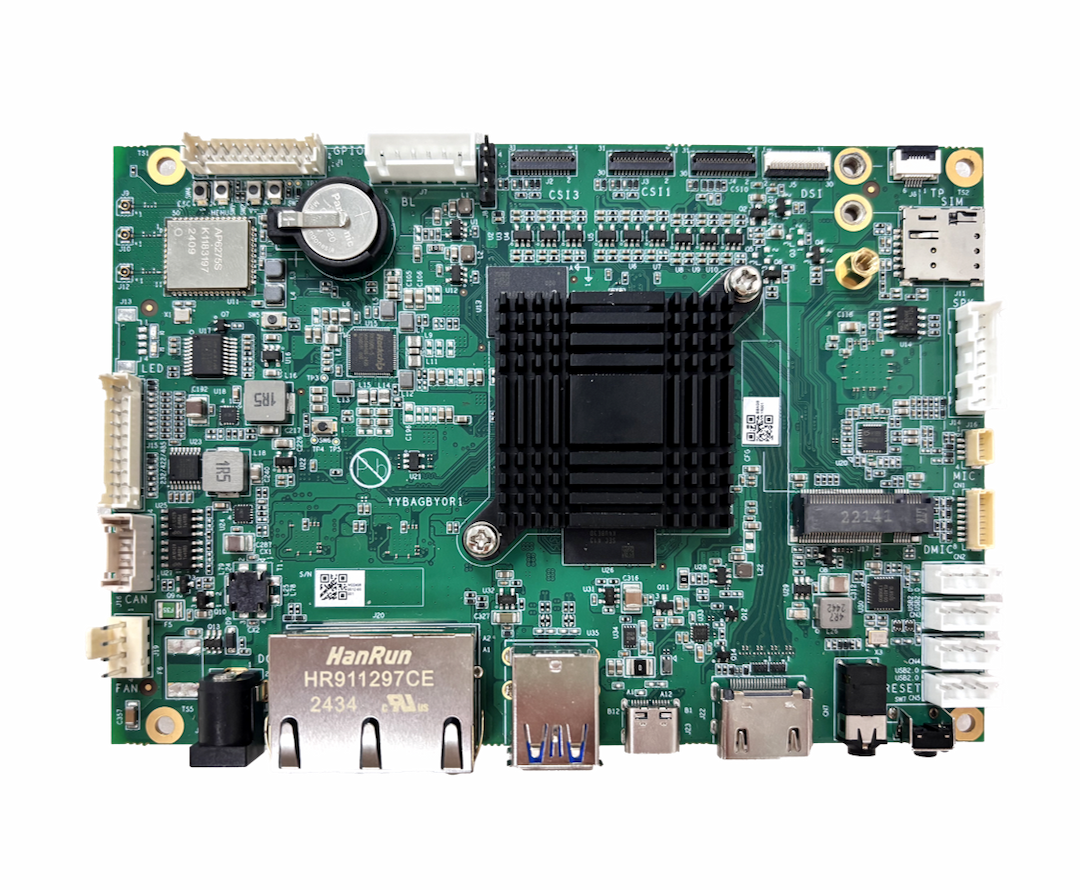

VT-SBC35-3576 single board computer comes in a 3.5-inch form factor that is ideal for integration into embedded devices. The board is powered by Rockchip RK3576 high-performance, low-power octa-core processor that integrates four Cortex-A72 cores and four Cortex-A53 cores, running at up to 2.2GHz. This processor also includes a NEON co-processor for efficient SIMD (Single Instruction, Multiple Data) operations. The Arm Mali-G52 MC3 GPU supports OpenGL ES1.1/2.0/3.2, OpenCL 2.1, and Vulkan 1.2 for enhanced 2D/3D graphic acceleration, along with H.264 and H.265 video codec support.
The built-in NPU offers 6 TOPS of processing performance, with support for mainstream deep-learning frameworks such as TensorFlow, TF-Lite, Pytorch, Caffe, Onnx NN, Android NN, etc. The board offers three MIPI CSI interfaces for camera use, supporting 16 Megapixel ISP.
For connectivity, VT-SBC35-3576 offers dual Gigabit Ethernet ports, a combo Wi-Fi 6 and Bluetooth 5.1 module, and optional 4G/5G cellular network for IoT applications. In addition, it provides rich peripherals for application in diverse settings, such as advertising HMIs, cash registers, smart whiteboards, gateways, industry-specific tablets, network video recorders, and Over the Top (OTT) services.
