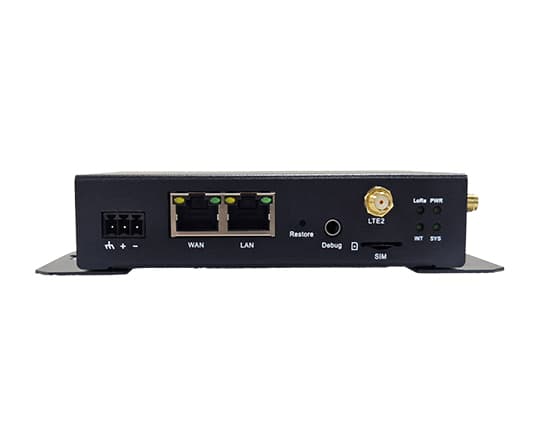

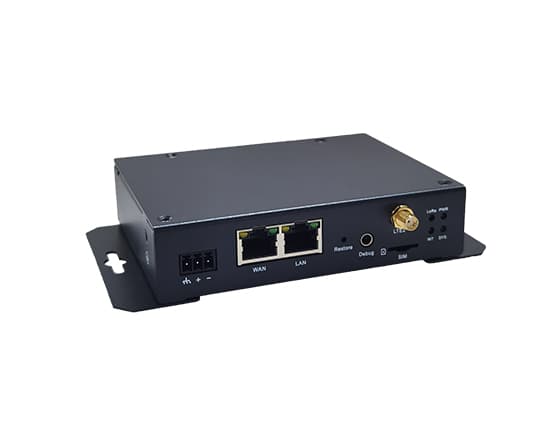

GLR200 LoRaWAN Edge Computing Gateway
GLR200 LoRaWAN Edge Computing Gateway
GLR200 LoRaWAN Edge Computing Gateway
GLR200 LoRaWAN Edge Computing Gateway
GLR200 LoRaWAN Edge Computing Gateway
GLR200 LoRaWAN Edge Computing Gateway
GLR200 LoRaWAN Edge Computing Gateway
GLR200 LoRaWAN Edge Computing Gateway

GLR200 LoRaWAN Edge Computing Gateway

High-performance LoRa chipset, up to -141 dBmsensitivity; 8 channels x 8 SF; ~ 22dBm TX power
Sub-1 GHz frequency bands supported
Up to 15km in remote areas, 5km in urban areas
Support connection of thousands of end devices
Low-latency, reliable wireless data transmission
Ethernet, Wi-Fi, 4G LTE connectivity
Multi-mode high-sensitivity satellite navigation
Ultra-low power consumption



Description
Specifications
Documentation

Vantron GLR200 LoRaWAN gateway supports the LoRa physical layer technology and complies with the LoRaWAN 1.0.3 specification. It facilitates long-range wireless connectivity with high sensitivity, ensuring reliable data transmission while operating efficiently with a power consumption of less than 5W under load.

GLR200 detects data packets and demodulatesthem in a combination of 8 different spreading factors (SF5 to SF12) and 8 frequency channels. It provides a reliable and efficient way to transmit data from LoRaWAN Class A and Class C end devices to a LoRaWAN network server which manages the entire LoRaWAN network. In addition, GLR200 offers two fast Ethernet ports to connect to an Ethernet switch or router and provide essential IP networking features. It supports BDS, GPS, and GLONASS for precise timestamping and high-accuracy geolocation.

GLR200 offers a comprehensive solution for deploying LoRaWAN networks, combining robust network management capabilities and advanced geolocation functionalities. It allows connection of thousands of end devices scattered in very long distances and is well-suitedfor smart grid, agriculture, industrial automation, oil & gas, public security, and more.


Specifications
Product Name
GLR200 LoRaWAN Low-consumption Edge Computing Gateway
Wi-Fi
Wi-Fi 802.11 b/g/n (Optional for the North America Version)
Memory
256MB
SPI flash
64MB
Ethernet
2 x RJ45, 100Mbps
CPU
MIPS24KEc, 580MHz
4G LTE
CAT 1
RF
LoRa
GNSS
BDS, GPS, GLONASS, GALILEO
Frequency
915MHz, 490MHz
Transmit power
~ 22dBm
Bandwidth
125 kHz / 250 kHz / 500kHz
Packet detector
8 Channels x 8 Spreading factors (SF5~SF12)
Receiver sensitivity (Typical)
-121 dBm (at 125kHz bandwidth, SF5); -127 dBm (at 125kHz bandwidth, SF7); -141 dBm (at 125kHz bandwidth, SF12)
Antenna impedance
50Ω
LoRaWAN
LoRaWAN 1.0.3; Support for Class A and C end devices
Frequency band
North America: LTE-FDD:B2/B4/B5/B7/B12/B13/B25/B26; LTE-TDD:B41; China: LTE-FDD: B1/B3/B5/B8, LTE-TDD: B34/B38/B39/B40/B41
Debug
1 x Audio jack for device debugging (RS232)
SIM slot
1 x Micro SIM slot

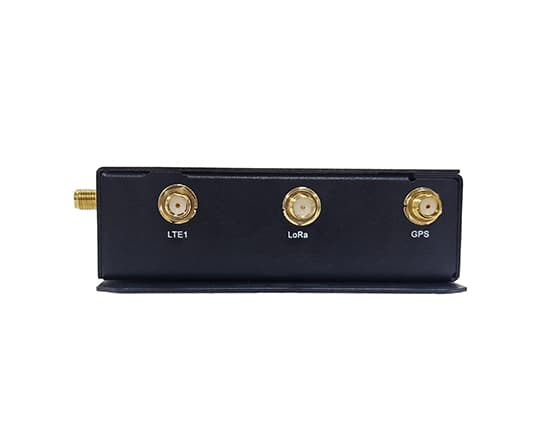

Antenna
1 x LoRa antenna, SMA connector; 1 x GNSS antenna, SMA connector; North America: 2 x 4G LTE / 1 x 4G LTE + 1 x Wi-Fi antenna, SMA connector; China: 1 x 4G LTE antenna, SMA connector
WDT
Supported
LED indicator
1 x Power indicator; 1 x LoRa communication indicator; 1 x Network status indicator; 1 x System status indicator
Button
1 x Restore button (1~5s: Restart the device; > 5s: Factory reset)
Enclosure
Aluminum
Dimensions
150mm x 90mm x 29mm (including the mounting brackets)
Installation
Wall mounting, DIN rail mounting
IP rating
IP30
Input
12V/1A DC; 1 x Power terminal (3-pin, 3.81mm)
Consumption
< 5W (load)
Operating system
VantronOS
Device management platform
Vantron BlueSphere GWM (Optional)
Log
Supported
Upgrade
Local, OTA update
IP features
DHCP client (IPv4), Static IP (IPv4), PPPoE; Network Address Translation (NAT); Domain Name System (DNS); Network Time Protocol (NTP)
Network diagnostics
Ping, Traceroute, Nslookup
Firewall
Supported
VPN
OpenVPN, L2TP, PPTP, IPSec
Multi-level permission
Supported
Link detection
Heartbeat detection, automatic re-connection
Network reliability
Failoversupported, link backup between Ethernet and 4G LTE
Software integrity
Secure boot, SHA256 for firmware signature, and u-boot
Temperature
Operating: -20°C~+60°C; Storage: -40℃~ +85℃
Humidity
Operating: 5%-95% RH (Non-condensing)
EMC level
EMC Level 3
Certification
FCC, ISED
Documentation
Vantron GLR200 LoRaWAN Gateway Datasheet -V1.7.pdf
Vantron GLR200 LoRaWAN Gateway Datasheet
