M13R1 13.3" Android/Yocto IP65 Rugged Industrial Tablet

M13R1 13.3" Android/Yocto IP65 Rugged Industrial Tablet

◆ Automotive-grade chip
◆ IPS panel, Resolution: 1920 x 1080, Brightness: 450 nits
◆ Gigabit Ethernet/Wi-Fi/Bluetooth supported
◆ 5000mAh Battery
◆ IP65-rated

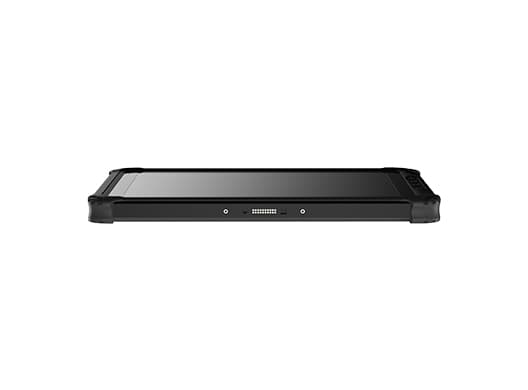

◆ Pogo pin for flexible expansion
◆ USB-A & USB-C (charge, OTG, PD supported)

Description

Specifications

Documentation

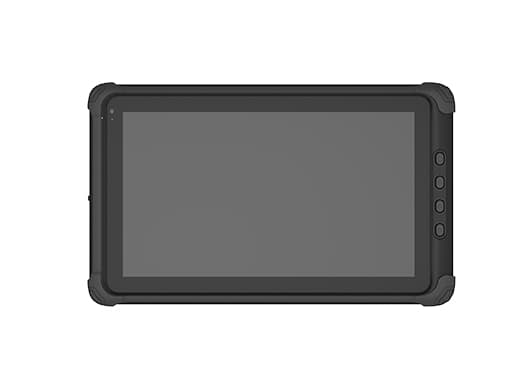

Vantron M13R1 features a 13.3-inch full HD LCD with a reinforced, IP65-rated waterproof design specifically tailored for industrial uses. The device is powered by Rockchip RK3568J multimedia processor to support 4K 60fps H.265/H.264/VP9 decoder, 1080P 60fps H.265/H.264 encoder, and 8M ISP with HDR, delivering exceptional visual experiences for users.

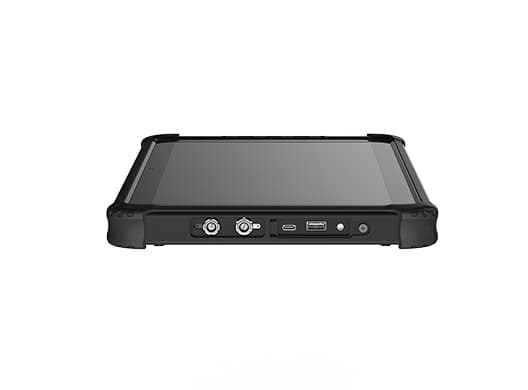

The tablet comes with a range of connectivity options including USB Type-A, USB type-C, CAN/RS422, and Ethernet. Such interfaces enable seamless communication with industrial devices for efficient data exchange, monitoring, and control.

M13R1 offers an ideal solution for industries such as plant walk-down, logistics, utilities, and automotive where reliable and durable technology is essential for efficient operations in challenging environments.

Specifications

Product Name

M13R1 13.3" Android/Yocto IP65 Rugged Industrial Tablet

CPU

RK3568J, Quad-core Cortex-A55 processor, 1.8GHz

GPU

Mail-G52-2EE

Memory

4GB LPDDR4-1866

Storage

128GB eMMC 5.1; SATA SSD expansion supported

Ethernet

1 x M8, 10/100/1000Mbps

Wi-Fi & Bluetooth

Wi-Fi 802.11 a/b/g/n/ac + BT 5.0

Display

13.3” 16:9 IPS LCD

Resolution

1920 x 1080

Brightness

450 nits

Color depth

16.7M (8-bit)

Viewing angle

Full view

10-point G + G PCAP touchscreen

Surface hardness

Finishing process

Toughening

Camera

Front camera 8MP, auto focus

Audio

1 x 1w speaker; 1 x 3.5mm combo audio jack, debugging supported; 1 x A-Mic

USB

1 x USB 3.0 Type-A ;1 x USB 2.0 Type-C (OTG, power input, PD charge)

CAN

1 x CAN (M8) ;1 x CAN (Pogo pin)

Serial port

1 x RS422 (M8) 1 x RS422 (Pogo pin)

Pogo pin

2 x 10 pin (1 x RS422, 1 x CAN, 1 x USB 2.0, 12V DC input, 10/100Mbps Ethernet)

RTC

Supported

G-Sensor

1 x G-sensor

Light sensor

1 x Light sensor

Button

1 x Power button ；3 x Function button

LED indicator

1 x LED indicator for device charge/user defined

Debian 10, Android 11

Input

USB Type-C (5V/9V/12V PD supported)

Battery

5000mAh/7.4V lithium battery

Casing color

Black

Dimensions

372.6 mm x 227mm x 29.1mm

IP rating

IP65

Vibration

MIL-STD-810H: Method 516.8, Procedure I； Operating: 20G, Idle: 40G

Thermal shock

MIL-STD-810H: Method 503.7； Operating: -20°C ~+60°C, Idle: -30°C ~+70°C

Solar radiation

MIL-STD-810H: Method 505.7

Liquid pollution

MIL-STD-810H: Method 504.3

Temperature

Operating: -20°C ~+60°C Storage: -30°C ~+70°C

Humidity

Operating: 10%~90% RH (Non-condensing)； Storage: 5%~95% RH (Non-condensing)

Certification

FCC (FCC Part 15 Class B) ESD (Contact: ±4KV, Air: ±8KV)

Documentation

Vantron M13R1 13.3“ Rugged Industrial Tablet Datasheet
