TPC215-RK66 21.5“ Android All-in-one Panel PC

TPC215-RK66 21.5“ Android All-in-one Panel PC

◆ RK3566 Quad-core high-performance processor
◆ Android 11 system, Linux distributions available
◆ 21.5-inch TFT LCD, 10-point PCAP touch screen
◆ ETH/Wi-Fi/BT/4G LTE supported
◆ 5MP front camera
◆ Gigabit Ethernet port
◆ Sleek appearance, flexible installation (horizontal, vertical, desktop, wall mounting, floor mounting)

Description

Specifications

Documentation

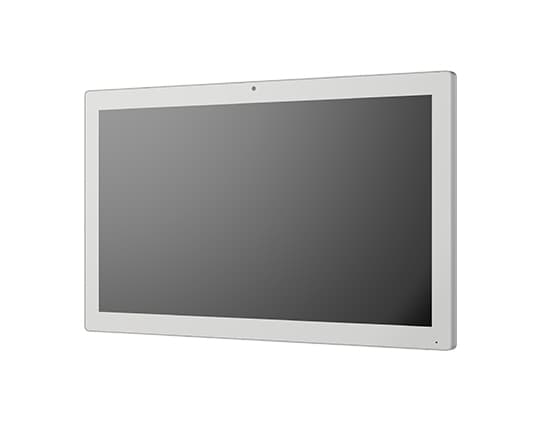

Vantron TPC215-RK66 is a 21.5” desktop all-in-one panel PC, powered by RK3566 quad-core high-performance processor. It features a 21.5-inch 10-point PCAP touch screen with 16:9 aspect ratio, delivering full HD images. TPC215-RK66 offers rich interfaces for connection of different peripherals and displays, making it very suitable for application in self-service kiosks and multi-media terminals. The VESA pattern also enable users to mount and maintain the device more flexibly for industrial control.

Vantron TPC series all-in-one panel PCs offer an overall solution that integrates the touchscreen monitor, display, processor, and software operating system, making them a first choice in IoT applications.

Specifications

Product Name

TPC215-RK66 21.5“ Android All-in-one Panel PC

CPU

Rockchip RK3566, Quad-core ARM Cortex-A55, 1.8GHz (Max.)

Memory

2GB (Optional: 4GB)

Storage

16GB (Optional: 32GB)

Ethernet

1 x RJ45, 10/100/1000Mbps

Wi-Fi & Bluetooth

2.4GHz & 5GHz 802.11 a/b/g/n/ac + BT 5.0 and later

Cellular

Optional: 4G LTE (CAT 4)

Display

21.5" TFT LCD

Resolution

1920 x 1080 @60Hz

Brightness

250 nits

Contrast ratio

1000:1

Aspect ratio

16:9

Viewing angle

89/89/89/89 (U/D/L/R)

External display

1 x HDMI, up to 4K @60Hz

10-point PCAP touch screen

Surface treatment

Anti-fingerprint

Optional

Anti-glare & anti-reflection

Surface hardness

Cover lens

At least IK03 rated

Light transmittance ratio

>85%

Camera

Front camera, 5MP

Audio

1 x 3.5mm combo audio jack 2 x 2W Speaker

USB

4 x USB 2.0 Type-A (OTG supported on the top right interface) 1 x USB 3.0 Type-A

RTC

Supported, scheduled on/off supported

WDT

Supported

Button

1 x ON/OFF button

LED indicator

1 x Power indicator

Android 11 Optional: Yocto (VT UI)

Device management platform

BlueSphere MDM (Android version only)

OTA tool

BlueSphere OTA

Input

12V DC 1 x 3-pin power terminal

Consumption

< 35W

Material

Plastic, white (optional: Black)

Dimensions

526mm x 322.7mm x 52.9mm

Installation

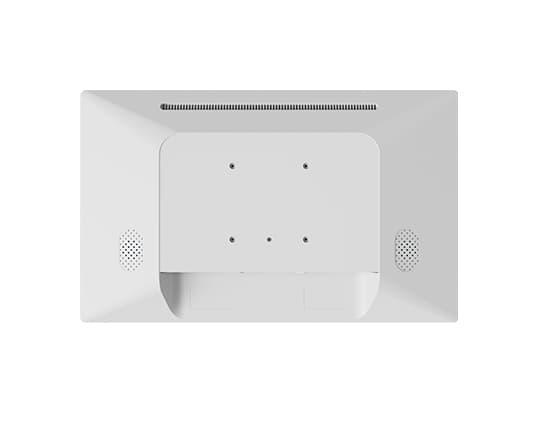

VESA mounting (100mm x 100mm)

Protective features

IP54 (front side only)

Heat dissipation

Fanless (Heatsink)

Temperature

Operating: 0℃~+40℃ Storage: -20℃~+60℃

Certification

CCC, FCC

Documentation

TPC215-RK66 21.5” All-in-one Panel PC Datasheet
