L335 Waterproof Outdoor Gateway

◆ TI AM335x, 32‑bit ARM Cortex-A8 processor
◆ Multiple communication technologies
◆ Rich interfaces
◆ Ultra-low power consumption
◆ Wide input voltage
◆ Wide temperature range
◆ Complete industrial design

Description

Specifications

Documentation

Vantron L335 industrial gateway is powered by AM3352 ARM Cortex-A8 processor that features rich peripheral interfaces for flexible expansion and as low as 5W power consumption in working mode to go through 12 weeks’ work after full charge, making it particularly suitable for application in remote areas. The gateway supports geofence setup so that users can define a radial boundary for it to track the device in real-time.

L335 adopts industrial design with guaranteed quality and reliability to offer an ideal solution for your IoT applications. It supports a variety of communication technologies including Ethernet, 3G/4G, NB-IoT, Wi-Fi and Bluetooth, ZigBee, GPS for different scenarios requiring multiple connectivity points. Meanwhile it supports connection to Vantron BlueSphere cloud platform for unified management to ease the efforts of users and improve productivity by real-time monitoring and tracking, OTA updates, remote maintenance, task assignment and follow-up.

Specifications

CPU

TI AM335x, 32-bit quad-core ARM Cortex-A8 processor, 600MHz

Memory

512MB DDR3L

Storage

16GB eMMC EEPROM 128Kb (MCU) + 1Kb (CPU) 1 x Micro SD slot

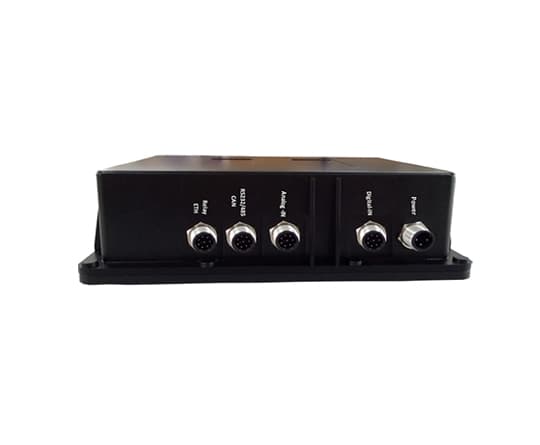

Ethernet

1 x M12 connector, 10/100Base-T

Cellular

1 x Mini PCIe for 3G/4G module (LTE CAT 1/M)

Wi-Fi & BT

On-board Wi-Fi 802. 11 b/g/n + BT 5.0 (Optional: BT 4.2)

ZigBee

Optional

GNSS

Optional: GPS/Beidou/Glonass/Galileo/QZSS

Antenna

Internal antennas (external antennas supported)

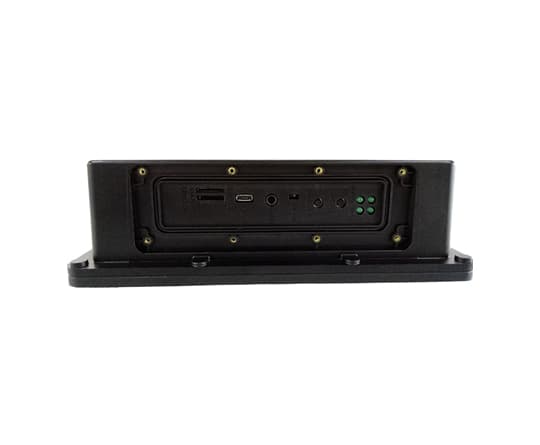

Serial port

1 x Serial debug port (audio jack: for debugging/local configuration) 1 x M12 connector with RS232, RS485, CAN 2.0b

USB

1 x Micro USB (OTG supported, USB to Ethernet connectivity supported)

Digital/Analog

2 x DI 2 x DO 2 x AI

Relay output

1 x Relay output

SIM slot

1 x SIM slot

Accelerometer

Supported

Temperature sensor

Supported (±0.5°C)

RTC

Supported

LED indicator

4 x Status indicator (charge/alive/report/power)

Button

1 x Battery switch (ON by default, to enable/disable power supply by the battery)； 1 x Reset button； 1 x Restore button

VantronOS

Custom development

SDK available

Upgrade

OTA upgrade

Add-on features

Geofence supported Power management of DC and battery monitor

Input

12V DC (6V-56V)

Battery

3.7V, 12800mAh chargeable battery, IP67 covered (Supports up to 12 weeks of work without solar input)

Dimensions

220mm x 144mm x 64.5mm

Enclosure

Black plastic

IP rating

IP67 (chemical resistant, UV resistant, Gravel bombardment proven)

Installation

DIN rail mounting/Magnetic mounting/Wall mounting

Temperature

Operating: -20°C ~ +70°C Storage: -20°C ~ +70°C (Optional: -40°C ~ +85°C)

Humidity

RH 5%-95% @20°C ~ 35°C (Non-condensing)

Cooling mode

Fanless

Certification

UL, FCC, CE, PCTRB

Product Name

L335 Waterproof Outdoor Low-consumption Edge Computing Gateway
