IBOX6425E ElkhartLake X86-based Windows Embedded Industrial Computer

Overview

The IBOX6425E is a robust, X86-based Windows Embedded Industrial Computer designed to meet the performance, durability, and connectivity demands of embedded applications, especially in industrial scenarios. Powered by the Intel® Atom® Elkhart Lake x6425E quad-core processor, the IBOX6425E delivers high computing power while keeping the CPU performance at 12W of low power consumption. With industrial-grade reliability, rich connectivity options, and versatile expansion capabilities, the IBOX6425E Embedded Industrial PC is an optimal solution for smart business and industrial automation scenarios.

Technological Advantages

1.High Performance Processing with Low Power Consumption
- Equipped with Intel® Atom® Elkhart Lake x6425E quad-core processor, delivering outstanding computing power while maintaining low power consumption at 12W, ensuring energy efficiency for continuous, long-term operations.

2.Industrial-grade Reliability
The computer is designed for harsh environments and features a wide operating temperature ranging from -20 to 70°C. It comes with industrial certifications such as EMC, SRRC, RoHS. Reliable performance and long-term product lifecycle make it suitable for challenging environments.

3.Flexible Expansion Options
- The industrial PC features two M.2 B-Key slots, one for SSD expansion and the other for connection of either a Wi-Fi 802.11 a/b/g/n/ac and BT 5.0 module or a 5G module, allowing customization for specific application requirements.

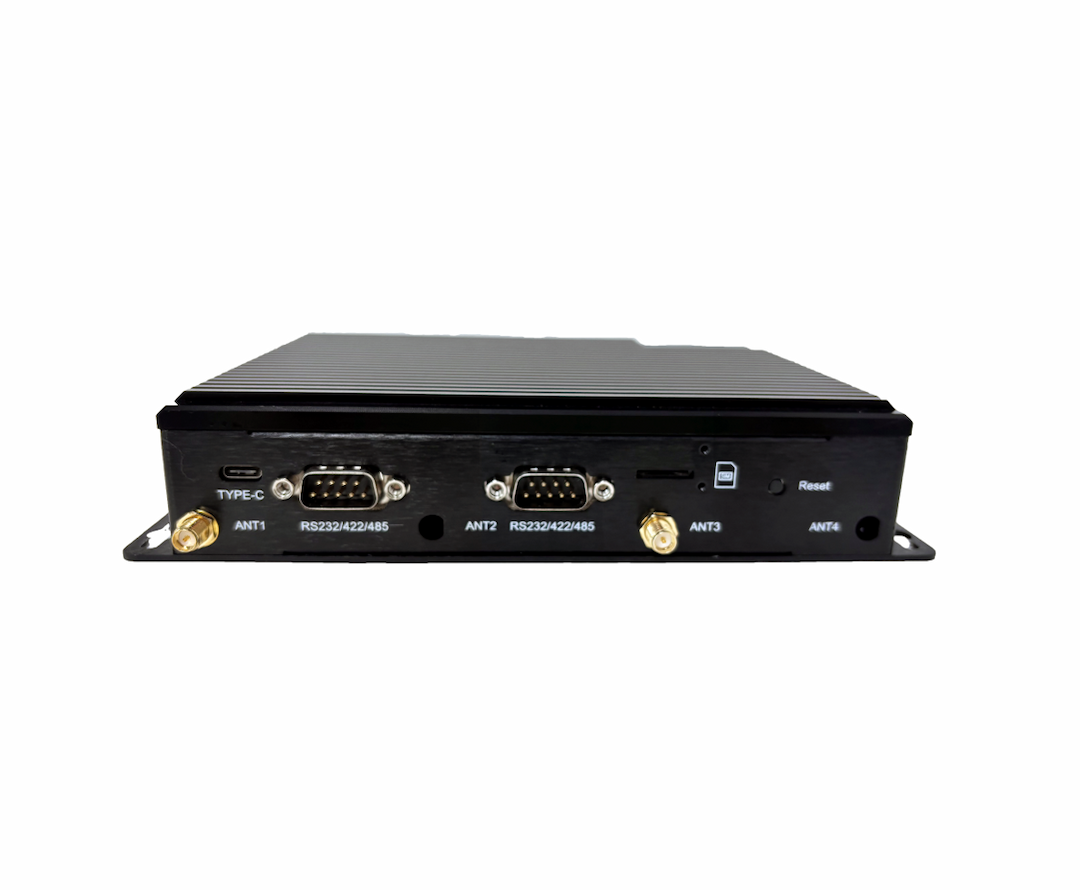

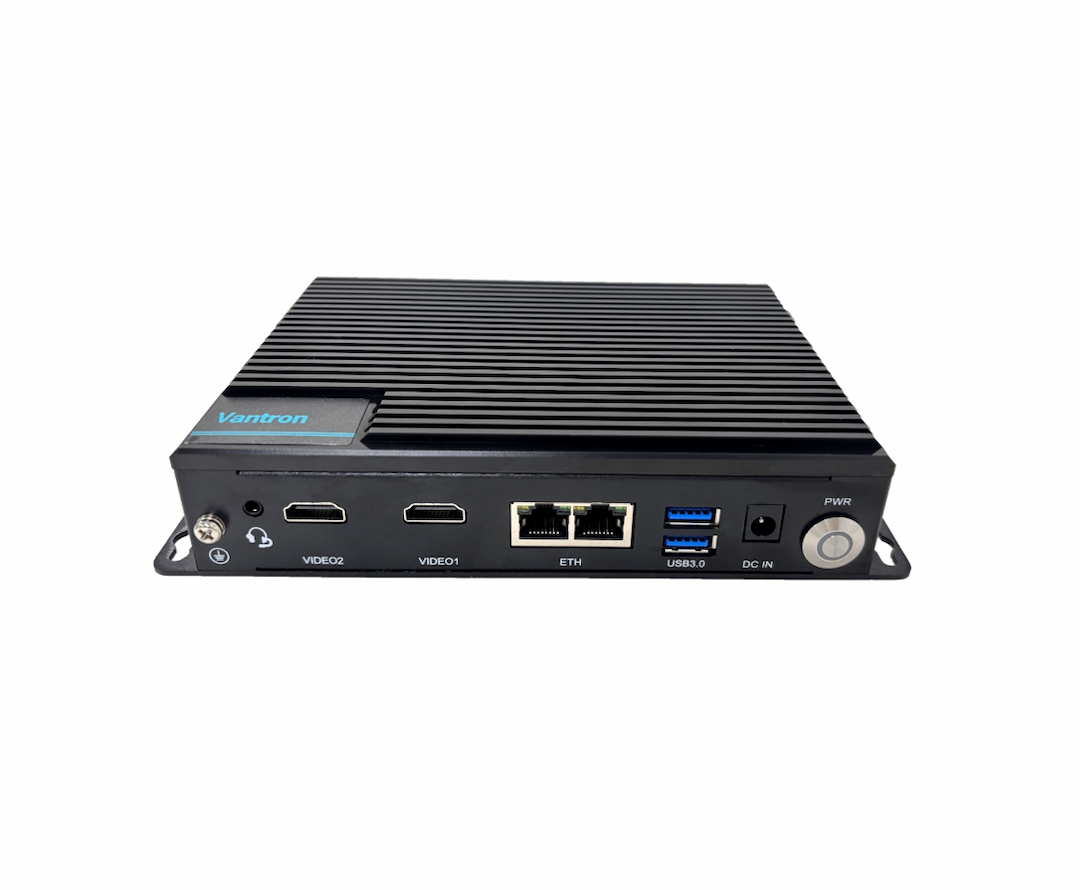

- Supports dual video outputs through HDMI and VGA interfaces to optimize image display. Two serial ports are available to communicate with external devices to ensure a reliable, error-free data path.

4.Enhanced Security
- With Trusted Platform Module (TPM) support, the industrial PC ensures secure data processing and storage, safeguarding sensitive operations and information from tapering or cyber threats.

Application Scenarios

As the device provides rich peripheral interfaces, a wide range of peripherals can be connected for extended applications, including barcode scanners, cameras, barcode printers, and keyboard plates. Above all, its strong performance, reliable and stable quality, and excellent cost performance are second to none for smart business applications.
