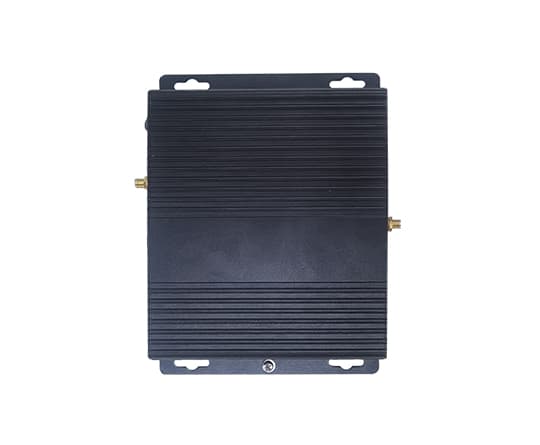

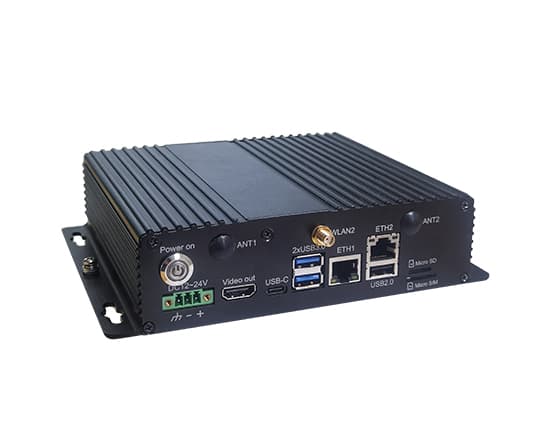

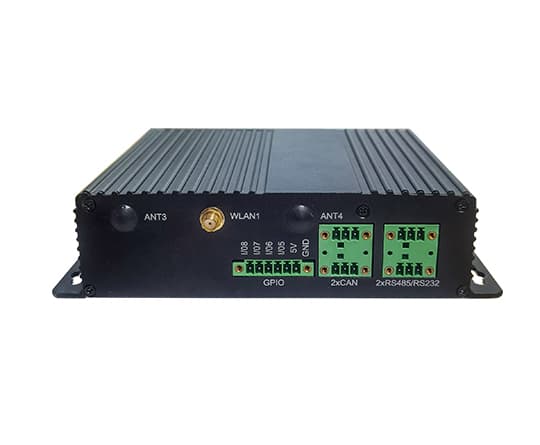

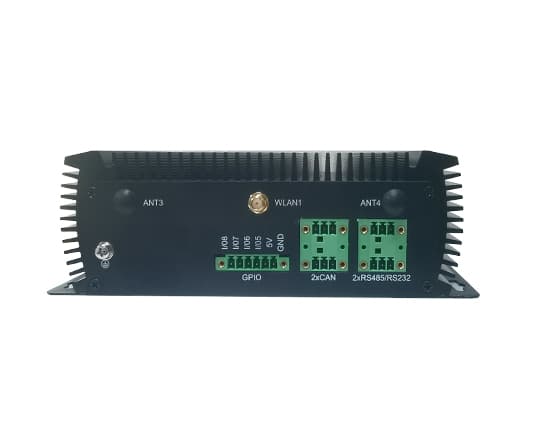

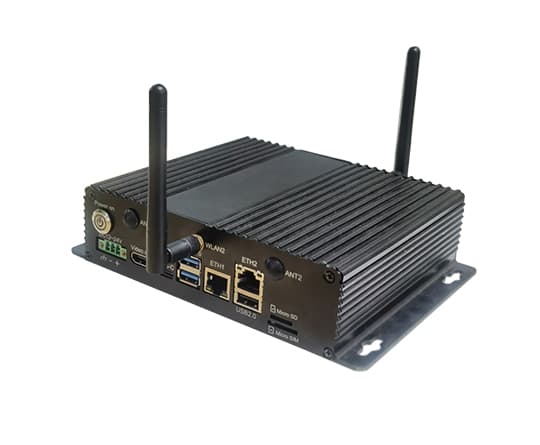

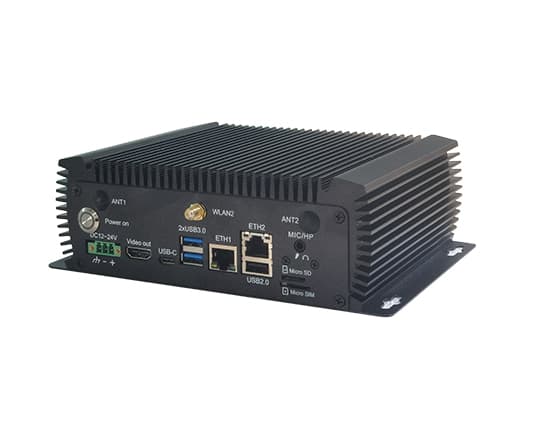

IBOX3588 RK3588 ARM-based Edge AI Embedded Industrial Computer
IBOX3588 RK3588 ARM-based Edge AI Embedded Industrial Computer
IBOX3588 RK3588 ARM-based Edge AI Embedded Industrial Computer
IBOX3588 RK3588 ARM-based Edge AI Embedded Industrial Computer
IBOX3588 RK3588 ARM-based Edge AI Embedded Industrial Computer
IBOX3588 RK3588 ARM-based Edge AI Embedded Industrial Computer
IBOX3588 RK3588 ARM-based Edge AI Embedded Industrial Computer
IBOX3588 RK3588 ARM-based Edge AI Embedded Industrial Computer

IBOX3588 RK3588 ARM-based Edge AI Embedded Industrial Computer

Features

◆  RK3588 Quad-core Cortex-A76 + Quad-core Cortex-A55 processor
◆  High-quality video output
◆  Rich interface for expansion
◆  Wi-Fi (6)/BT/4G/5G/ETH for communication
◆  Industrial-grade wide temperature design
◆  High computing power
◆  Deep learning acceleration
◆  Industrial longevity

Description
Specifications
Documentation

Introduction of This kind of Industrial Embedded PC

Vantron IBOX3588 Edge AI Embedded Industrial Computer is powered by Rockchip's latest flagship RK3588 AIoT chipset.
This embedded pc industrial is equipped with an 8-core 64bit CPU, an ARM Mali-G610 MP4 quad-core GPU, and a built-in AI acceleration NPU, capable of providing 6 TOPS computing power, adopting industrial edge computing technology and supporting mainstream deep learning frameworks.
The industrial embedded computer offers two Gigabit Ethernet ports, supports 2.4GHz/5GHz Wi-Fi 6 and Bluetooth 5.0, and provides an M.2 slot for 4G/5G expansion to keep communication uninterrupted.
Our embedded pc also supports 8K video decoding and encoding to deliver optimized display performance in the industrial field.
Since the industrial embedded computer provides rich interfaces, a wide range of peripherals can be connected for extended applications like ARM PC, edge AI computing, cloud servers, intelligent NVR, and other fields.
Moreover, the different operating systems embedded in the industrial PC provide a stable and secure system environment for users.
The industrial-embedded pc also has high-quality video output, bringing you a better usage experience.
We also adopt industrial technology, having the industrial-grade wide temperature design, which can guarantee industrial longevity, making our embedded PC be used for more years.

Competitive Advantage

Excellent picture display performance: Our industrial embedded PC supports 8k video encoding and decoding, with a display capability of 4k@30Hz.
Powerful edge AI computing acceleration performance: We can provide 6.0 TOPS computing power, which proves that our all-in-one panel PC has a shorter response time and better performance on processing data.
Rich interfaces: The interfaces on the arm industrial pc that can help with project development, making it simpler and faster, enhancing the development efficiency.
Supports multiple operating systems and AI frameworks: Our industrial embedded PC supports most mainstream operating systems like Android, Debian, and Ubuntu. Also, on the arm-based industrial PC, we have TensorFlow, Keras, PyTorch, Caffe, MXNet, and other AI network models that support a flexible layout of AI applications.
Cloud management solution: We provide a complete life cycle management program for customers. The Vantron IBOX3588 Edge AI Embedded Industrial Computer supports access to the Vantron BlueSphere MDM management platform. Also, it enables zero-touch registration and remote management of devices in the cloud.
OTA differential upgrade: The arm-based industrial pc can support BlueSphere OTA differential upgrade, which can perform unaware upgrades to help customers achieve version management.
Wide temperature design: The industrial embedded PC can be used at temperatures from -20 to 70. This shows that our edge hardware can adapt to extreme environments and can operate stably in high and low temperatures.
Service life: The embedded PCs have an industrial-grade service life, providing users with high stability and reliability.

Specifications
CPU
RK3588 Quad-core Cortex-A76 + Quad-core Cortex-A55, 2.4GHz (Max.)
GPU
ARM Mali-G610 MP4, Max. 1GHz
NPU
6 TOPS
Memory
LPDDR4 8GB, up to 32GB
Storage
eMMC 32GB, up to 128GB SSD supported by an M.2 M-Key/M.2 B-Key (256GB ~ 1TB)
Ethernet
2 x RJ45, 10/100/1000Mbps
4G/5G
Supported (expansion by an M.2 B-Key)
Wi-Fi & Bluetooth
Wi-Fi 802.11 a/b/g/n/ac/ax + BT 5.1
Display
1 x HDMI (4096 x 2160 @60Hz)
USB
2 x USB 3.0 Host, Type-A 1 x USB 2.0 Host, Type-A 1 x USB Type-C OTG
Serial port
2 x RS232/RS485 on the Phoenix terminal
Fan
1 x Built-in CPU fan connector
SIM card slot
1 x SIM card slot
Micro SD card slot
1 x Micro SD card slot
RTC
Supported
Watchdog
Supported
M.2 slot
1 x M.2 M-Key 2260/2280, PCIe 3.0 x 4, for SSD 1 x M.2 B-Key 2242/3052, USB3.0/SATA3.0, for 4G/5G/SSD
GPIO
4 x GPIO on the Phoenix terminal
CAN
2 x CAN on the Phoenix terminal
Button
1 x ON/OFF button (long press to reset)
LED
1 x LED indicator for power and system status
OS
Debian, Android
Language
English (default), Chinese
Device management platform
BlueSphere MDM (Android devices only)
OTA tool
BlueSphere OTA
Input
1 x Power distribution block (12V/5A, 24V/3A)
Dimensions
161.9mm x 141mm x 45.9mm (enclosure only) 190mm x 141mm x 45.9mm (with brackets)
Enclosure
Aluminum + metal plate, black
Weight
750g
Shock test
IEC 60068-2-27
Water and dust resistance
IP40
Temperature
Operating: 0℃~ +60℃ (Optional: -20℃ ~ +70℃); Storage: -40℃ ~ +85℃
Humidity
RH 0~95% (non-condensing)
Certification
FCC, CCC, UL
Product Name
IBOX3588 RK3588 ARM-based Embedded Industrial Computer
Documentation
Vantron IBOX3588 Edge AI Embedded Industrial Computer Datasheet - V2.0.pdf
IBOX3588 Edge AI Embedded Industrial Computer Datasheet
IBOX3588 Edge AI Embedded Industrial Computer User Manual -V1.6.pdf
IBOX3588 Edge AI Embedded Industrial Computer User Manual
