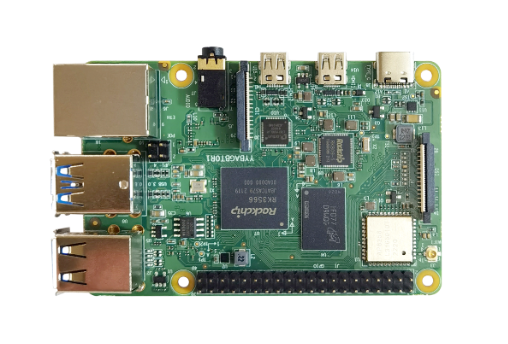

NiceLit Series RK3566/RK3568 Mini-sized ARM-based Single Board Computers

NiceLit Series RK3566/RK3568 Mini-sized ARM-based Single Board Computers

Features

◆ High-performance CPU & GPU
◆ Low power consumption
◆ Flexible expansion options
◆ Long service time
◆ Excellent display performance
◆ Compact size, complete function

Description

Specifications

Documentation

Vantron Technology recently unveiled NiceLit series to its embedded board family that features an efficient AI processing unit to provide quality computing power for lightweight AIoT applications.

NiceLit series is powered by Rockchip RK3568/RK3566 processor that integrates quad-core ARM Cortex-A55 CPU and Mali G52 GPU to provide optimized performance at lower power consumption, and offers 4K high-quality video decoding and 1080P encoding for better display performance. Compact as it is, yet this series provide a range of customer expansion options and supports multiple operating systems to meet the requirements of different application purposes.

NiceLit series targets at industrial customization markets of IoT endpoints and software platforms such as industrial panel PC, trail transit, banking, automotive control center, etc.

Specifications

Product Name

NiceLit Series ARM-based Single Board Computers

CPU

RK3568: Quad-core Cortex-A55, 2.0GHz (Max.) | RK3566: Quad-core Cortex-A55, 1.8GHz (Max.)

GPU

Mali-G52

Memory

4GB LPDDR4 (Optional: 8GB)

Storage

64GB eMMC 1 x Micro SD slot

Ethernet

1 x RJ45, 10/100/1000Mbps

Wi-Fi & BT

Wi-Fi 2.4GHz/5GHz & BT 5.0

Display

3568: 1 x Dual-lane MIPI DSI 2 x Micro HDMI, supporting 4K + 1080P (Extend mode supported) 3566: 2 x Micro HDMI, supporting 4K + 1080 (Duplicate mode supported)/3566

Camera

1 x MIPI CSI

Audio

1 x 3.5mm Combo audio jack

USB

2 x USB 2.0 Host, Type A 2 x USB 3.0 Host, Type A

GPIO

1 x GPIO/3568 3 x GPIO/3566

I2C

2 x I2C/3568 3 x I2C/3566

SPI

2 x SPI/3568 2 x SPI/3566

UART

5 x UART/3568 4 x UART/3566

CAN

2 x CAN/3568 NA/3566

PWM

NA/3568 2 x PWM/3566

Input

5V/3A DC, USB Type C

Operating system

Android 11, Debian 10

Device management platform

BlueSphere MDM (Android devices only)

OTA tool

BlueSphere OTA

Dimensions

85mm x 56mm x19.5mm

Temperature

Operating: -20℃~+70℃ Storage: -40℃~+85℃

Humidity

RH 5%-95% (Non-condensing)

Documentation

NiceLit Series Single Board Computers Datasheet

VT-SBC-RK3568-NT Single Board Computer User Manual

VT-SBC-RK3566-NT Single Board Computer User Manual
