Outdoor display systems must remain readable in direct sunlight while operating through changing temperatures, dust, rain, and continuous public use. Standard commercial displays often lack the brightness, thermal design, environmental protection, and impact resistance required for unattended installations in transportation hubs, public facilities, retail environments, and smart-city infrastructure.

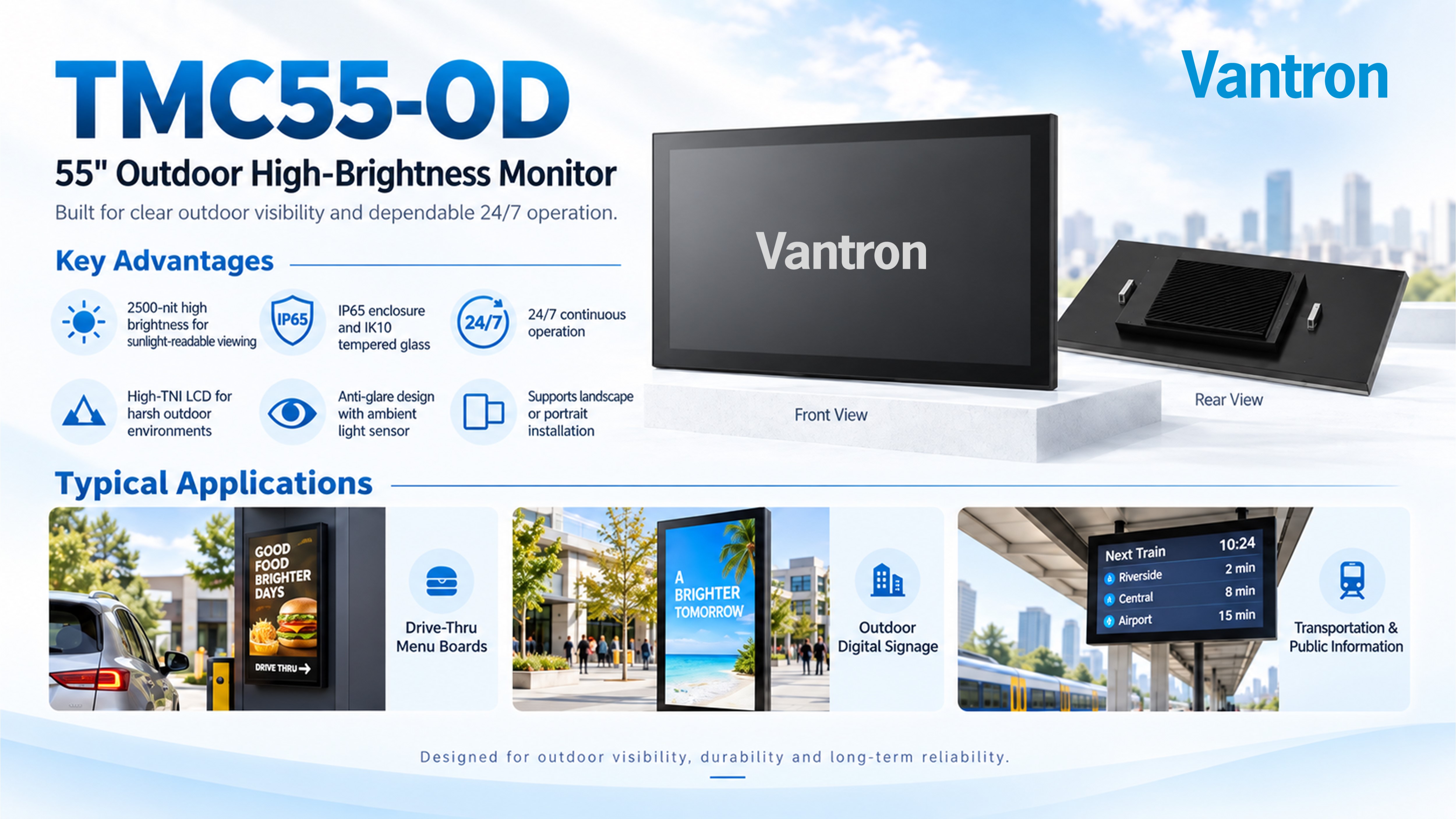

Vantron Technology introduces the TMC55-OD 55-inch Outdoor High-Brightness Monitor, a rugged Full HD display designed for continuous outdoor operation. Combining 2500-nit brightness, automatic brightness control, an IP65 enclosure, IK10-rated cover glass, and wide-temperature operation, the TMC55-OD provides a durable visual platform for digital signage and public information systems.

2500-Nit Display for Clear Outdoor Visibility

The 55-inch panel delivers Full HD 1920 × 1080 resolution and 2500-nit typical brightness, allowing content to remain visible in high-ambient-light environments. 178° horizontal and vertical viewing angles support clear viewing across public spaces, while the anti-glare surface treatment helps reduce distracting reflections.
An ambient light sensor automatically adjusts the backlight according to surrounding conditions, improving readability during the day while avoiding unnecessary brightness and power consumption at night. Brightness can also be controlled through RS232 for integration with a larger signage or facility-management system.

Optical Design for Flexible Public Display Installation

Optically bonded anti-reflective cover glass improves visual clarity by reducing internal reflections between the LCD and protective glass. The monitor also uses a Quarter-Wave Plate polarizer to support dependable viewing in varied orientations and conditions. Landscape and portrait installation options allow it to adapt to advertising, passenger information, wayfinding, menu-board, and public-notice applications.

IP65 and IK10 Protection for Unattended Environments

The TMC55-OD is built for public-facing locations where equipment may be exposed to weather, dust, and accidental or deliberate impact. Its IP65-rated enclosure protects against dust and water ingress, while IK10-rated tempered cover glass improves resistance to external impact. The 6H surface hardness and anti-glare treatment add further protection for long-term use. An anti-theft gyroscopic sensor and remote monitoring further support unattended deployment, helping operators identify abnormal movement and monitor display status across distributed installations.

Engineered for 24/7 Outdoor Operation

A high-TNI LCD rated to 105°C and a dedicated thermal design help the display manage heat generated by high-brightness operation and changing outdoor conditions. The TMC55-OD supports continuous 24/7 use across an operating temperature range of -20°C to +60°C.

The monitor accepts standard 100–240 V AC input and provides HDMI video input and RS232 control. A 400 mm × 400 mm VESA mounting pattern simplifies integration with common outdoor display structures, while an optional touch panel can support interactive public-service and wayfinding applications.

By combining sunlight-readable image quality, automatic brightness adjustment, environmental sealing, impact protection, and remote management features, the TMC55-OD gives integrators a practical display platform for outdoor digital signage, transit information, drive-through systems, public facilities, and smart-city deployments.
