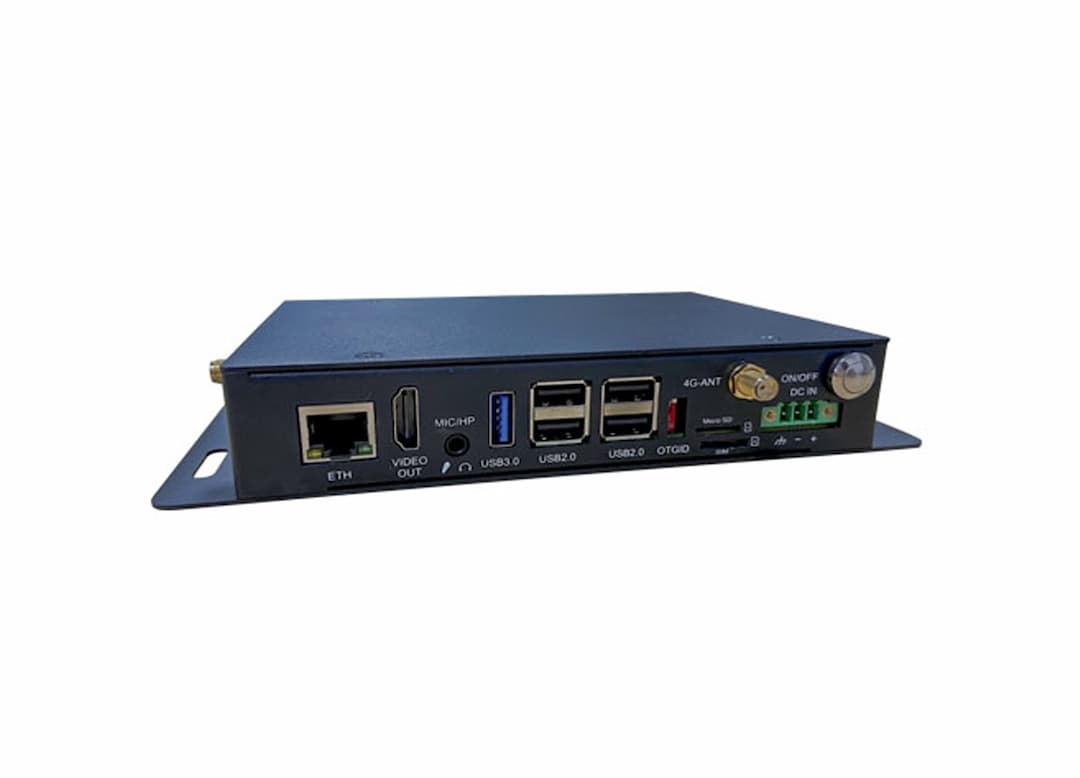

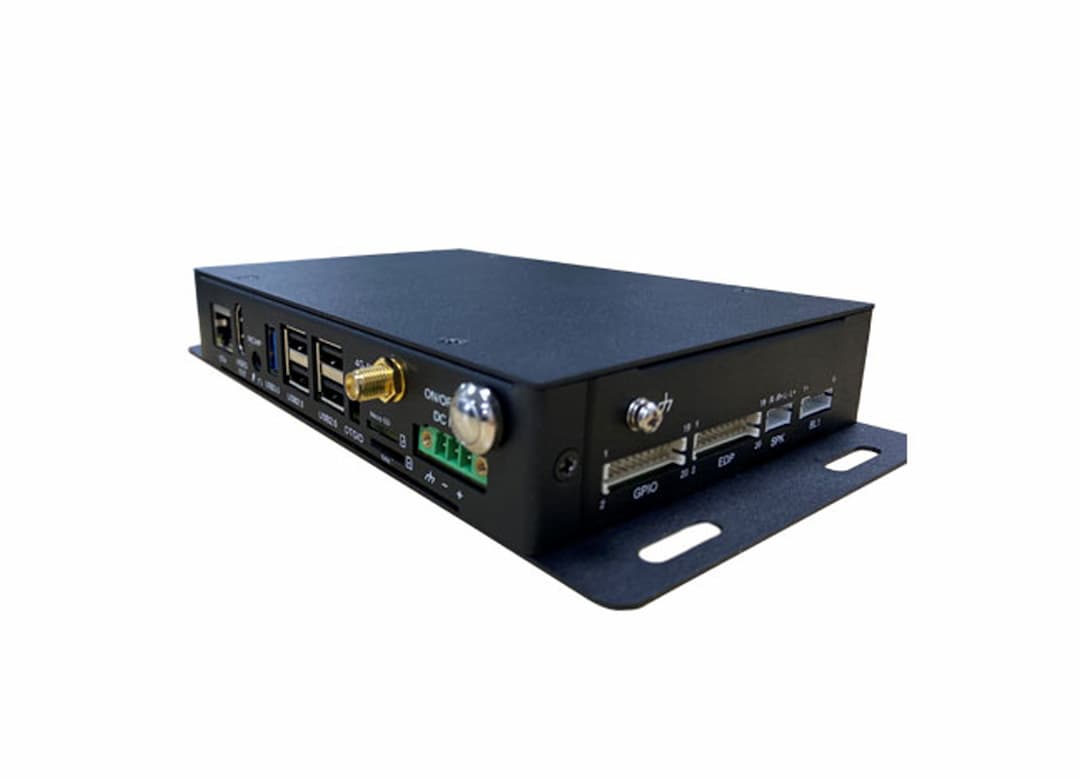

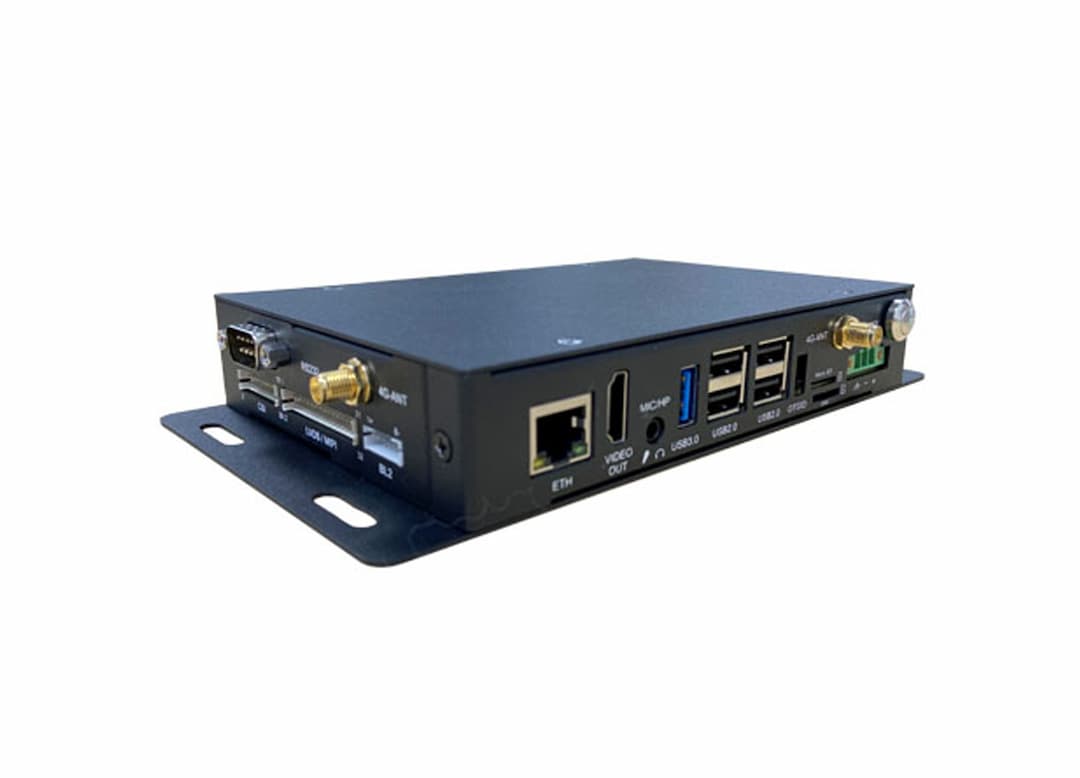

IBOX66 RK3566 ARM-based Multi-media Embedded Industrial Computer

IBOX66 RK3566 ARM-based Multi-media Embedded Industrial Computer

Features

◆ RK3566, Rockchip new generation processor

◆ 4GB Memory and 32GB Storage

◆ Android 11, GMS certified

◆ eDP/LVDS/MIPI interface for display

◆ 5 x USB, 2 x RS485, 2 x RS232/485

◆ Wi-Fi/BT/4G/ETH for communication

◆ Connectivity to Vantron Bluesphere for real-time tracking

Description

Specifications

Documentation

Vantron IBOX66 is a multi-functional embedded industrial computer designed for smart businesses. Running the Android 11 operating system, the high-performance industrial computer is GMS certified to enable customers to have unimpeded access to Google mobile services.

IBOX66 is powered by RK3566, a cost-effective multi-core processor developed by Rockchip. With 4GB memory and 32GB eMMC storage, it features quick access to data and ultra large capacity. As such, it is capable of dealing with huge volume of data in a timely manner.

As IBOX66 provides rich interfaces, a wide choice of peripherals can be connected for extended applications, including barcode scanners, cameras, barcode printers and keyboard plates. It also supports ultra-high-definition video outputs thanks to the high-performance video engine coupled with H.265 (HEVC) hardware decoding and 1080p/4K video decoding. Moreover, display interfaces of different specifications allow flexible application of the device in intelligent retailing, new retailing, financial self-service terminals, and other scenarios.

Specifications

CPU

Rockchip RK3566, Quad core, ARM Cortex-A55, 1.8GHz (Max)

Memory

4GB (up to 8GB)

Storage

32GB (up to 128GB) 1 x Micro-SD (up to 128GB)

Ethernet

1 x RJ45, 10M/100M/1000Mbps

4G LTE (AT&T, Verizon)

Optional

Wi-Fi & Bluetooth

Wi-Fi 802.11 a/b/g/n/ac + BT 5.0

Display

1 x HDMI, Type-A 1 x 4-lane eDP, 2560 x 1600 @60Hz 1 x 8-lane MIPI DSI (including 4 lanes multiplexed as LVDS), single-channel MIPI DSI: 1920 x 1080 @60Hz, LVDS: 720P @60Hz; dual-channel MIPI DSI: 2560 x 1440 @60Hz

Audio

1 x 3.5mm Combo audio jack

Speaker

1 x Speaker connector

Camera

1 x MIPI CSI-2, 2 x 10 x 2.0mm

Serial port

2 x RS232, DB9 Connector 2 x RS232/RS485, DB9 Connector

USB

4 x USB 2.0 Type-A (USB OTG supported) 1 x USB 3.0

SIM slot

1 x SIM card slot

GPIO

8 x GPIO, 3.3V

Watchdog

Supported

RTC

Supported

Mini-PCIe

1 x Mini-PCIe for 4G LTE module

Button

1 x ON/OFF button 1 x Reset button

LED

1 x Power LED (Red) 1 x System LED (Green) 1 x 4G LED (Green) 1 x User defined (Green)

Android 11, GMS certified (Optional: Linux OS)

Device management platform

BlueSphere MDM

Input

12V/24V 3A DC (±5%), 1 x 3 x 3.81mm

Consumption

15W

Dimensions

160mm x 110mm x 30mm (Enclosure only) 195mm x 110mm x 30mm (With mounting bracket)

Weight

680g

Temperature

Operating: 0℃~+60℃ Storage: -40℃~+85℃

Humidity

Operating: RH 5%~95% Storage: RH 5%~95%

Certification

FCC ESD: ±4KV (contact) and ±8KV (air)

Product Name

IBOX66 RK3566 ARM-based Embedded Industrial Computer

Documentation

IBOX66 Embedded Industrial Computer Datasheet

IBOX66 Embedded Industrial Computer User Manual
