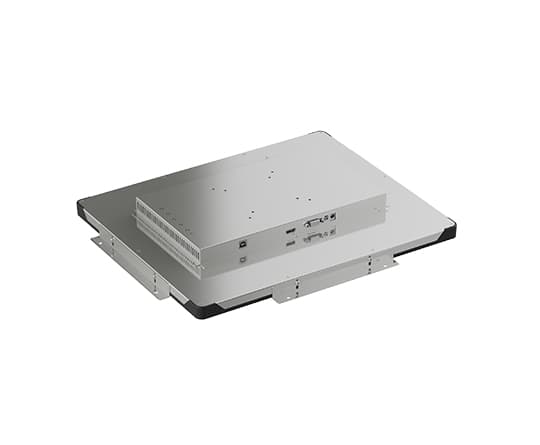

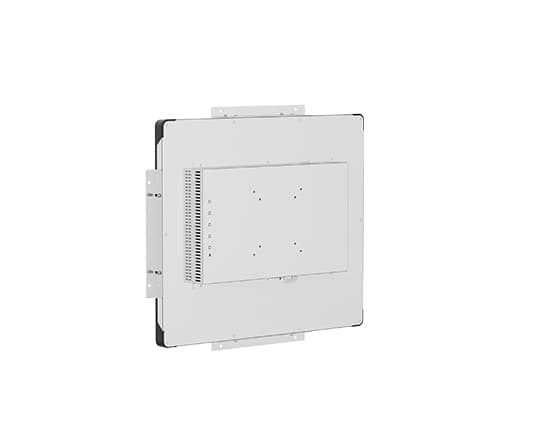

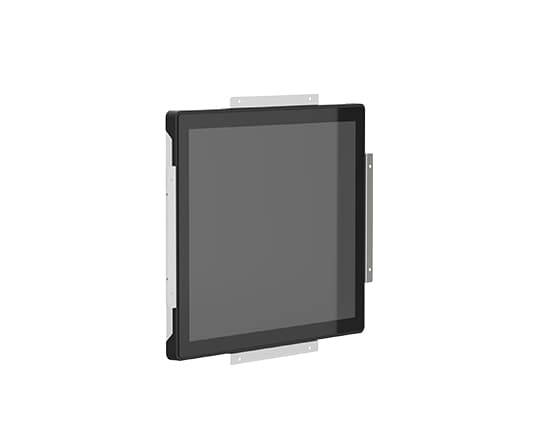

TMO190 19'' Open-frame Touch Touchscreen Monitor

Features

◆ 19.0” TFT LCD, 10-point PCAP touch screen

◆ High contrast ratio, broad active area

◆ AR/AG touch screen available

◆ Flexible installation

◆ Excellent longevity (50,000H MTBF)

◆ Vanity free, easy integration

Description
Specifications
Documentation

Vantron Technology offers open-frame touchscreen monitors that vary in screen size from 7 inches to 27 inches and resolution from 1024 x 600 to 1920 x 1080. When used with Vantron embedded computers, such touchscreen monitors will offer more flexible solutions for customers to meet the requirements of application in different scenarios such as industrial control, health care, education, retail, transportation, and finance.


TMO190 open-frame touchscreen monitor applies a 19-inch screen and features quick response time, large visible area and viewing angle to optimize the display performance. The screen is designed to be anti-fingerprint, and users have the option to equip the touchscreen with anti-glare and anti-reflection coatings that offer excellent visual experience and improve human-machine interaction accuracy. Moreover, TMO190 offers flexible installation options and OSD controls to enhance user experience.

Specifications
Diagonal size
19.0" TFT LCD with LED backlight
Aspect ratio
5:4
Resolution
1280 x 1024
Brightness
250 nits
Active area
377.32mm × 302.06mm
Contrast ratio
1000:1
Number of colors
16.7 M
Response time
15 ms
Viewing angle
Vertical: 170° Horizontal: 160°
Touch point
10-point PCAP touch screen
Touch control
Finger, stylus pen
Cover lens thickness
3mm
Surface treatment
Anti-fingerprint, tempered glass (Optional: Anti-glare / Anti-reflection)
Light transmittance ratio
>85%
Touch communication interface
USB 2.0
Video interface
1 x VGA 1 x HDMI
Audio interface
1 x Line out (Optional)
Dimensions
430.20mm x 354.94mm x 46.50mm (without brackets)
Weight
4.6kg (net)
Installation
VESA mount (100 x 100mm, 75 x 75mm) Side bracket mount
OSD
Built-in OSD (set up with OSD keys) Controls: Menu, Up, Down, Select, Power
Power input
12V DC
Power consumption
<18W
Language
Chinese and English
Adjustment of brightness, contrast ratio and color temperature
Supported
Humidity
RH 10%~90% (non-condensing)
MTBF
50,000 hours
Warranty
3 years
ESD
ESD: ±4KV (contact) and ±8KV (air)
Certificate
CCC, FCC, CE, UL
Product Name
TMO190 19" Open-Frame Touchscreen Monitor
Documentation
Vantron TMO190 19“ Open-frame Touchscreen Monitor Datasheet - V1.9.pdf
TMO190 Open-frame Touch Monitor Datasheet
Vantron TMO Series Open-frame Touchscreen Monitors User Manual -V1.3.pdf
Vantron TMO Series Open-frame Touchscreen Monitors User Manual
