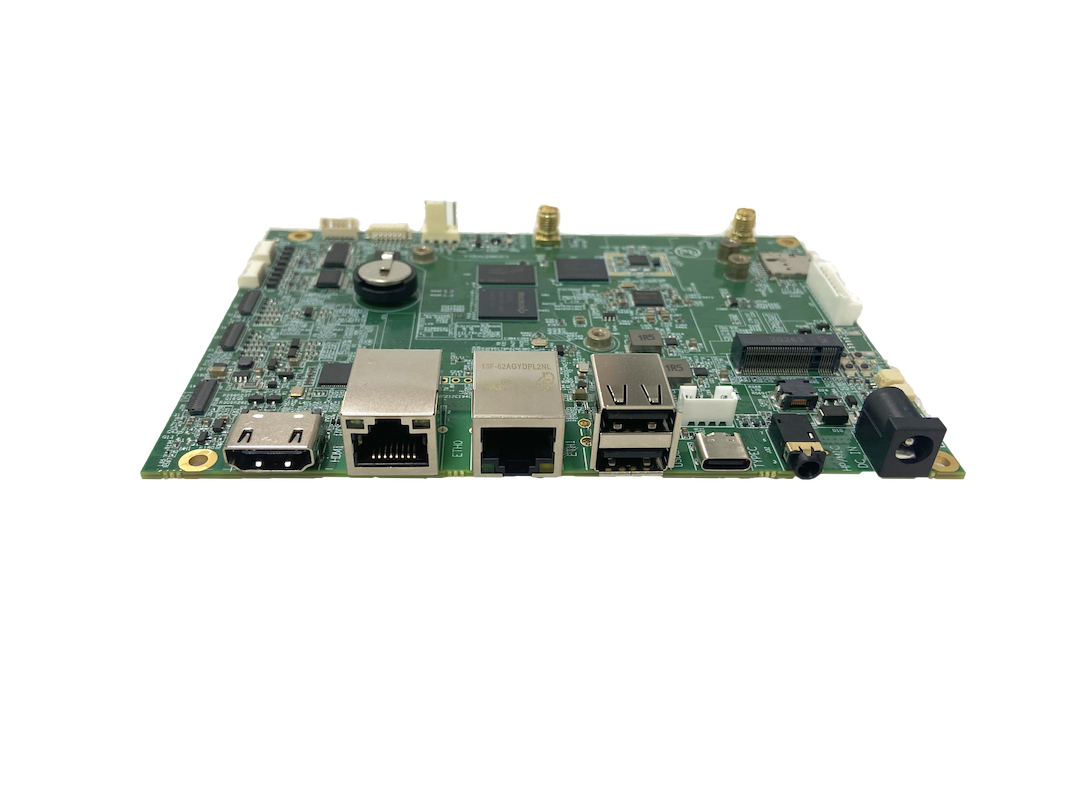

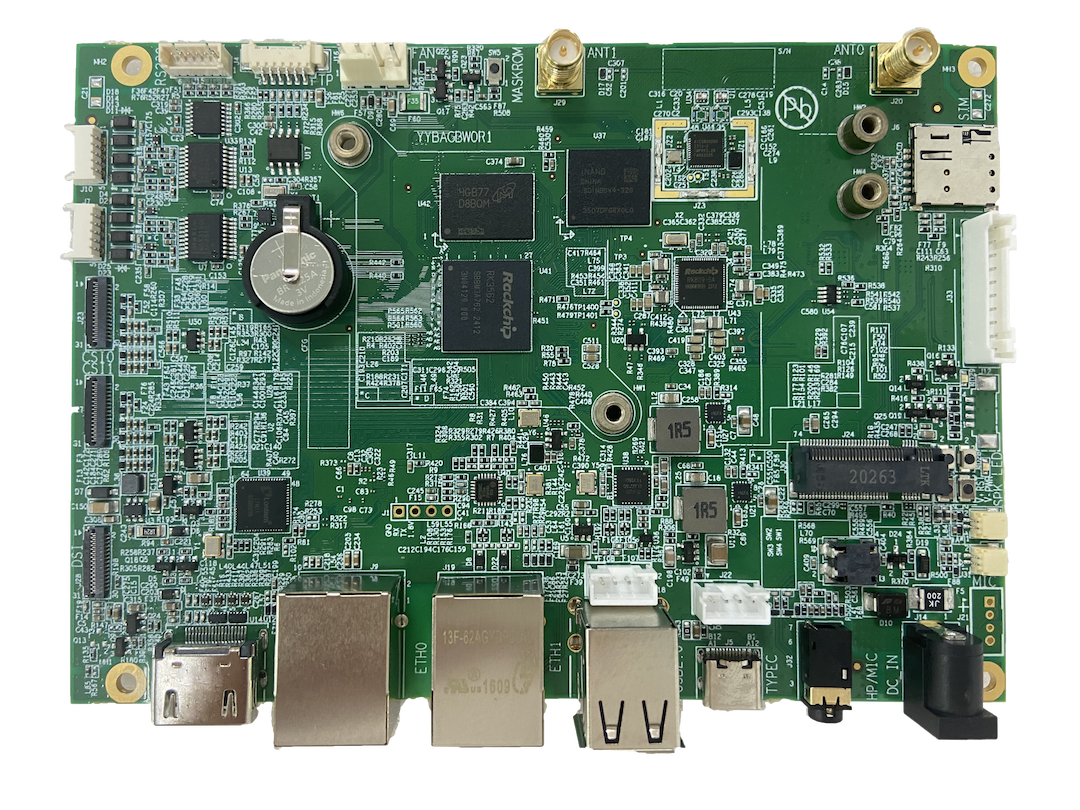

VT-SBC35-3562 RK3562 Single Board Computer

VT-SBC35-3562 single board computer comes in a 3.5-inch form factor that is easy to be integrated. The board is powered by the high-performance, low-power quad-core Rockchip RK3562 processor, which integrates an Arm Mali-G52 GPU for enhanced 2D/3D graphic  acceleration, supporting OpenGL ES1.1/2.0/3.2 OpenCL 2.0, and Vulkan 1.1. It offers video codec support including H.264 decoding at 1080p@60fps,  H.265decoding at 4K@30fps,  and  H.264 encoding at 1080p@60fps. The built-in NPU offers up to 1 TOPS processing performance, with support for mainstream deep-learning frameworks such as TensorFlow, TF-lite, Pytorch, Caffe, MXNet. The 13MP @30fps ISP with HDR capabilities is for capturing high-resolution images and smooth video footage for optimal interactive performance.

Connectivity options include both Megabit and Gigabit Ethernet  jacks,  a combo Wi-Fi 6 and Bluetooth 5.4 chipset,  and optional 4G/5G network for IoT applications. In addition, it provides rich peripherals for diverse applications such as commercial displays, live streaming devices, smart education controllers, smart home hubs, industry-specific tablets, and medical appliances.
