TPC101-RK3568-NT 10.1" Android/Linux All-in-one Panel PC

TPC101-RK3568-NT 10.1" Android/Linux All-in-one Panel PC

◆ RK3568 Quad-core ARM Cortex-A55 processor
◆ Ethernet/Wi-Fi/Bluetooth supported
◆ 10.1-inch TFT LCD, 1280 x 800, 300 nites
◆ Low-power, fanless design
◆ Front panel IP65 rated
◆ 12VDC in

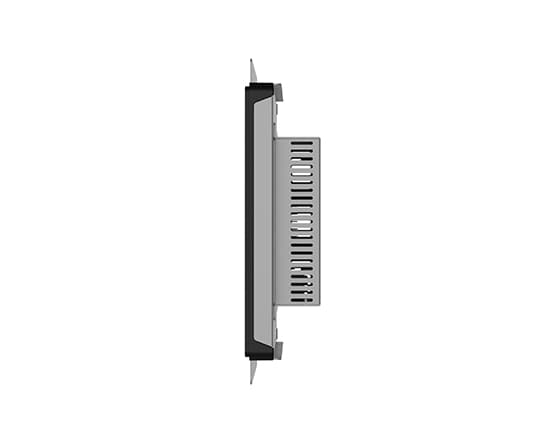

◆ Sleek appearance, side bracket installation

Description

Specifications

Documentation

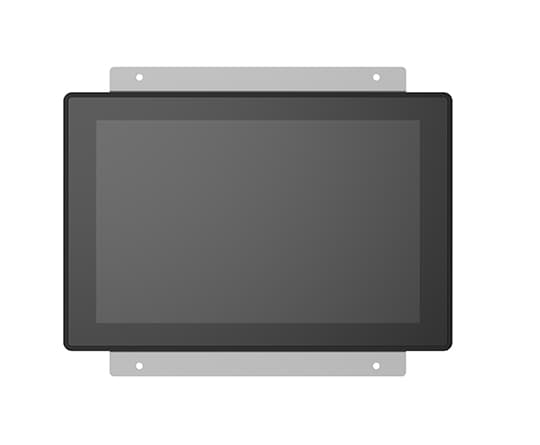

Vantron TPC101-RK3568-NT is an open-frame all-in-one panel PC, powered by Rockchip RK3568 quad-core high-performance processor. It features a 10.1-inch 10-point PCAP touchscreen monitor with 16:9 aspect ratio. TPC101-RK3568-NT supports both Android and Linux operating systems and offers rich interfaces for connection of different peripherals and displays, making it very suitable for application in self-service kiosks and multi-media terminals. The brackets also allow users to flush mount the device into any suitable openings for industrial control.

Vantron TPC series all-in-one panel PCs offer an overall solution that integrates the touchscreen monitor, display, processor, and software operating system, making them a first choice in IoT applications.

Specifications

Product Name

TPC101-RK3568-NT 10.1" Android/Linux All-in-one Panel PC

CPU

Rockchip RK3568, Quad-core ARM Cortex A55 processor, 1.8GHz (Max.)

Memory

4GB (Optional: 2GB)

Storage

64GB (Optional: 16GB/32GB)

Ethernet

1 x RJ45, 10/100/1000Mbps

Wi-Fi & BT

Wi-Fi 802.11 b/g/n/ac + BT 5.0

Display

10.1-inch TFT LCD

Contrast ratio

800:1

Resolution

1280 x 800 @60Hz

Aspect ratio

16:10

Brightness

300 nits

Viewing angle

85/85/80/80 (U/D/L/R)

10-point PCAP touch screen

Surface hardness

Surface treatment (Optional)

Anti-glare (AG) / anti-reflection (AR)

Light transmittance ratio

> 85%

USB

2 x USB 3.0 Type-A; 2 x USB 2.0 Type-A

RTC

Supported, scheduled on/off supported

WDT

Supported

Android 11, Linux

Device management platform

BlueSphere MDM (Optional)

OTA tool

BlueSphere OTA (Optional)

Input

12V DC; 1 x Power jack

Consumption

~ 15W

Dimensions

262.9mm x 174.9mm x 47.7mm (Panel cutout recommended: 258mm x 170mm)

Installation

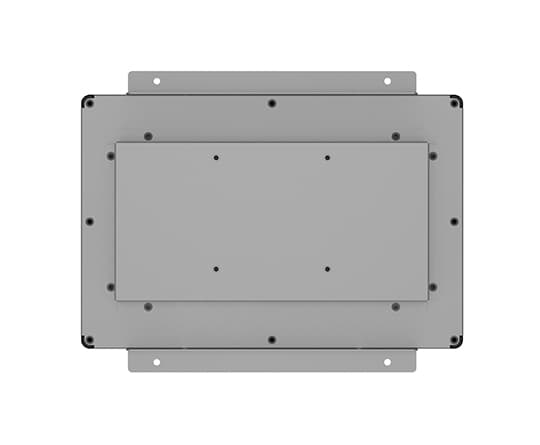

Side mounting; VESA mounting (70mm x 70mm, M4 x 10mm)

Protective features

IP65 (front panel only)

Weight

1.5kg

Heat dissipation

Fanless

Temperature

Operating: -10℃ ~ +50℃; Storage: -20℃ ~ +70℃

Humidity

Operating: RH 20% ~ 80% (Non-condensing); Storage: RH 10% ~ 90%

Certification

CCC, FCC

Documentation

Vantron TPC101-RK3568-NT 10.1” All-in-one Panel PC Datasheet
