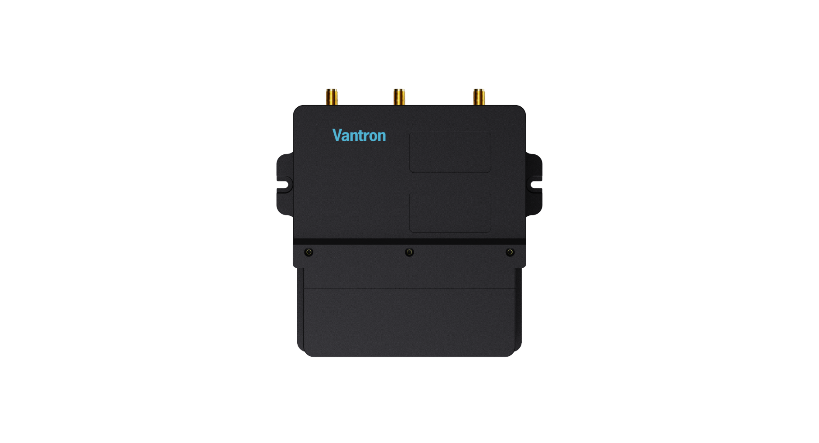

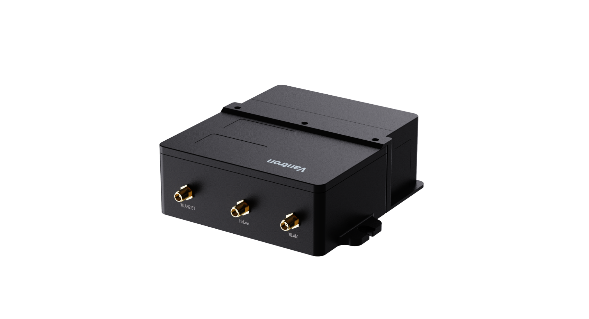

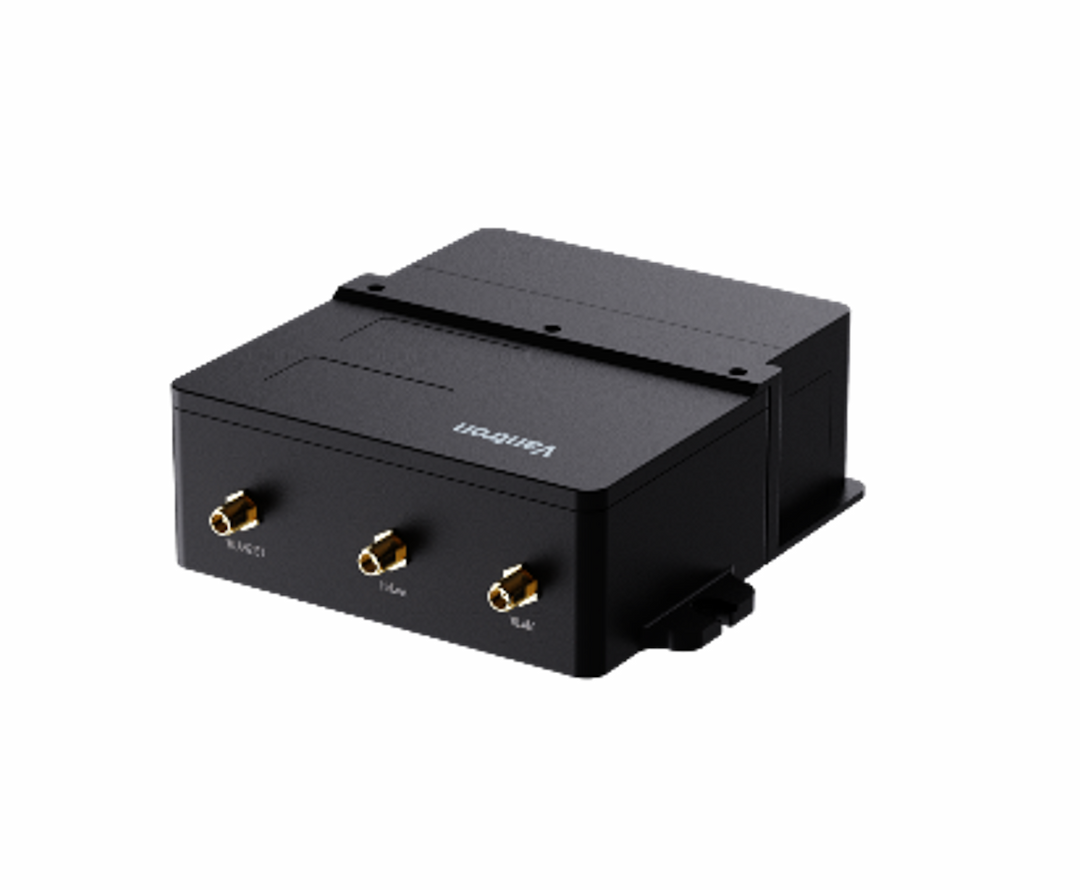

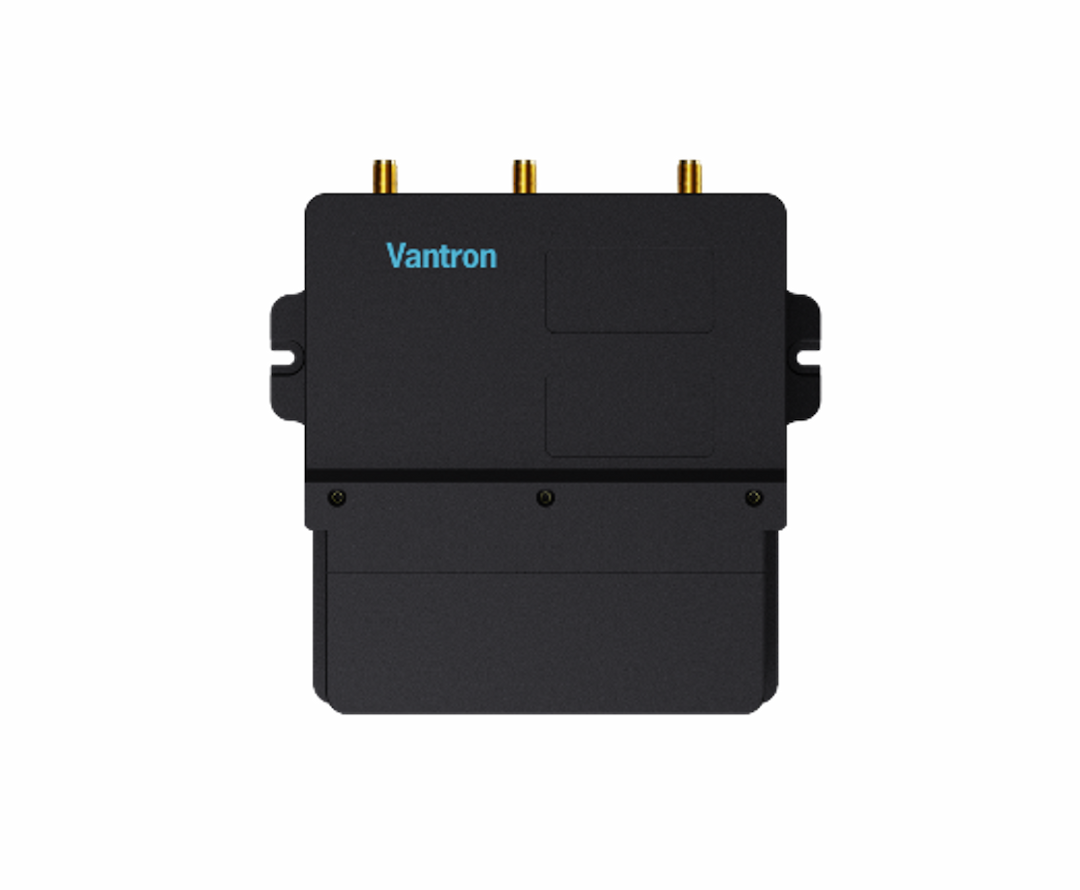

HAP103 Wi-Fi HaLow Access Point

Vantron HAP103 Wi-Fi HaLow access point conforms to the prominent IEEE 802.11ah (Wi-Fi HaLow) standard and IEEE 802.11 b/g/n (2.4GHz Wi-Fi). It supports up to 1km coverage at ultra-low power consumption while still delivering optimal performance with data rates up to 150 Mbps (2.4GHz Wi-Fi) and 32.5 Mbps (Wi-Fi HaLow), respectively. With IEEE 802.11ah complied, HAP103 supports stable connection of over 8,000 clients in AP mode, making it an ideal solution for replacing complex networking requirements in confined spaces.

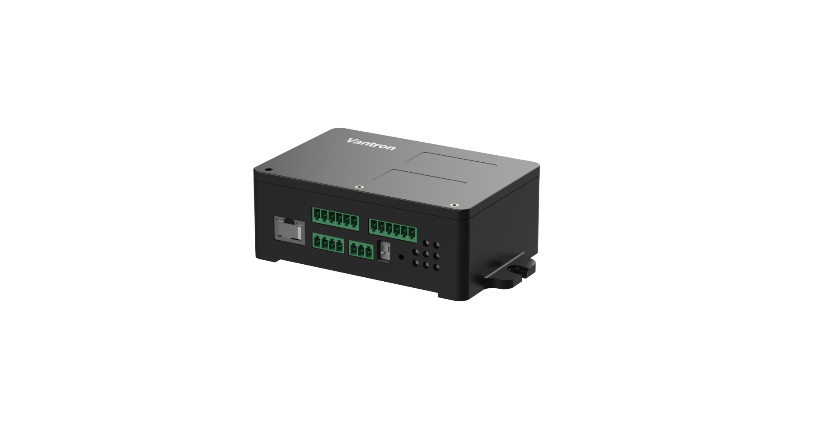

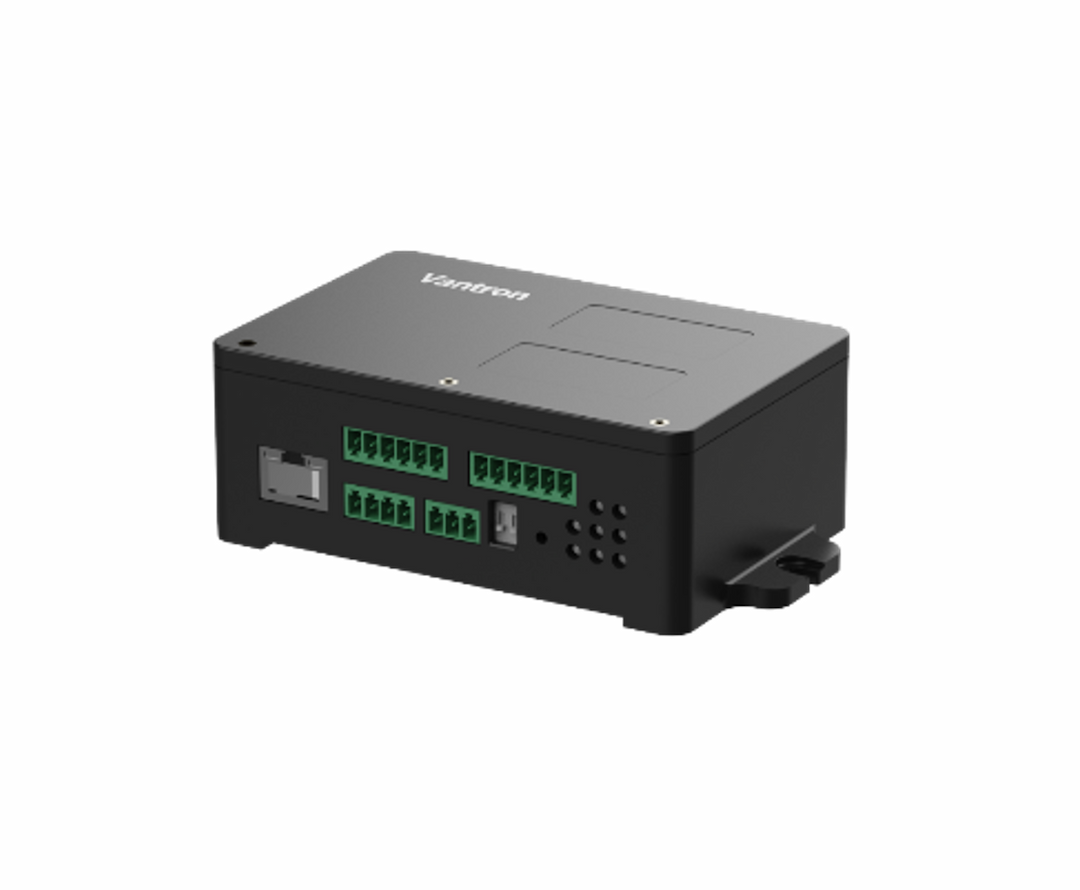

HAP103 provides user options including two Wiegand input connectors for data transmission in access control scenarios. The RS485 connector allows for flexible industrial data collection and transfer, and it can be switched to the debug mode to support device debugging. The optional PoE Powered Device (PD) feature eliminates the need for a separate power source, providing significant benefits in scenarios where efficient power management and connectivity are crucial.

HAP103 is designed for large-scale dense deployment of low-power stations to eliminate multiple access points in application scenarios such as access control systems, smart home appliances, surveillance systems, logistics and asset management, portables, and wearables.
