TPC101-APL 10.1" Windows All-in-one Panel PC
TPC101-APL 10.1" Windows All-in-one Panel PC
TPC101-APL 10.1" Windows All-in-one Panel PC
TPC101-APL 10.1" Windows All-in-one Panel PC
TPC101-APL 10.1" Windows All-in-one Panel PC
TPC101-APL 10.1" Windows All-in-one Panel PC
TPC101-APL 10.1" Windows All-in-one Panel PC
TPC101-APL 10.1" Windows All-in-one Panel PC

TPC101-APL 10.1" Windows All-in-one Panel PC

◆ Intel Atom® E3940 Quad-core high-performance processor
◆ Windows 10 IoT system, Linux distributions available
◆ 10.1-inch TFT LCD, 16:10, 1280 x 800
◆ Ethernet/Wi-Fi/Bluetooth/4G LTE supported
◆ Dual gigabit Ethernet ports
◆ Front bezel for true flat installation
◆ IP65-rated front panel

Description
Specifications
Resources

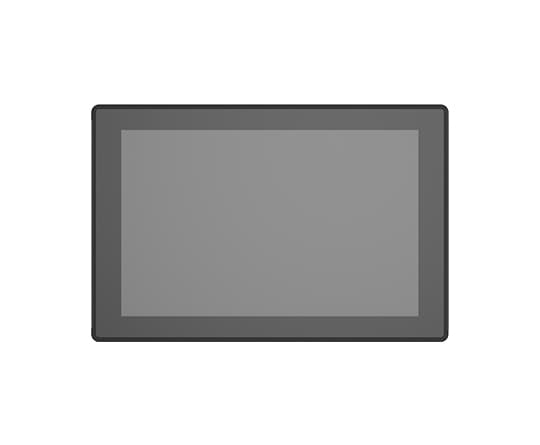

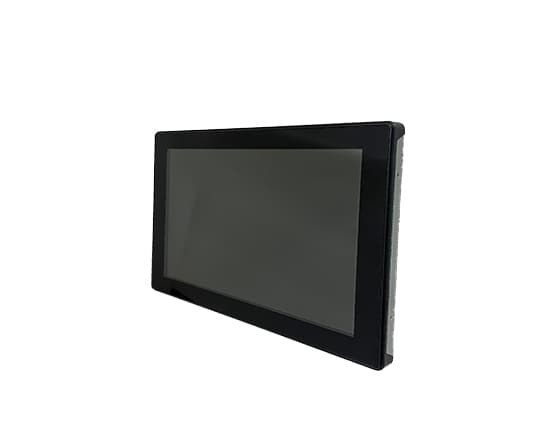

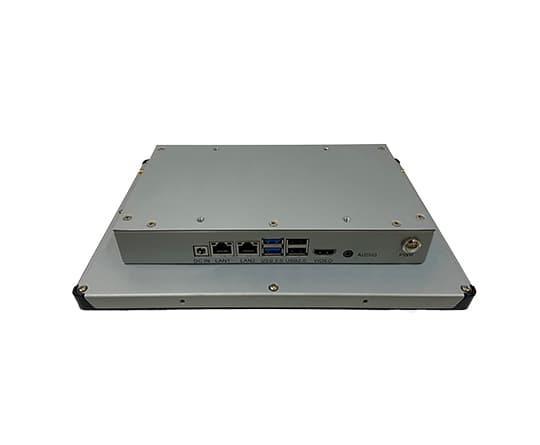

Vantron TPC101-APL is an open-frame 10.1" all-in-one panel PC, powered by the high-performance Intel Atom® E3940 processor. It features a 10-point PCAP touchscreen monitor with an aspect ratio of 16:10 and a resolution of 1280 x 800. TPC101-APL offers multiple configuration options. Its rich interfaces allow for connection of different peripherals and displays, making it very suitable to be applied in self-service kiosks and multi-media terminals. It offers both VESA pattern and side brackets for installation, enabling users to mount and maintain the device more flexibly for industrial control.


Vantron TPC series all-in-one panel PCs offer an overall solution that integrates the touchscreen monitor, display, processor, and software operating system, making them a first choice in IoT applications.

Specifications
CPU
Intel Atom®, APL-I E3940 Quad-core processor, 1.8GHz (Max.)
Memory
1 x DDR3L SO-DIMM socket, 8GB (Optional: 4GB)
Storage
64GB eMMC, SSD expansion supported (M.2 B-Key 2242)
Ethernet
2 x RJ45, 10/100/1000Mbps
Wi-Fi & BT
Wi-Fi 802.11 a/b/g/n/ac + BT 5.0
Cellular
Optional: 4G LTE
Display
10.1-inch TFT LCD
Resolution
1280 x 800 @60Hz
Brightness
300 nits
Contrast ratio
800:1
Aspect ratio
16:10
Viewing angle
85/85/80/80 (U/D/L/R)
Extended display
1 x HDMI, up to 3840 x 2160 @30Hz
TP
10-point PCAP touchscreen
Surface treatment
Optional: Anti-glare, anti-reflection
Surface hardness
6H
Cover lens
At least IK03 rated
Light transmittance ratio
> 85%
Audio
1 x 3.5mm combo audio jack
USB
2 x USB 3.0 Type-A, 2 x USB 2.0 Type-A
RTC
Supported
WDT
Supported
Button
1 x Power button
OS
Windows 10 IoT (Optional: Linux)
Input
12V~36V DC, 1 x Power jack
Power consumption
~ 15W
Dimensions
262.9mm x 174.9mm x 47.7mm (Panel cutout recommended: 258mm x 170mm)
Casing color
Silver gray
Installation
VESA mounting (100mm x 100mm, M4 x 10mm), side mounting
Weight
1.5kg
Protective feature
Front panel IP65 rated
Heat dissipation
Heatsink
Temperature
Operating: -10℃ ~ +50℃, storage: -20℃ ~ +70℃
Humidity
Operating: 20% ~ 80% RH (Non-condensing), storage: 10% ~ 90% RH (Non-condensing)
Certification
FCC
Warranty
2 years
Product Name
TPC101-APL 10.1" Windows X86-based AIO Panel PC
