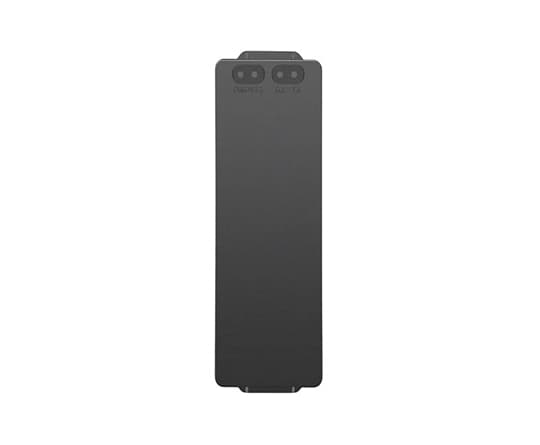

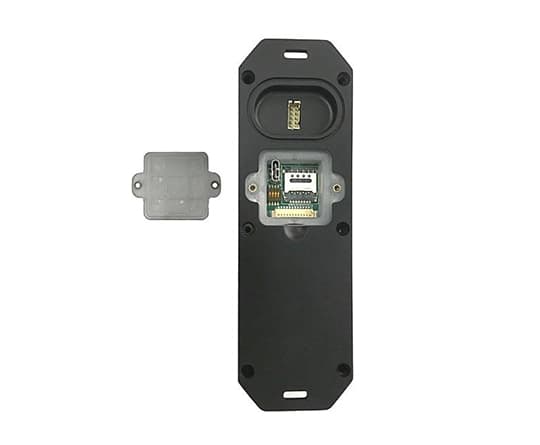

VT-IOT-Dongle Portable Gateway

◆ TI AM3352, 32-bit ARM Cortex-A8 processor
◆ Multiple communication technologies
◆ Reinforced design to adapt to rugged conditions
◆ Rich interfaces
◆ Portable, convenient installation
◆ Ultra-low power consumption
◆ SDK for customized development

Description

Specifications

Documentation

Vantron VT-IOT-Dongle is a cost-effective, portable gateway, featuring low power and high durability. It offers multiple networking modes such as Ethernet, 4G, Wi-Fi, Bluetooth, giving users much flexibility in connectivity.

Powered by TI AM3352 Cortex-A8 processor, the device is built to withstand tough environments with IP67 reinforcement, offering a power-saving solution for use in industrial areas. It also implements user interfaces with signals for 10/100 Base-T Ethernet, serial port, and power supply. Moreover, users can customize the system with the SDK provided.

Specifications

CPU

TI AM3352, 32-bit ARM Cortex-A8 low power processor, 600MHz

Memory

512MB DDR3L

Storage

16GB eMMC

Ethernet

1 x 100Mbps (alternative: 1 x SPI)

Wi-Fi & BT

On-board Wi-Fi 802.11 a/b/g/n/ac & BT 4.2

4G LTE

1 x Internal mini PCIe slot for 4G/LTE module

Serial port

1 x RS232/RS485

USB

1 x USB Type-C (OTG supported)

SIM slot

1 x Micro SIM slot

Antenna

Internal antennas

12-pin connector

1 x Serial debug port; 1 x SD signal

RTC

Supported

LED indicator

1 x Power indicator 1 x Status indicator 1 x TX indicator 1 x RX indicator

Dimensions

152mm x 48mm x 24.2mm

Weight

120g

Enclosure

Black plastic

Installation

Wall mounting

IP rating

IP67

Cooling mode

Fanless

Input

5V DC (Signal pins included in the user interface)

VantronOS (Optional: Linux)

Custom development

SDK available, Python supported

Northbound protocol

MQTT

Temperature

Operating: 0℃~+50℃ Storage: -20℃~+70℃ ETR: -40℃~+85℃ (Optional)

Humidity

Operating and storage: RH 5%~95% at 25℃-35℃ (non-condensing)

Certification

FCC, UL, CE, PTCRB

Product Name

VT-IoT-Dongle Portable Low-consumption Edge Computing Gateway
