TPC215-3288 21.5" Android All-in-one Panel PC
TPC215-3288 21.5" Android All-in-one Panel PC
TPC215-3288 21.5" Android All-in-one Panel PC
TPC215-3288 21.5" Android All-in-one Panel PC
TPC215-3288 21.5" Android All-in-one Panel PC
TPC215-3288 21.5" Android All-in-one Panel PC
TPC215-3288 21.5" Android All-in-one Panel PC
TPC215-3288 21.5" Android All-in-one Panel PC

TPC215-3288 21.5" Android All-in-one Panel PC

Quad-core Cortex-A17 high-performance processor
◆ WIFI/BT/4G wireless communication access
◆ 21.5-inch TFT LCD, 16:9 aspect ratio, 500 nit
◆ Low power, fanless heatsink
◆ IP65-rated front panel
◆ Anti-UV design to ensure reliability in sunlight exposure
◆ VESA mount option available

Description
Specifications
Resources

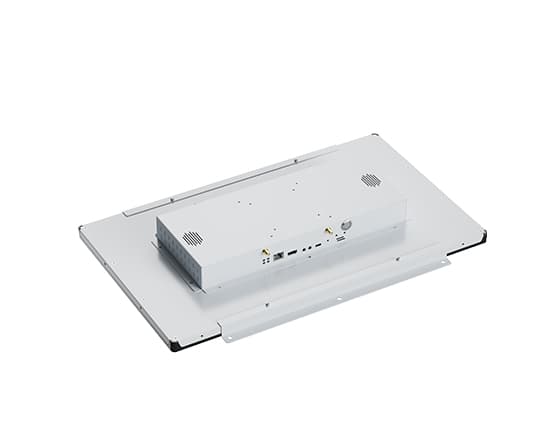

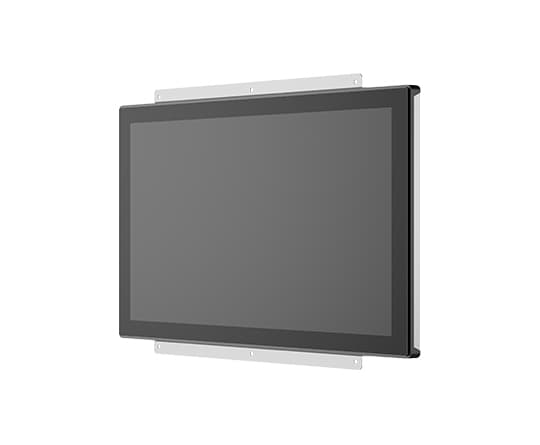

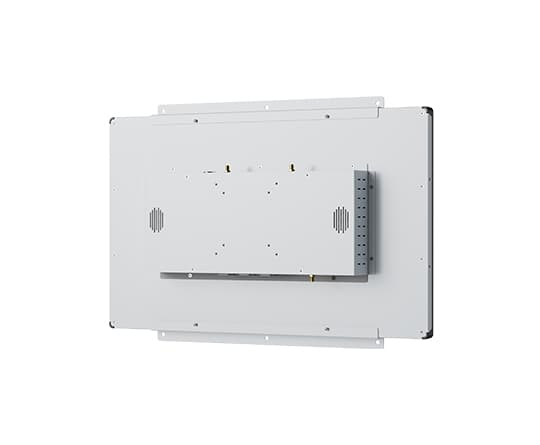

Vantron TPC215-3288 is a 21.5" open-frame all-in-one panel PC, powered by a quad-core high-performance processor. It features a 21.5-inch 10-point PCAP touchscreen monitor with 16:9 aspect ratio and runs Android 10 operating system. TPC215-3288 offers rich interfaces for connection of different peripherals and displays, making it very suitable for application in self-service kiosks and multi-media terminals.

The brackets and VESA holes also allow users to flush mount the device into any suitable openings for industrial control.
Vantron TPC series all-in-one panel PCs offer an overall solution that integrates the touchscreen monitor, display, processor, and software operating system, making them a first choice in IoT applications.

Specifications
CPU
Quad-core ARM Cortex-A17, 1.6GHz (Max.)
Memory
2GB (Optional: 4GB)
Storage
16GB (Optional: 32GB), 1 x Micro SD slot
Ethernet
1 x RJ45, 10/100/1000Mbps
Wi-Fi & Bluetooth
Wi-Fi 802.11 b/g/n + BT 4.0
4G LTE
1 x Mini PCIe for connection of the 4G LTE module
21.5" TFT LCD
Contrast ratio: 1000:1
Resolution: 1920 x 1080 @60Hz
Aspect ratio: 16:9
Brightness: 500 nits
Viewing angle: 89/89/89/89 (U/D/L/R)
External display
1 x HDMI, up to 4K @60Hz
TP
10-point PCAP touchscreen
Surface hardness
6H
Cover lens
At least IK03 rated
Light transmittance ratio
> 85%
Audio
1 x 3.5mm combo audio jack, built-in dual-track speakers
USB
1 x USB 2.0 Type-C, 6 x USB 2.0 Type-A
Serial port
6 x RS485/RS232
RTC
Supported
WDT
Supported
Button
1 x ON/OFF button
1 x Power indicator
1 x 4G indicator
1 x System indicator
1 x Wi-Fi indicator
OS
Android 10
Device management platform
BlueSphere MDM
OTA tool
BlueSphere OTA
Power input
12V/24V DC, 1 x 3-pin power terminal
Power consumption
~25W
Dimensions
527.4mm x 314.4mm x 60.7mm
Installation
VESA mounting (75mm x 75mm), side bracket mounting
Protective features
IP65, anti-UV
Heat dissipation
Heatsink
Temperature
Operating: -20℃~+60℃, storage: -20℃~+70℃
Certification
FCC
Product Name
TPC215-3288 21.5" Android ARM-based AIO Panel PC
