IBOX66 ARM-based Multi-media Embedded Industrial Computer

Vantron IBOX66 adopts a quad-core ARM Cortex-A55 processor running at a maximum frequency of 1.8GHz, equipped with scalable 4GB up to 8GB memory and 32GB expandable storage with a Micro SD card slot, delivering lightweight computing and storage capacity to handle concurrent multimedia decoding and multi-peripheral tasks smoothly.

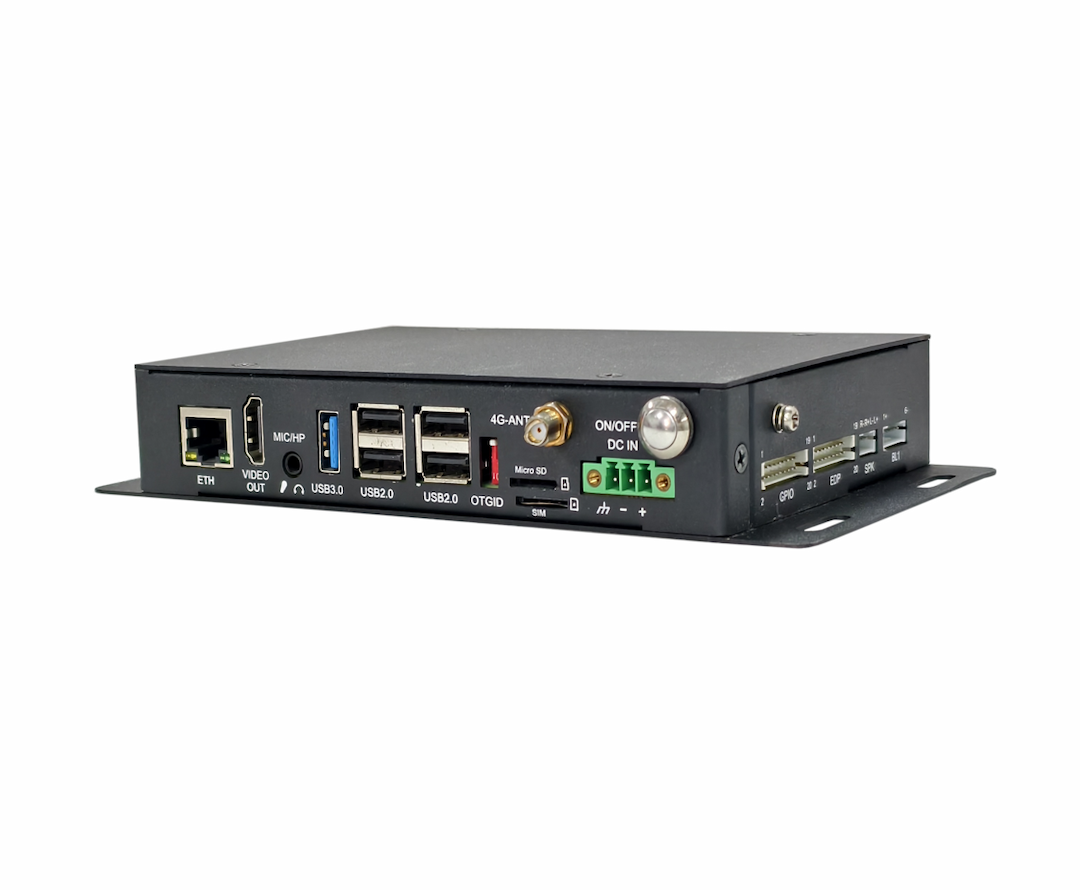

The IBOX66 integrates comprehensive multimedia interfaces including 4K HDMI, eDP, multiplexed MIPI DSI compatible with LVDS, dedicated audio jack, speaker connector and MIPI CSI camera port, supporting full audio and video capture and display for various visual terminal scenarios. In terms of communication, the device carries a gigabit RJ45 Ethernet port, Wi-Fi 802.11 a/b/g/n/ac paired with Bluetooth 5.0, and reserves a Mini-PCIe slot for optional 4G LTE module, realizing seamless wired and wireless network access. Abundant industrial I/O resources such as multi-channel RS232/RS485 serial ports, USB 2.0/3.0 interfaces, Micro SIM slot and 3.3V GPIO are provided.

A wide choice of peripherals can be connected for extended use, including barcode scanners, cameras, barcode printers and keyboard plates, allowing flexible application in intelligent retailing, new retailing, financial self-service terminals, and other scenarios.
