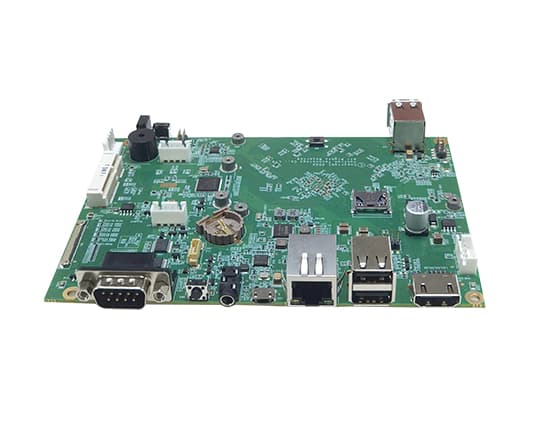

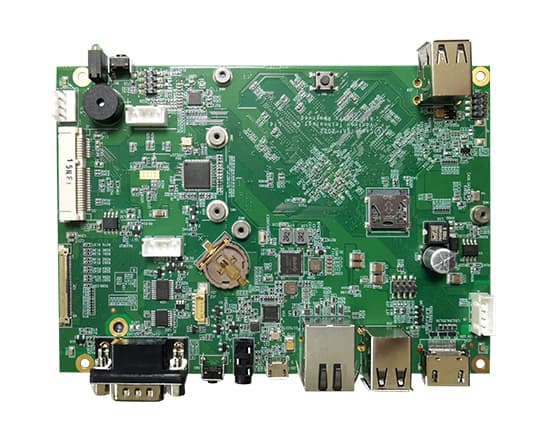

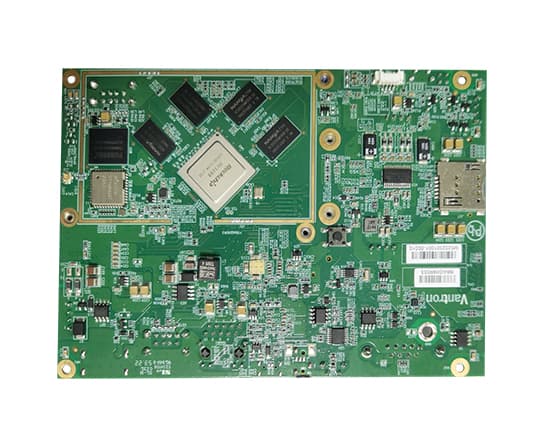

VT-SBC-RK35M RK3288 ARM-based Single Board Computer
VT-SBC-RK35M RK3288 ARM-based Single Board Computer
VT-SBC-RK35M RK3288 ARM-based Single Board Computer
VT-SBC-RK35M RK3288 ARM-based Single Board Computer
VT-SBC-RK35M RK3288 ARM-based Single Board Computer
VT-SBC-RK35M RK3288 ARM-based Single Board Computer
VT-SBC-RK35M RK3288 ARM-based Single Board Computer
VT-SBC-RK35M RK3288 ARM-based Single Board Computer

VT-SBC-RK35M RK3288 ARM-based Single Board Computer

Features

◆ Rockchip RK3288 processor

◆ 2GB DDR

◆ Rich interfaces, flexible expansion

◆ High-definition video encoding and decoding

◆ Ethernet/Wi-Fi & BT

◆ RTC supported

◆ USB 2.0

◆ Wide temperature range supported

Description
Specifications
Resources

Overview

The VT-SBC-RK35 is a compact 3.5’’ ARM-based Single Board Computer (SBC) engineered for industrial and IoT applications. Powered by the Rockchip RK3288 processor, it delivers robust performance with low power consumption. With advanced multimedia capabilities, extensive connectivity options, and an industrial-grade operating range, the VT-SBC-RK35M is ideal for many applications, including smart retail, industrial automation, and intelligent healthcare equipment.

Technological Advantages

1. Optimized Processing Power
- It is equipped with the Rockchip RK3288 processor, which integrates a quad-core ARM Cortex-A17 architecture and 2GB DDR memory, providing smooth multitasking and efficient data handling.

2. Advanced Multimedia Features
- Supports high-definition video encoding and decoding, ensuring superior visual performance for interactive and display-centric applications.
- Designed for multimedia-rich environments, including video walls, signage, and self-service terminals.

3. Comprehensive Connectivity
- Provides Ethernet and wireless connectivity options, including Wi-Fi and Bluetooth, for seamless data transmission and flexible deployment.
- Multiple USB 2.0 ports enable easy integration with peripherals and external devices.

4. Rich Interfaces and Flexible Expansion
- Offers a range of onboard interfaces and expansion options to meet diverse application needs, enhancing system scalability and adaptability.
- Compact form factor ensures effortless integration into existing systems.

5. Industrial-Grade Durability
- Operates reliably in harsh environments, supporting a temperature range from -20℃ to +60℃.
- Includes RTC (Real-Time Clock) for precise system timing, enhancing operational reliability in time-sensitive applications.

Application Scenario

The VT-SBC-RK35M Single Board Computer combines advanced processing, multimedia features, and industrial-grade reliability to deliver a versatile and cost-effective solution for modern industrial and IoT applications including smart retail, self-service terminals, industrial automation, intelligent medical health, and digital media.

Specifications
Product Name
VT-SBC-RK35M Rockchip Single Board Computer
CPU
Rockchip RK3288W, Quad-core ARM Cortex-A17 processor, 1.6GHz (Max.)
GPU
Mali-T764, up to 500MHz
Memory
2GB DDR
Storage
32GB eMMC 5.1; 1 x Micro SD slot
Ethernet
1 x RJ45, 1000 Mbps
Wi-Fi & BT
Wi-Fi 802.11a/b/g/n/ac + BT 5.0
4G LTE
Optional (Expansion via mini PCIe)
Display
1 x HDMI 2.0 Type-A; 1 x 4-lane eDP/Dual LVDS
Audio
1 x Audio connector; 2 x 3W/8R Speaker connector
Serial
1 x RS232 (DB9); 1 x RS232/RS485/RS422; 1 x RS232 for debugging (3.5mm audio jack)
USB
4 x USB 2.0 Type-A; 3 x USB 2.0 Host connector; 1 x Micro USB (OTG supported)
Sensor
1 x 3-axis accelerometer
Expansion
1 x Mini PCIe for 4G
RTC
Supported
Button
1 x Power button; 1 x Recovery/Volume + button; 1 x Reset button
LED indicator
2 x Status indicator
Input
9-36V DC (1 x 4 x 2.54mm power terminal)
Operating system
Android, Linux (Support upon request)
SDK
Available
Dimensions
146mm x 102mm
Cooling mode
Fanless, Heat sink
Temperature
Operating: 0℃~+50℃ (25℃ recommended) Storage: -20℃~+60℃ (25℃ recommended)
Humidity
Operating: RH 20%-80% (Non-condensing) Storage: RH 10%-90% (Non-condensing)
