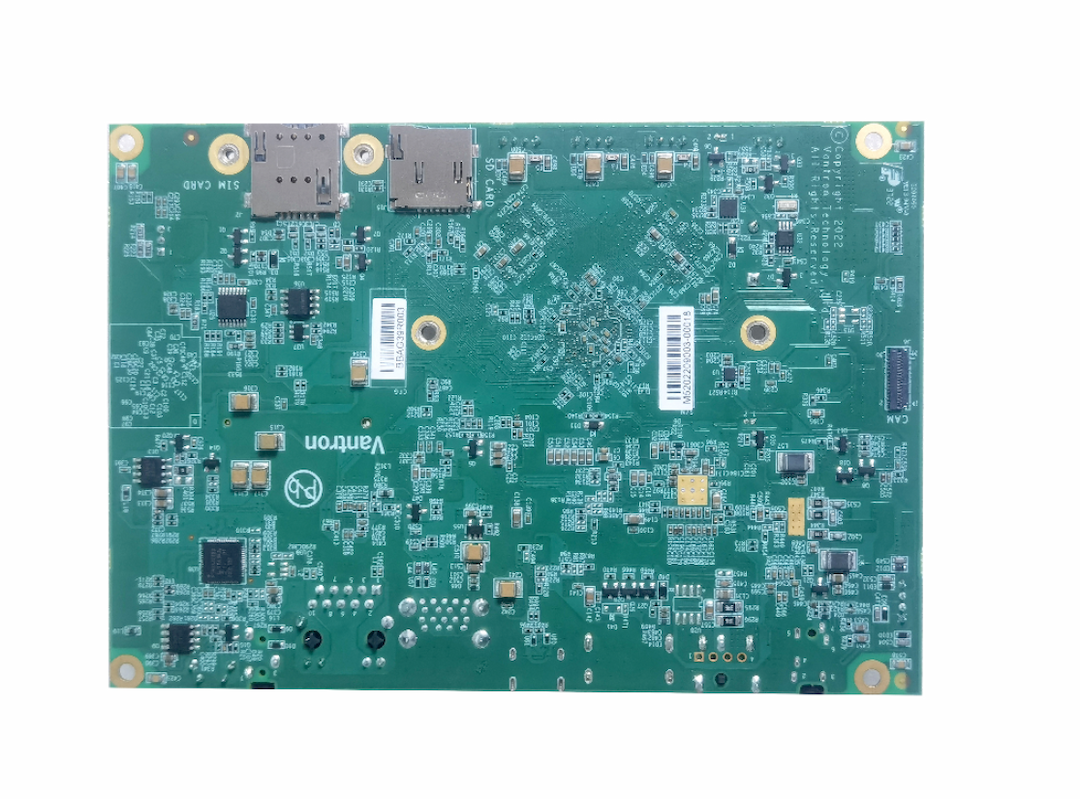

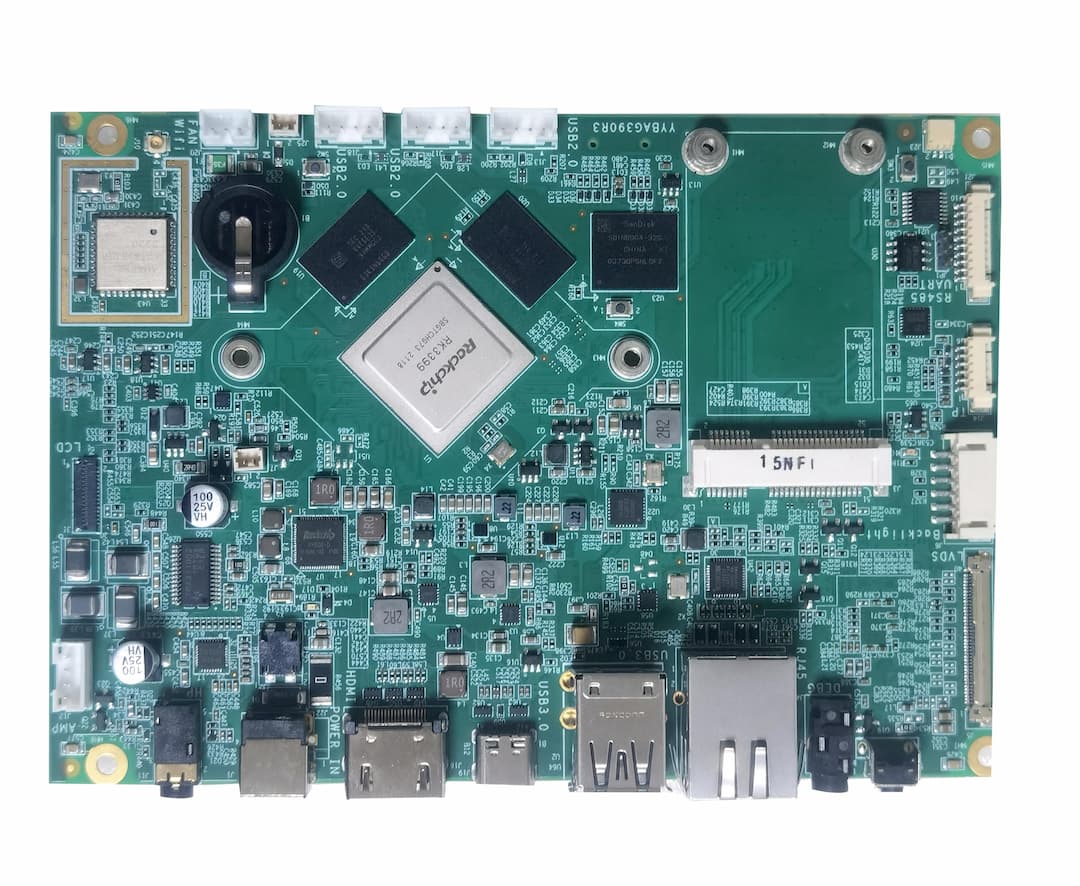

VT-SBC-3399 RK3399 ARM-based Single Board Computer
VT-SBC-3399 RK3399 ARM-based Single Board Computer
VT-SBC-3399 RK3399 ARM-based Single Board Computer
VT-SBC-3399 RK3399 ARM-based Single Board Computer
VT-SBC-3399 RK3399 ARM-based Single Board Computer
VT-SBC-3399 RK3399 ARM-based Single Board Computer

VT-SBC-3399 RK3399 ARM-based Single Board Computer

Features

◆ Rockchip RK3399 processor, dual-core Cortex-A72 and quad-core Cortex-A53

◆ 4GB LPDDR4 & 32GB eMMC

◆ Rich interfaces, flexible expansion

◆ Full HD video encoding and decoding

◆ Ethernet / Wi-Fi & BT / 4G LTE

◆ RTC supported

◆ Multiple USB 2.0 & USB 3.0

◆ Industry temperature grade

Description
Specifications
Documentation

VT-SBC-3399 Single Board Computer is powered by Rockchip RK3399 processor that integrates dual-core Cortex-A72 and quad-core Cortex-A53 to provide optimized performance at lower power consumption. It supports high-quality video encoding and decoding to maximize display performance. With both wired and wireless network accesses available, user data is kept safe and secure in transmission. Meanwhile, the board provides a complete set of on-board interfaces and customer expansion options to meet different application scenarios including smart retail, self-service terminals, industrial automation, intelligent medical health, and digital media.


Featuring high flexibility and high performance, VT-SBC-3399 is able to work under extreme environments, making it a reliable industrial IoT solution.

Specifications
CPU
Rockchip RK3399, dual-core ARM Cortex-A72 1.8GHz and quad-core ARM CortexA53 1.4GHz
Memory
4GB LPDDR4 (Optional: 2GB)
Storage
32GB eMMC 1 x Micro SD slot
Ethernet
1 x RJ45, 10/100/1000 Mbps
Wi-Fi & BT
Wi-Fi 802.11a/b/g/n/ac + BT 5.0
Display
1 x HDMI, up to 4K @60Hz 1 x MIPI DSI, up to 1920 x 1080 @60Hz 1 x Dual LVDS, 1920 x 1080 @60Hz / 1 x 4-channel eDP, 2560 x 1600 @60Hz
Camera
1 x 4-Lane MIPI CSI, 5 MP, OV5640
Audio
1 x 3.5mm Combo audio jack 1x Speaker connector
Serial
1 x RS485 2 X RS232 1 x RS232 for debugging
USB
1x USB 3.0 Host, Type-A 1 x USB 2.0 Host, Type-A 3 x USB 2.0 Host connector 1 x USB 3.0 Type-C (OTG supported)
RTC
Supported
Bus
1 x Mini PCIe for 4G LTE
Button
1 x Power button 1 x Reset button
Input
12V DC 1 x power jack
Operating system
Android, Linux
SDK
Available
Dimensions
146mm x 102mm
Cooling mode
Fanless
Temperature
Operating: 0℃~+60℃ Storage: -40℃~+85℃
Humidity
RH 5%-95% (Non-condensing)
Product Name
VT-SBC-3399 ARM-based Single Board Computer
Documentation
VT-SBC-3399 Single Board Computer Datasheet - V2.1.pdf
VT-SBC-3399 Single Board Computer Datasheet
VT-SBC-3399 Single Board Computer User Manual - V1.5 (1).pdf
VT-SBC-3399 Single Board Computer User Manual
