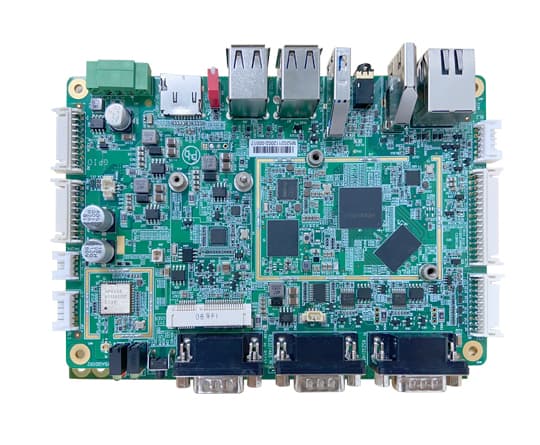

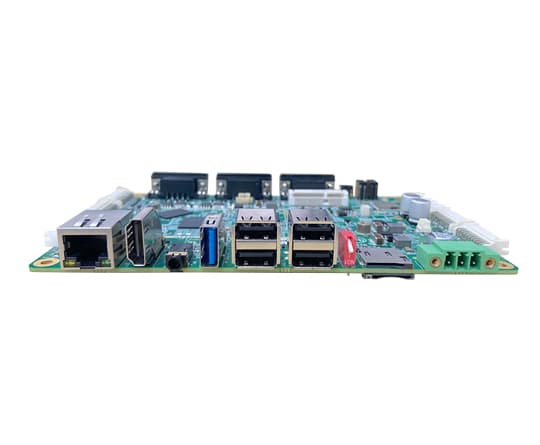

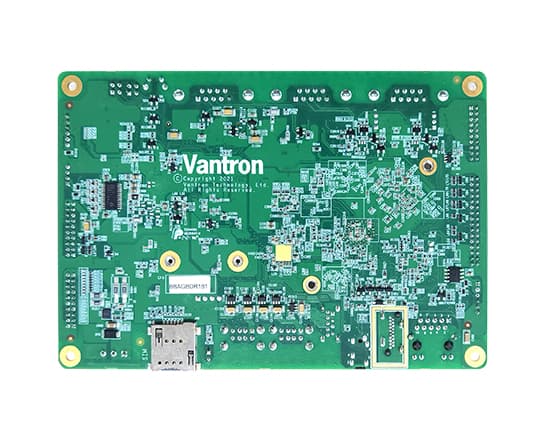

VT-SBC-RK66 RK3566 ARM-based Single Board Computer
VT-SBC-RK66 RK3566 ARM-based Single Board Computer
VT-SBC-RK66 RK3566 ARM-based Single Board Computer
VT-SBC-RK66 RK3566 ARM-based Single Board Computer
VT-SBC-RK66 RK3566 ARM-based Single Board Computer
VT-SBC-RK66 RK3566 ARM-based Single Board Computer
VT-SBC-RK66 RK3566 ARM-based Single Board Computer
VT-SBC-RK66 RK3566 ARM-based Single Board Computer

VT-SBC-RK66 RK3566 ARM-based Single Board Computer

Features

◆ RK3566, Rockchip quad core processor

◆ 4GB Memory and 32GB Storage

◆ Android 11, GMS certified

◆ eDP/LVDS/MIPI interface for display

◆ 5 x USB, 4 x COM port

◆ Wi-Fi/BT/4G/ETH for communication

Description
Specifications
Resources

Overview

The VT-SBC-RK66 is a versatile, ARM-based Single Board Computer designed to meet the needs of next-gen embedded IoT applications. Powered by the Rockchip RK3566 quad-core processor, it combines high performance, cost efficiency, and robust functionality. Running the Android 11 operating system and GMS-certified, the VT-SBC-RK66 ensures seamless integration with Google Mobile Services, making it an ideal solution for developers and businesses requiring reliable and secure Android platforms.

Technological Advantages

1.Powerful Performance
- Equipped with the Rochchip RK3566 quad-core processor, the VT-SBC-RK66 RK3566 Single Board Computer delivers efficient performance tailored for multimedia-rich and data-intensive applications.
- 4GB memory and 32GB eMMC storage provides fast data access and ample storage capacity, enabling smooth operation and responsiveness.

2.Extensive Display and Video Capabilities
- Supports eDP, LVDS, and MIPI interfaces for diverse display options, catering to a wide range of embedded system requirements.
- Integrated HEVC hardware decoding and support for up to 1080p/2K resolution provide ultra-high-definition video output, ideal for multimedia applications.

3.Flexible Connectivity Options
- Offers robust connectivity through Wi-Fi, Bluetooth, 4G, and Ethernet, enabling uninterrupted communication across various application scenarios.
- Five USB ports and four COM ports ensure compatibility with a wide range of peripheral devices, including barcode scanners, cameras, barcode printers, and keyboard plates.

4.Customizable and Scalable
The board's extensive peripheral interfaces and Android SDK make it easy to develop tailored solutions for specific use cases, offering scalability and flexibility for evolving needs.

Application Scenarios

The VT-SBC-RK66 Single Board Computer’s advanced video engine and high-definition display capabilities make it an excellent choice for multimedia systems. For example:


1.Smart Retailing and New Retail
The VT-SBC-RK66 excels in intelligent retail systems. It can easily integrated into retail terminals like smart POS, digital signage, and self-service kiosks. Its support for multiple display interfaces and robust video output ensures visually appealing and interactive experiences for end-users.


2.Financial Self-Service Terminals
The Single Board Computer is ideal for financial applications such as self-service payment terminals, and interactive kiosks, ensuring smooth operation and data integrity.

Specifications
Display
1 x HDMI, Type-A, up to 4K ×2 K@60Hz 1 x 4-lane eDP, 2K@60Hz 1 x 8-lane MIPI DSI connector (including 4 lanes multiplexed with LVDS): single-channel MIPI DSI: 1080P@60Hz, LVDS: 720P @60Hz; dual-channel MIPI DSI: 2K@60Hz
CPU
Rockchip RK3566, Quad core, ARM Cortex-A55, 1.8GHz (Max)
Memory
4GB
Ethernet
1 x RJ45, 10M/100M/1000Mbps
4G/LTE
Supported (expansion by mini PCIe)
Audio
1 x 3.5mm combo audio jack
Speaker
1 x Speaker connector
Camera
1 x MIPI CSI-2, 2 x 10 x 2.0mm
USB
4 x USB 2.0 Type-A (USB OTG supported) 1 x USB 3.0
SIM slot
1 x SIM card slot
GPIO
8 x GPIO, 3.3V
RTC
Supported
Watchdog
Supported
Mini-PCIe
1 x Mini-PCIe for 4G/LTE module
Button
1 x Reset button
LED
1 x 4G LED, 1 x Power LED, 1 x User defined, 1 x System LED
OS
Android 11, GMS certified (Optional: Linux OS)
Device management platform
Vantron BlueSphere
Dimensions
155mm x 105mm x 21.5mm
Temperature
Operating: 0℃~+60℃ Storage: -40℃~+85℃
Humidity
Operating: RH 5%~95% Storage: RH 5%~95%
Storage
32GB (up to 128GB) 1 x Micro SD slot (up to 128GB)
Certification
FCC ESD: ±4KV (Contact) and ±8KV (Air)
Input
12V/24V 3A DC (±5%), 1 x 3 x 3.81mm terminal
Product Name
VT-SBC-RK66 Rockchip Single Board Computer
Wi-Fi & BT
Wi-Fi 802.11 a/b/g/n/ac + BT 5.0
Serial port
1 x RS232, DB9 2 x RS232/485, DB9 1 x RS232, pin header
