Product / IBOXG520 Edge AI Embedded Industrial Computer

IBOXG520 Edge AI Embedded Industrial Computer

Name: IBOXG520 Edge AI Embedded Industrial Computer
Brand: Vantron
SKU: IBOXG520
Availability: InStock

• High-performance, low-power edge AI processor
• 8GB LPDDR5 + 64GB UFS2.2 for edge deployments
• 9 TOPS of computing performance for AI inference
• 4K@30 & 4K@60 H.265/H.264 video codec
• Rich I/O: DP, USB, RS485/232, CAN FD, GPIO, etc.
• Flexible connectivity via GbE, Wi‑Fi 6 and Bluetooth 5.4
• Multi-OS support: Android, Linux Yocto
• Industrial-grade wide-temp & wide-voltage support

Description

Specifications

Resources

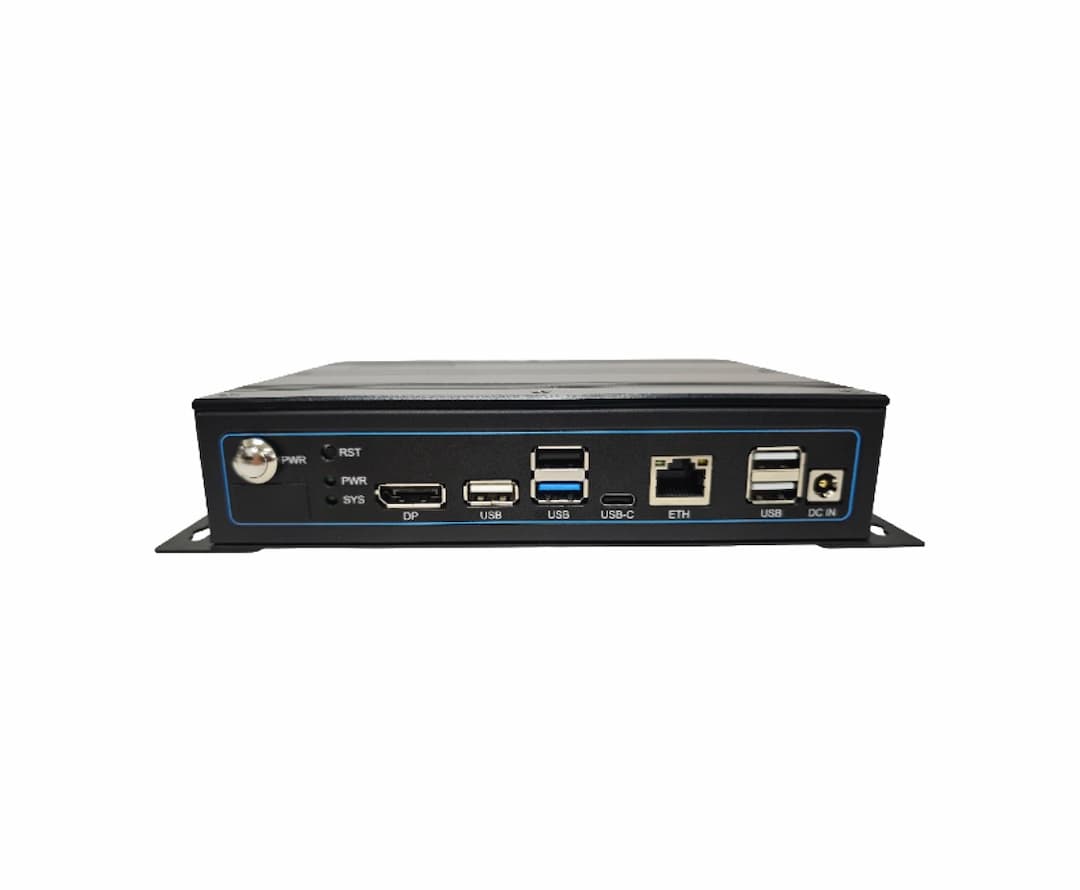

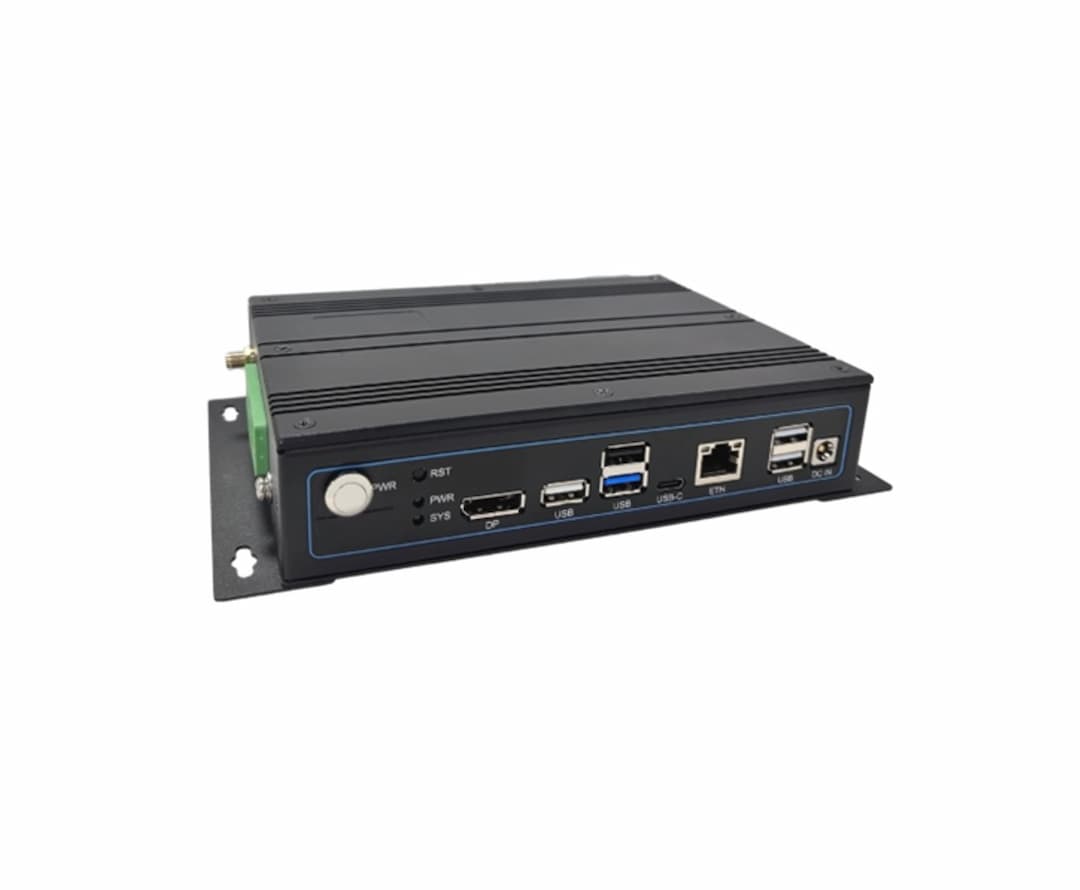

Vantron IBOXG520 is a high-performance edge AI embedded industrial computer, engineered to deliver exceptional computing power for edge AI and industrial applications. Powered by the MediaTek MT8371 chipset, the product integrates an octa-core high-performance processor, an Arm Mali-G57 MC2 GPU and a MediaTek 8th-generation NPU, offering a maximum computing power of 9 TOPS.

IBOXG520 supports 4K@30fps H.265/H.264 video encoding and 4K@60fps H.265/H.264/VP9/AV1 video decoding. Complemented by rich expandable I/O interfaces and robust networking capabilities, the product is perfectly tailored for diverse high-precision and high-reliability applications including edge AI computing, industrial automation, intelligent traffic management, mobile robots, AGVs, machine vision inspection, and interactive kiosks.

Specifications

Product Name

IBOXG520 MediaTek MT8371 Edge AI Box PC

CPU

MediaTek MT8371 (G520), dual-core ARM Cortex-A78 (2.2 GHz) + hexa-core ARM Cortex-A55 (2.0 GHz)

GPU

Arm Mail G57 MC2, 880MHz, API support: OpenGL ES 3.2, Vulkan 1.1, OpenCL 2.2

NPU

MediaTek 8th-gen NPU, 9 TOPS

Memory

8GB LPDDR5

Storage

64GB UFS2.2; 1 × Micro SD slot

Ethernet

1 × RJ45, 10M/100M/1000Mbps (with TSN support)

Wi-Fi & Bluetooth

Wi-Fi 6: IEEE 802.11 a/b/g/n/ac/ax + Bluetooth 5.4

Video

1 × DP1.4, up to 3840 x 2160@60Hz

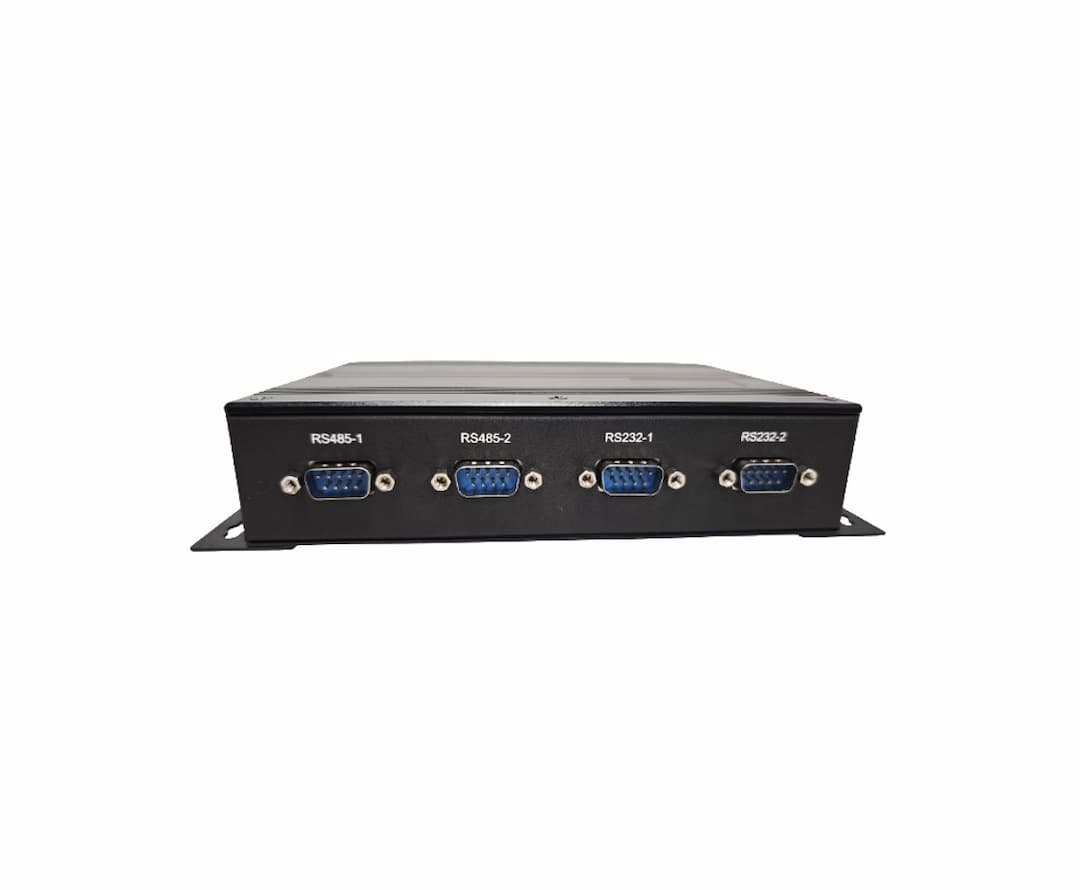

Serial Port

2 × RS232, 2 × RS485

USB

1 × USB 3.0 Type-A; 4 × USB 2.0 Type-A; 1 × USB 2.0 Type-C (OTG)

CAN

1 × CAN FD

GPIO

4 × GPIO, with 3.3V power supply

1 × Micro SD slot

Antenna

1 × Wi-Fi & Bluetooth SMA connector

RTC

1 × Discrete RTC

LED Indicator

1 × Power LED (lit at power-up); 1 × User-defined LED

Button

1 × Power button; 1 × Reset pinhole button

Input

12~24V 3A DC; 1 × Power jack

Consumption

Max: 10W (full load)

Android 16, Yocto 5.0

Dimensions

213mm × 139.3mm × 50mm (with mounting brackets)

Installation

Wall mount, DIN rail mount

Temperature

Operating: -20°C ~ +70°C (Optional: -40℃~+85℃); Storage: -30°C ~ +80°C (Optional: -55℃~+85℃)

Humidity

Operating: 5%~85% RH (Non-condensing)

Certification

FCC & CE (in progress)
