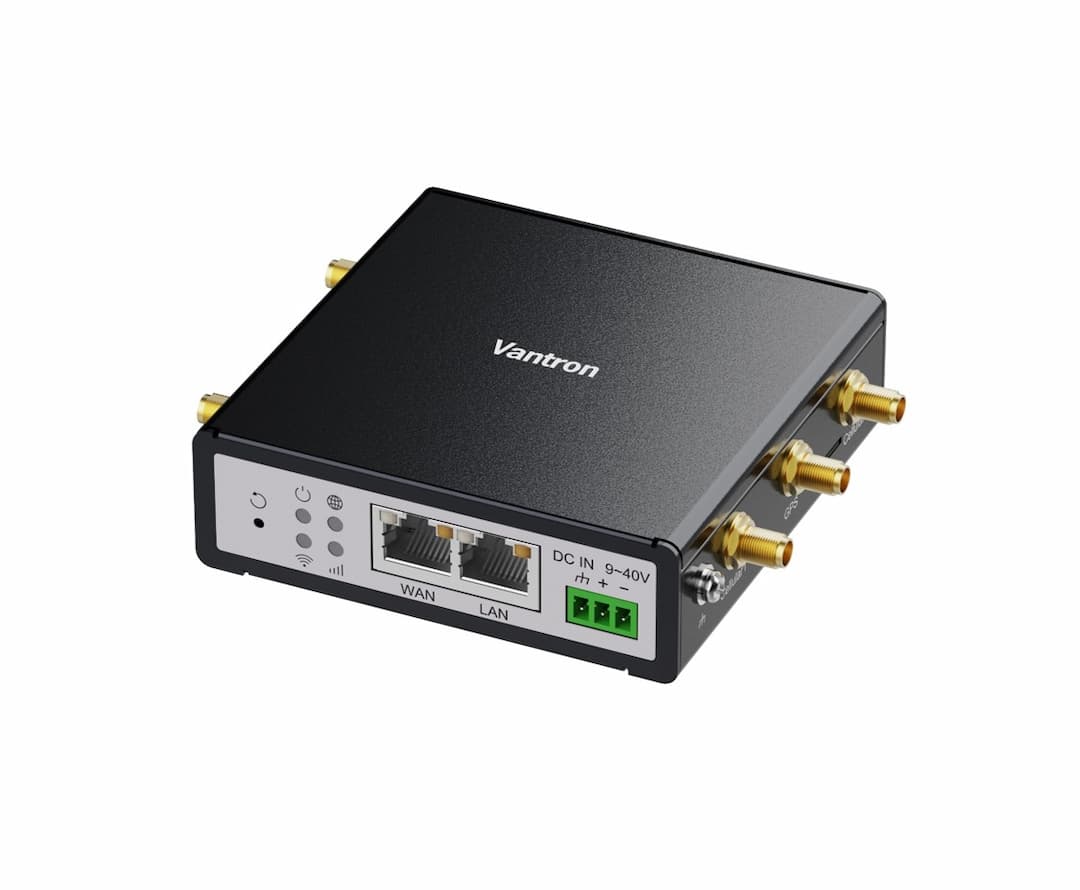

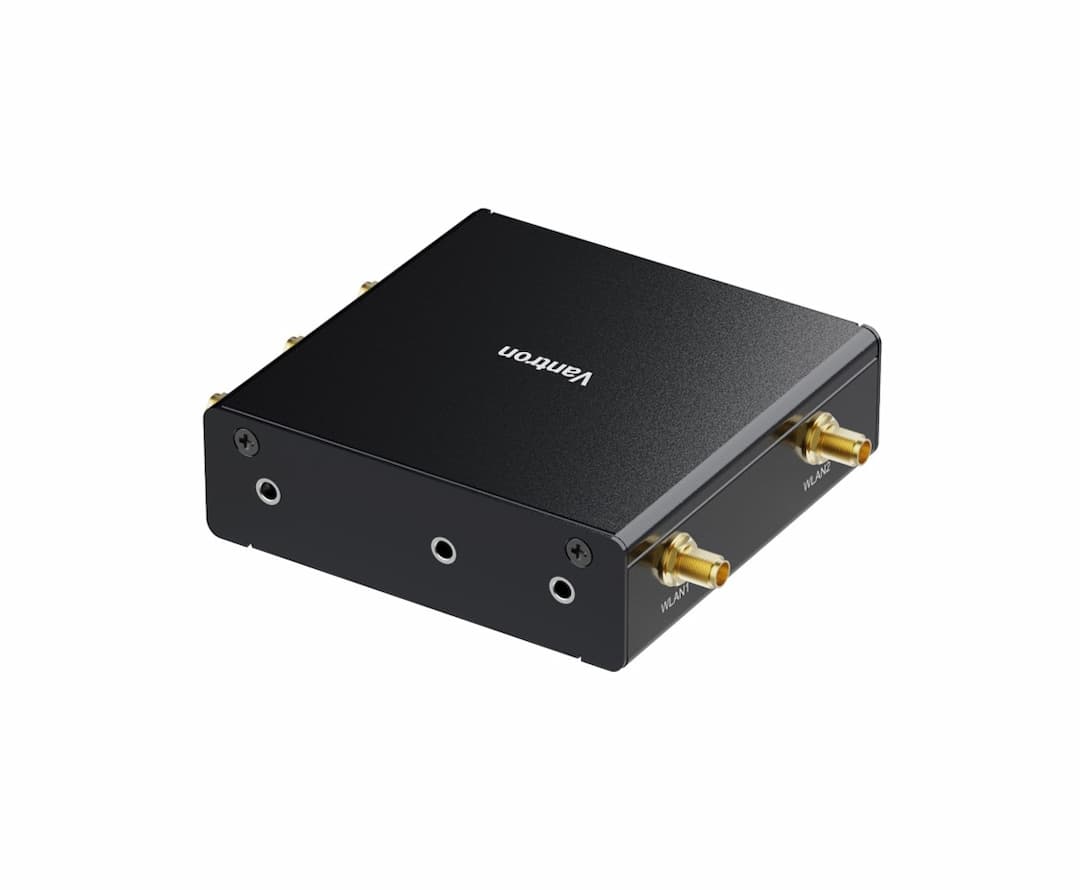

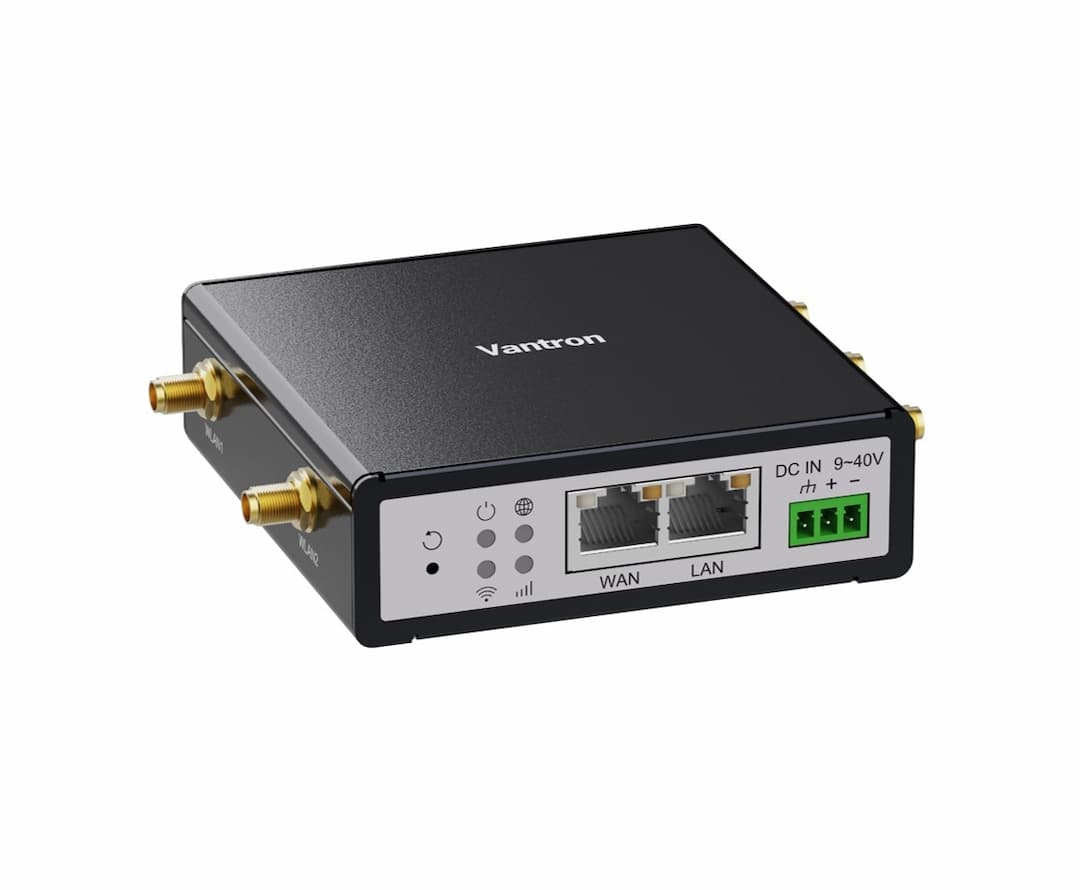

R2 Cost-Effective Dual-Ethernet 5G Industrial Router
• 512MB memory, 256MB storage
• Dual Ethernet ports rating 10/100/1000Mbps
• 2.4GHz Wi-Fi 6, 5G RedCap
• Hardware eSIM support, GNSS on cellular module
• Static routing, NAT, port forwarding, ACL control, VPN
• Wide input voltage range supported
• Optional BlueSphere GWM support for remote control
• Low power, complete industrial design
• Compact size, flexible installation for varying deployment sites
The R2 is a cost-effective, entry-level router built for industrial IoT use cases. Powered by a dual-core ARM Cortex-A53 platform, it is equipped with 512MB DDR3L RAM and 256MB SPI NAND Flash. While providing dual Gigabit Ethernet ports and 2.4 GHz Wi-Fi 6 (802.11ax) for local connectivity, it supports 5G RedCap connectivity as standard, with an option for a reduced-function variant. The cellular module integrates GNSS positioning capability. On the hardware layout, eSIM circuit is reserved as an optional upgrade, enabling future migration from physical SIM to embedded SIM without major board redesign.
The router supports wide-range 9–40V DC power input and operating in the -20℃~60℃ temperature range. Its support for hardware watchdog and local reset button further improves long-term fleet stability.
