VT-USB-AH-DL Standalone Wi-Fi HaLow USB Dongle
VT-USB-AH-DL Standalone Wi-Fi HaLow USB Dongle
VT-USB-AH-DL Standalone Wi-Fi HaLow USB Dongle
VT-USB-AH-DL Standalone Wi-Fi HaLow USB Dongle
VT-USB-AH-DL Standalone Wi-Fi HaLow USB Dongle
VT-USB-AH-DL Standalone Wi-Fi HaLow USB Dongle

VT-USB-AH-DL Standalone Wi-Fi HaLow USB Dongle

• Powered by Morse Micro MM8108 chipset
• Single-stream data rates no less than 16Mbps @8MHz
• Supports worldwide Sub-1 GHz frequency bands
• Supports HaLow STA operation mode
• Robust security including WPA3, PMF, OWE, AES/SHA1/SHA2
• True plug-and-play solution

Description
Specifications
Resources

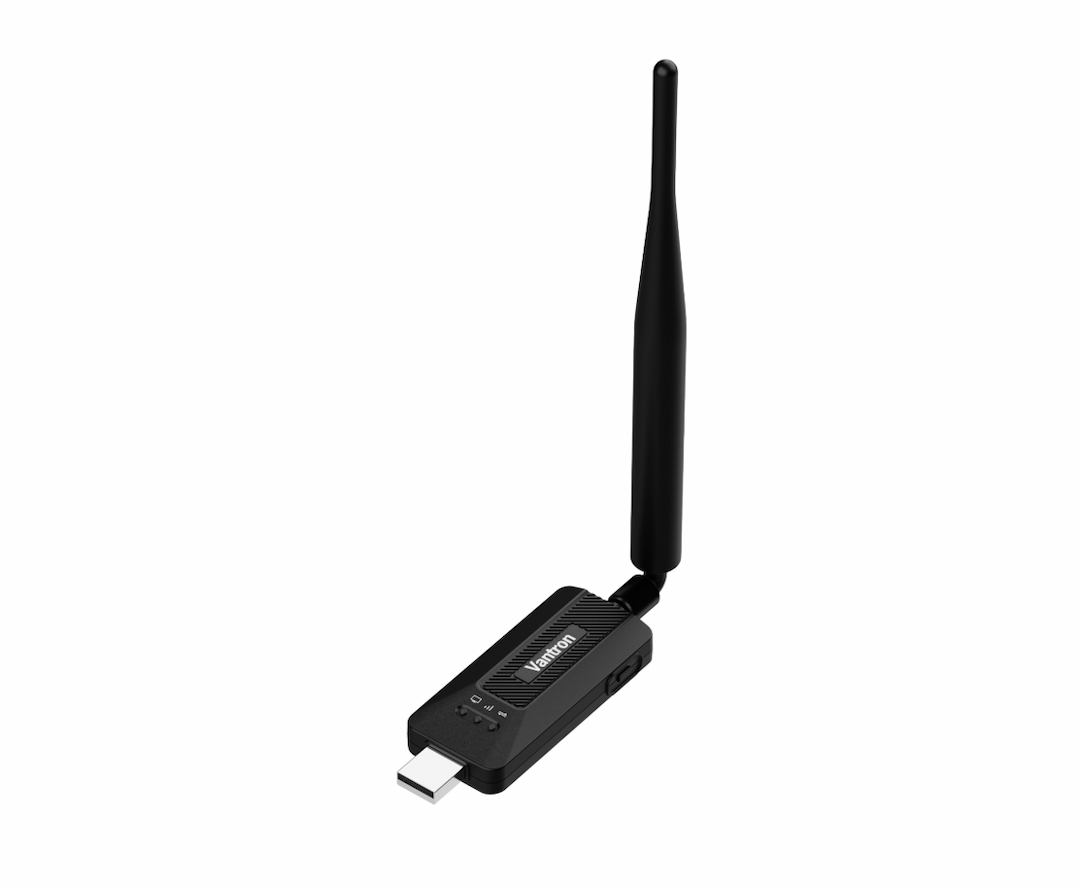

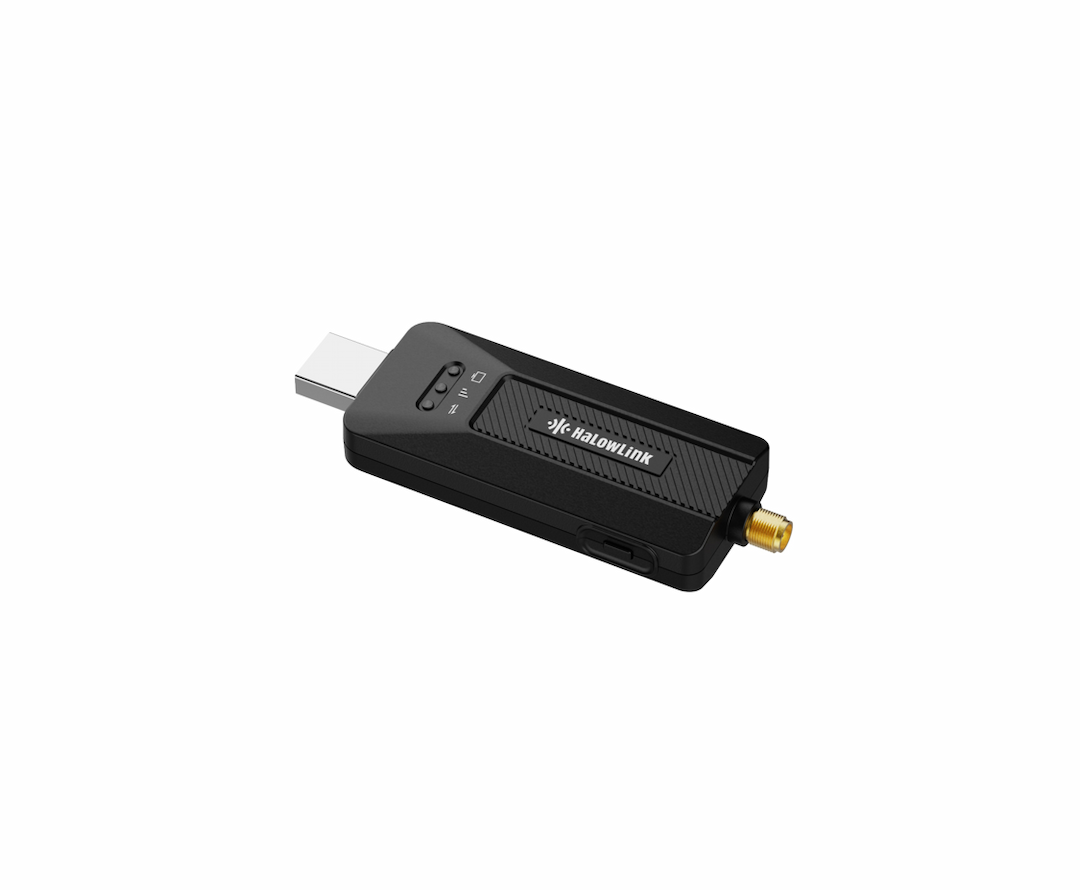

The VT-USB-AH-DL standalone Wi-Fi HaLow USB dongle is designed as an add-on connectivity solution for devices with standard USB interfaces that lack native Wi-Fi HaLow support, enabling rapid integration of sub-1 GHz low-power, long-range wireless access.

Built on Morse Micro’s latest-generation HaLow chip MM8108, the VT-USB-AH-DL delivers enhanced overall performance, supporting four channel bandwidth options (1/2/4/8 MHz) with single-stream data rates up to 43.33 Mbps at 8 MHz bandwidth, alongside lower power consumption and higher integration density. Operating as an RNDIS device, it offers true driver-free plug-and-play compatibility, working seamlessly with any system without additional software installation.

The dongle operates exclusively in HaLow station mode, delivering flexible deployment for diverse application scenarios. It features robust security including WPA3, PMF, OWE, and hardware-accelerated AES/SHA1/SHA2, making it ideal for long-range, low-power IoT applications like surveillance, smart meters, industrial automation, and environmental sensing.

Specifications
Product Name
VT-USB-AH-DL Standalone Wi-Fi HaLow USB Dongle (Wi-Fi HaLow Module)
HaLow Chipset
Morse Micro MM8108
RAM
256MB
Flash
64MB
Interface
USB 2.0 Type-A (5V⎓0.5A DC)
Antenna
1 × SMA (male) connector (Omni-directional, 2.6dBi)
LED indicator
1 × Power LED (Green): Powered on; 1 × HaLow LED (Purple): Connected to an AP; 1 × AP pairing status LED (RGB): R: Pairing failed; G: Paired; Y: Pairing initiated)
Button
1 × Reserved button, user-definable
Wi-Fi Standard
IEEE 802. 11ah
Working Mode
Station
Frequency Range
Sub 1 GHz bands: 850MHz ~ 950MHz
Channel Bandwidth
1 / 2 / 4 / 8 MHz
Data rate
iPerf TCP average>16Mbps @8MHz
Security
AES encryption engine, SHA1 and SHA2 hash algorithms (SHA-256, SHA-384, SHA-512), WPA3, Protected management frames (PMF), Opportunistic Wireless Encryption (OWE)
Configuration
Web UI
System Support
Driver-free (Virtual Ethernet-over-USB CDC-NCM interface)
Dimensions
86.9mm × 30.5mm × 13mm (without antenna)
Temperature
Operating: -20℃~+70℃; Storage: -40℃~+85℃
Humidity
5%~85% RH (Non-condensing)
Certification
CE, FCC
