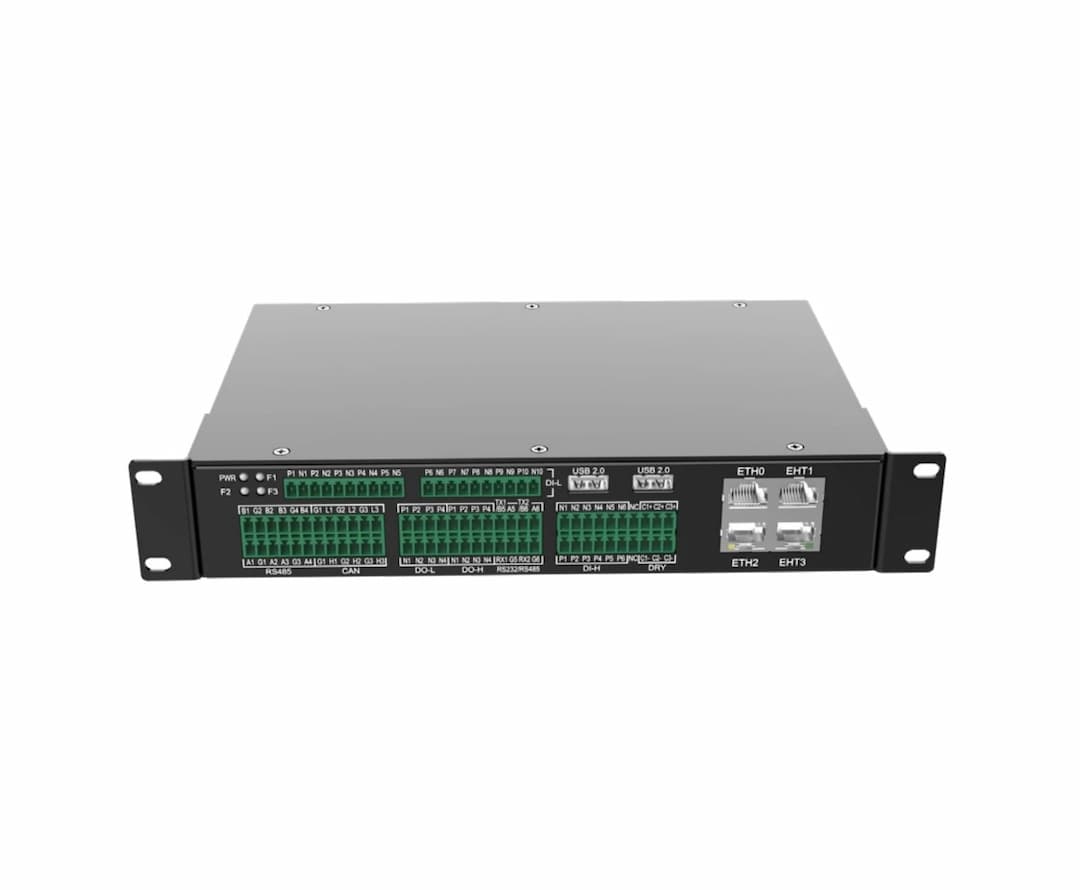

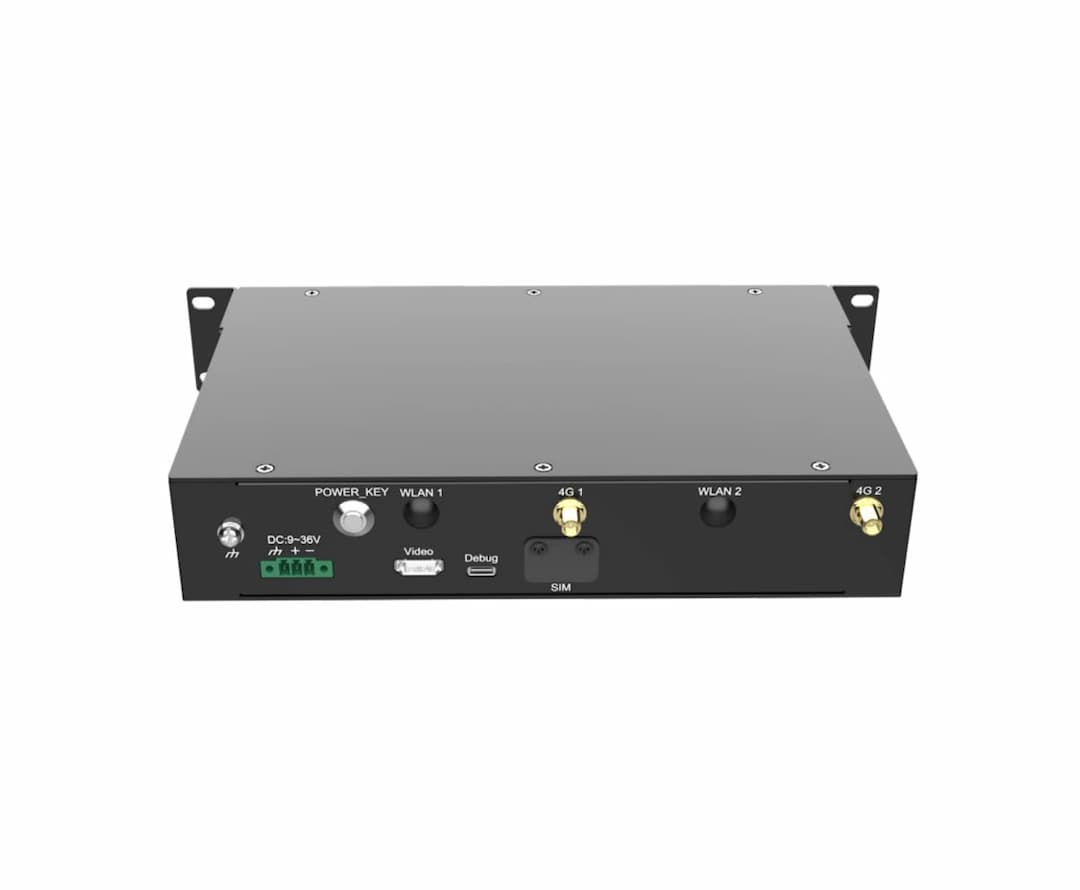

EG604 Multi-IO Edge Computing Gateway

• Quad-core ARM Cortex-A55 CPU, up to 2.0GHz
• Onboard 4GB memory and 64GB storage
• Gigabit ETH, cellular, optional Wi-Fi & Bluetooth
• Rich industrial I/O: USB, RS-485/232, CAN, DI/DO
• 1080p HDMI output for local on-site display
• Optional BlueSphere GWM support for remote control
• Industrial extended temperature range (-20°C to 70°C)
• Wide 9–36V DC input voltage
• USB-C debug port for device troubleshooting & upgrade

Description

Specifications

Resources

Vantron EG604 is a robust edge gateway powered by a high-efficiency quad-core industrial processor, paired with 4GB memory and 64GB onboard storage to deliver steady local edge data computing performance for factory automation, smart retail, medical interactive display terminals, outdoor IoT monitoring and on-site intelligent device interconnection.

Multiple communication options are available for flexible data upload and inter-device linkage. Four GbE ports serve wired WAN/LAN communication, while built-in cellular module realizes wireless wide-area transmission. Optional Wi-Fi and Bluetooth further enrich short-range wireless connection scenarios, meeting diversified industrial IoT transmission demands.

The gateway integrates full-range signal acquisition and expansion interfaces: multiple DI/DO channels, dry contact relay terminals, RS-485/232 and CAN industrial serial buses to access various industrial field devices. It also reserves USB 2.0 expansion slots, HDMI display output and debug interfaces, supporting peripheral extension, local screen preview and equipment troubleshooting.

Specifications

Product Name

EG604 Multi-I/O Edge Computing Gateway

CPU

Quad-core ARM Cortex-A55 processor, 2.0GHz (Max.)

NPU

1 TOPS

Memory

4GB DDR4

Storage

64GB eMMC

Ethernet

4 × RJ45, 10/100/1000Mbps (1 × WAN/LAN, 3 × LAN)

4G LTE

CAT 4

Wi-Fi & Bluetooth

Optional

Display

1 × HDMI 2.0, up to 1080p@120Hz / 4096x2304@60Hz

Serial Port

4 × RS485, isolated; 2 × RS232/RS485 (Software switchable)

USB

2 × USB 2.0 Type-A; 1 × USB Type-C (Debug)

CAN

3 × CAN, isolated

6 × DI_H (Active, wet contact); 10 × DI_L (Inactive, dry contact)

4 × DO_H (Max. 4A/100ms); 4 × DO_L (Max. 4A/100ms)

Dry Contact

3 × Relay-isolated dry contact (Max. 24 V, jumper-selectable NO/NC, default NO)

SIM Slot

1 × Micro SIM slot

Antenna

2 × Cellular antenna connector (SMA-K); 2 × Wi-Fi antenna connector (RP-SMA-K)

Button

1 × Power button

LED indicator

1 × Power LED; 3 × User-defined LED

Dimensions

265 mm × 150 mm × 44 mm (Incl. mounting bracket)

Weighgt

~ 1.5 kg

Installation

VESA, DIN rail mount, rack mount

Input

9-36V DC, over-current protection, reverse polarity protection

Power Terminal

3-pin 3.81mm power terminal

Consumption

Max load: 105.3 W (9.3 W + DO_H: 4A × 24V); Idle: 5 W; Shutdown: 0.3 W

Web-based VantronOS (Optional: Debian 11)

Configuration

VantronOS, BlueSphere GWM (Optional)

Remote Management

BlueSphere GWM (Optional)

Temperature

Operating: -20℃ ~ +70℃; Storage: -40℃~+85℃

Humidity

5%-95% RH (Non-condensing)

EMC

EMC Level 4

Compliance

FCC, ISED, CE

Carrier Certification

AT & T, Verizon, T-Mobile
