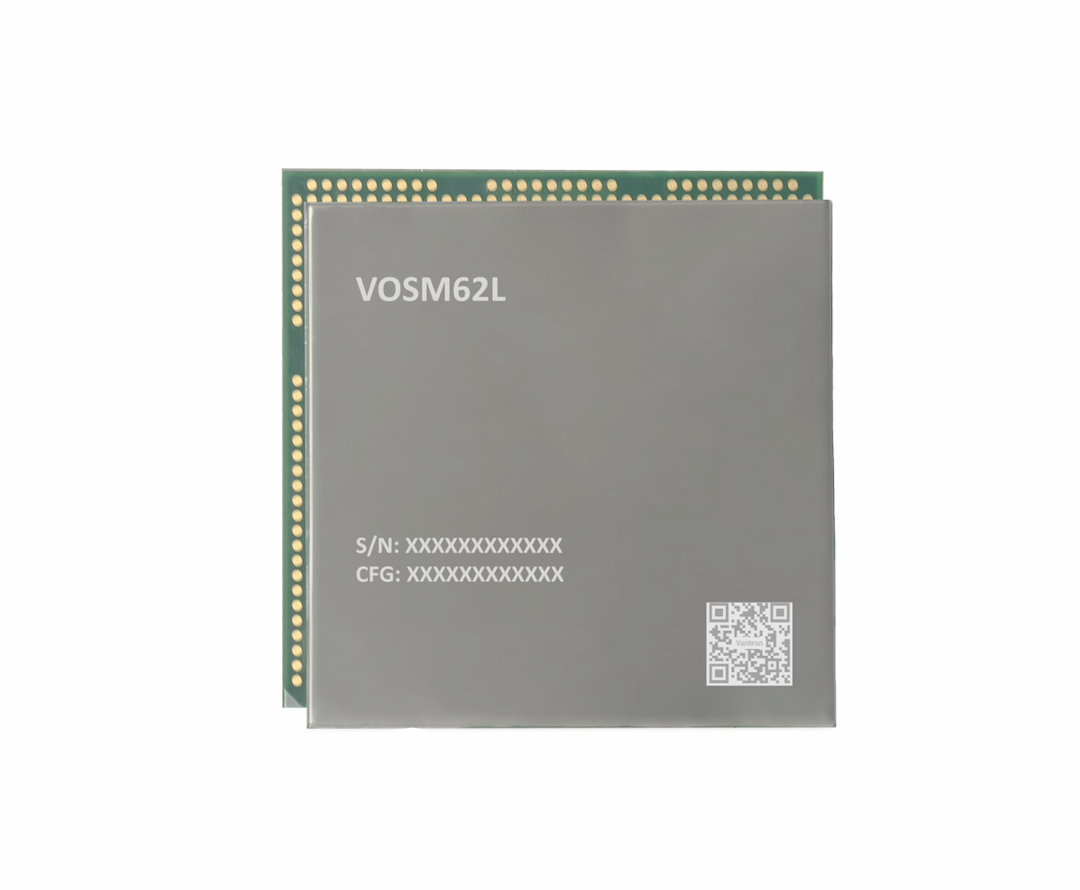

VOSM62L TI AM62L32 Module

The VOSM62L system-on-module adopts Texas Instruments AM62L32 Sitara 64-bit industrial SoC and conforms to the solderable LGA specification of the Open Standard Module (OSM) form factor, delivering compact size, optimized power consumption and rich peripheral expansion for cost-focused embedded edge implementation scenarios.

Equipped with a dual-core Arm Cortex-A53 processors clocked up to 1.25GHz, the module is configured with 1GB DDR4 RAM alongside 16GB industrial-grade eMMC flash storage to satisfy local data caching demands.

The module offers rich industrial peripherals routed out through standard OSM pads, consisting of dual Gigabit Ethernet ports, CAN FD buses, GPIOs, multiple UART channels for hardware debugging and on-site serial data collection, as well as USB 2.0 connectivity. Its MIPI DSI interface enables up to 1080P high-definition display.Equipped with TI-native hardware security modules, it supports secure boot, TrustZone isolation and AES/SHA cryptographic acceleration to secure data transmission for payment terminals and smart medical devices.
With support for Linux Yocto operating system, it offers developers with a streamlined development path, backed by long-term software maintenance. Thismodule is ideally suited for a wide range of edge applications, including smart charging piles, building automation controllers, portable medical monitoring terminals and industrial HMI equipment.
