HAP202 Wi-Fi HaLow Unit

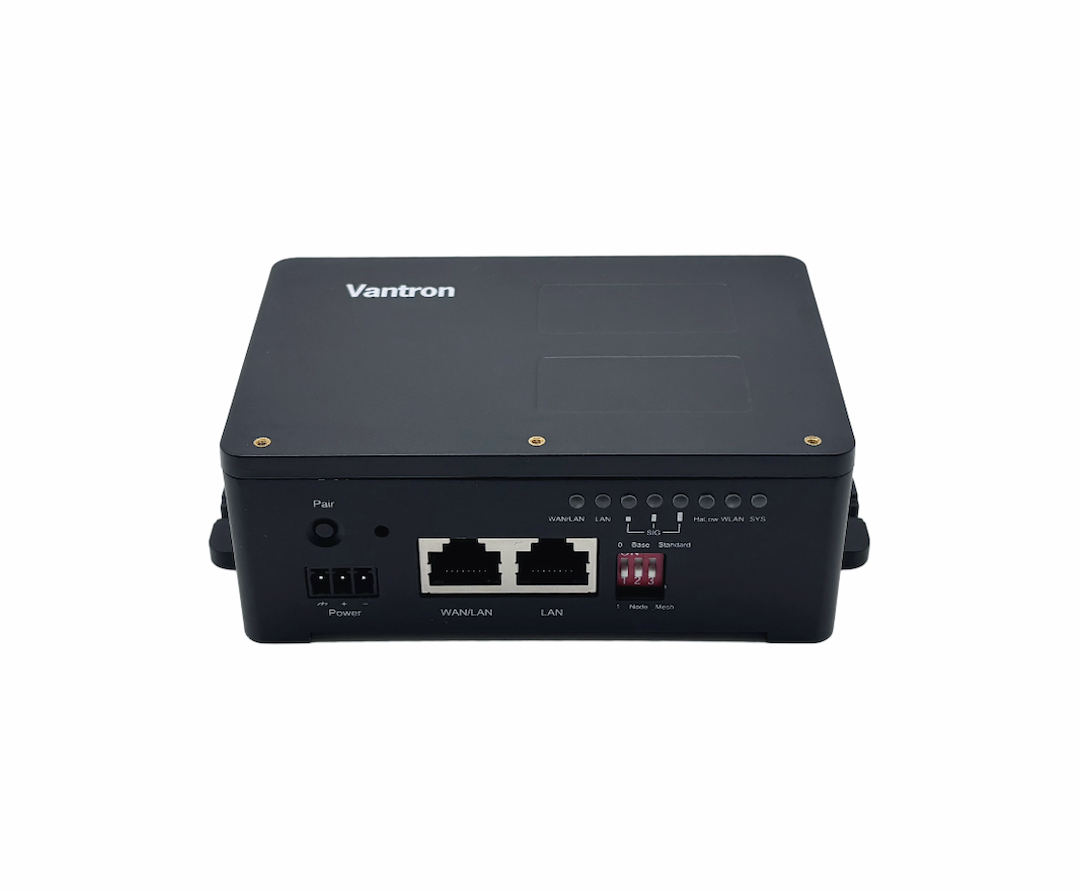

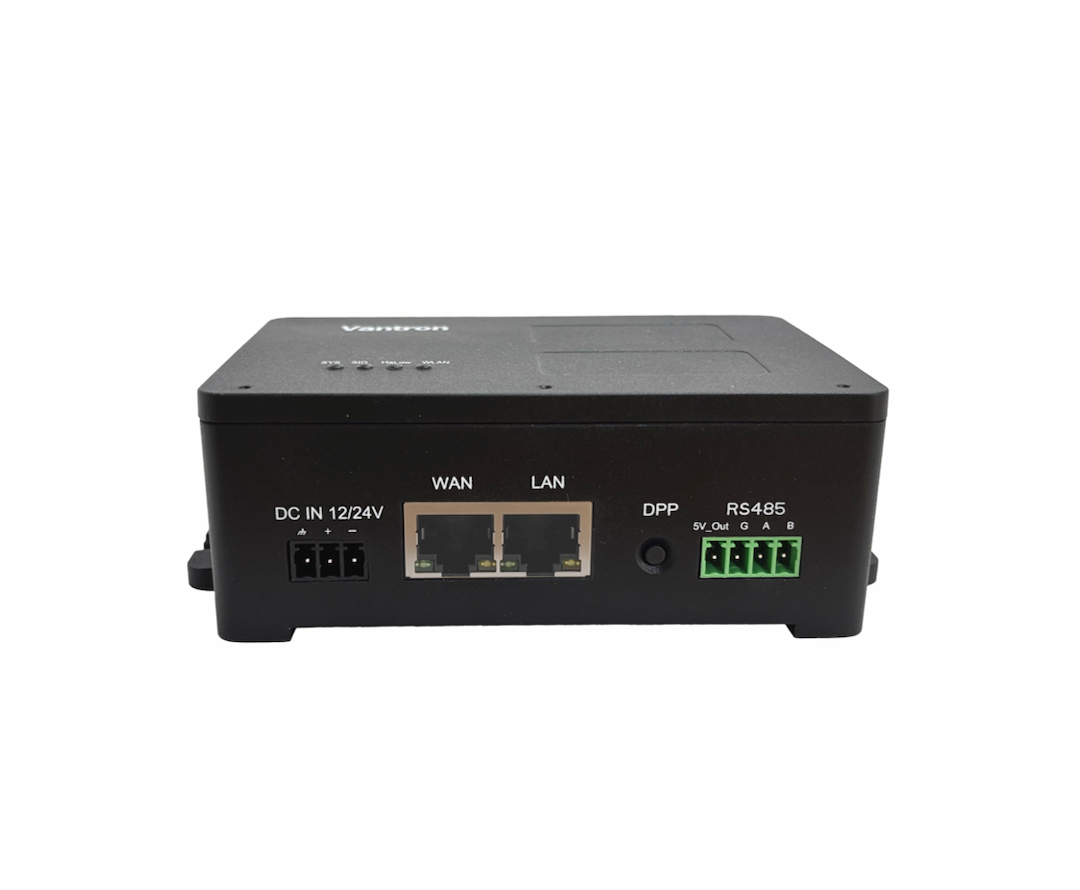

Powered by Morse Micro’s MM6108 Wi-Fi HaLow chipset, Vantron HAP202 features a new configuration with dual Ethernet ports. This design provides more flexible and convenient access to the device management portal, eliminating the need to manually switch between LAN and WAN connections when the 2.4GHz/5GHz Wi-Fi is operating in client mode. In addition, it is designed to maximize the chipset’s throughput to ensure reliable and efficient data transfer.

Operating in both sub-1GHz (IEEE 802.11ah) and 2.4GHz/5GHz (802.11 b/g/n/ac) bands, the device provides long-range connectivity up to 1km at 32.5Mbps and short-range speeds up to 867Mbps, respectively, ensuring reliable performance. It is equipped with DIP switches for quick configuration of HaLow base and nodes in either standard or mesh setups, while also allowing for user-specific customization. The DPP (Wi-Fi Easy Connect) handles secure, effortless device pairing, and the optional IP54 waterproof kit enables reliable outdoor deployment.

Ideal for long-range, sub-GHz networking, HAP202 is well-suited for a variety of applications, including smart home systems, video surveillance, industrial process control, logistics and asset tracking, and smart city infrastructure.
