M08T1 8.7” Android General-Purpose Industrial Tablet
M08T1 8.7” Android General-Purpose Industrial Tablet
M08T1 8.7” Android General-Purpose Industrial Tablet
M08T1 8.7” Android General-Purpose Industrial Tablet
M08T1 8.7” Android General-Purpose Industrial Tablet
M08T1 8.7” Android General-Purpose Industrial Tablet

M08T1 8.7” Android General-Purpose Industrial Tablet

• MediaTek octa-core high-performance processor
• Large storage capacity for faster responsiveness
• 8.7” HD IPS display, 350 nits, OCA bonding
• High-resolution front and rear cameras
• Dual-band WLAN, BT 5.0
• 4000mAh rechargeable battery
• Stereo speaker for clear audio output
• USB Type-C for data transfer and power charging

Description
Specifications
Resources

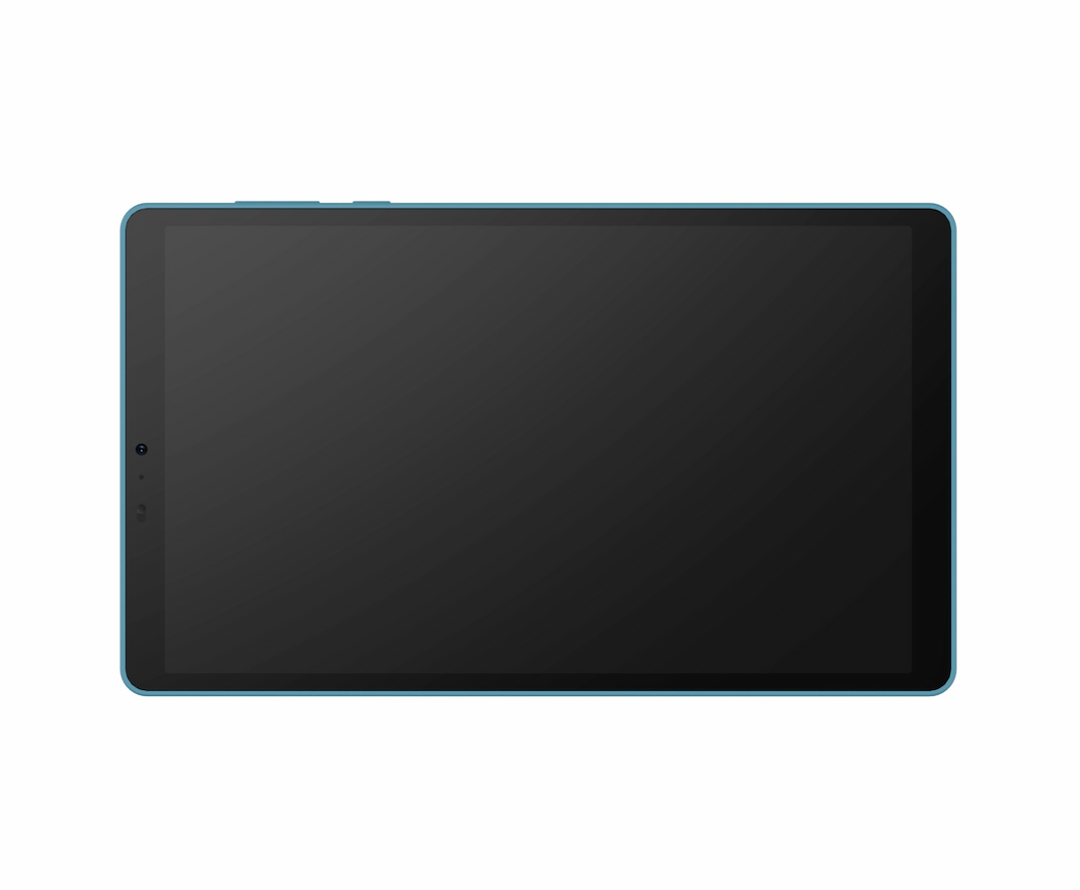

Vantron M08T1 industrial tablet is powered by a MediaTek octa-core high-performance processor, delivering exceptional processing power and fast system responsiveness. It features an 8.7-inch IPS display with a multi-touch PCAP screen, offering sharp visuals and intuitive touch interaction for enhanced usability across various environments.

Providing 350 nits of brightness and a 1340 x 800 @60Hz resolution, the M08T1 is OCA bonded, offering excellent outdoor visibility and smooth operation. For connectivity and expansion, the device supports USB OTG and a TF card slot, alongside Wi-Fi and Bluetooth for flexible wireless communication. It is further equipped with front and rear cameras for imaging and documentation tasks, as well as stereo speakers for clear audio playback.

With its comprehensive set of features, the M08T1 enhances workflow efficiency, accuracy, and operational reliability. It is an ideal solution for industries such as warehousing, manufacturing, and healthcare, where enterprise-level productivity and operational effectiveness are paramount.

Specifications
Product Name
M08T1 8.7” General Purpose Industrial Tablet
CPU
MediaTek MT8781, Dual-core Arm Cortex-A76, 2.2GHz + Hexa-core Arm Cortex-A55, 2.0GHz
GPU
Mali-G57 MC2 @1000MHz
Memory
4GB LPDDR4 (Optional: 8GB)
Storage
64GB eMMC V5.1 (Optional: 128GB)
Wi-Fi & Bluetooth
Wi-Fi 802.11 a/b/g/n/ac + BT 5.0
Display
8.7” 16:10 IPS panel | Contrast ratio: 1000:1 | Resolution: 1340 x 800 @60Hz | Brightness: 350 nits (Typical) | Color depth: 16.7M | Viewing angle: 178° / 178°
TP
5-point PCAP touchscreen, anti-fingerprint | Surface hardness: 6H | Cover lens: IK03 rated | Light transmittance ratio: > 85% | Finishing process: Chemical tempering
Camera
Front camera: 2MP, Fixed focus | Rear camera: 13MP, Auto focus
Audio
2 x 1w speaker | 1 x 3.5mm Combo audio jack (CTIA standard) | 2 x Microphone
USB
1 x USB 2.0 Type-C (OTG, charging)
SD slot
1 x Micro SD slot
Sensor support
3D accelerometer, Ambient light sensor
Button
1 x Power button | 1 x Volume +/- button
LED indicator
1 x Battery level indicator
Input
USB Type-C power input (5V/2A DC, 9V/2A DC, 12V/2A, PD supported)
Battery
4000mAh
OS
Android 15
Device management
BlueSphere MDM (Optional)
Material
PC + ABS
Casing color
Grey
Dimensions
212.74mm x 125.88mm x 10.85mm
Temperature
Operating: 0°C ~+50°C | Storage: -10°C ~+60°C
Humidity
5%-95% RH (Non-condensing)
Certification
FCC, CE | ESD (Contact: ±4KV, Air: ±8KV)

Resources

Docs
Products
News & Blog

Vantron M08T1 8.7” General-purpose Industrial Tablet Datasheet

2/26/2026

Vantron M08T1 8.7” General-purpose Industrial Tablet Datasheet

2/26/2026

Vantron M08T1 8.7” General-purpose Industrial Tablet Datasheet

2/26/2026
