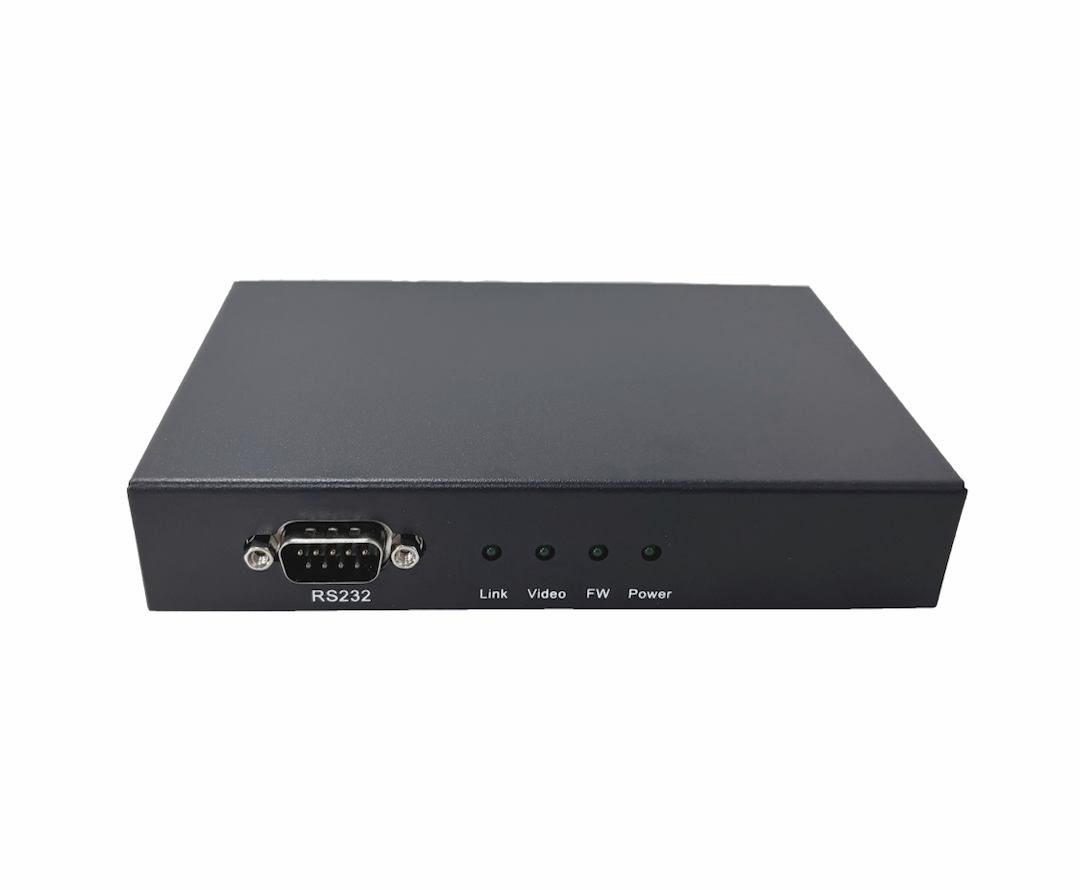

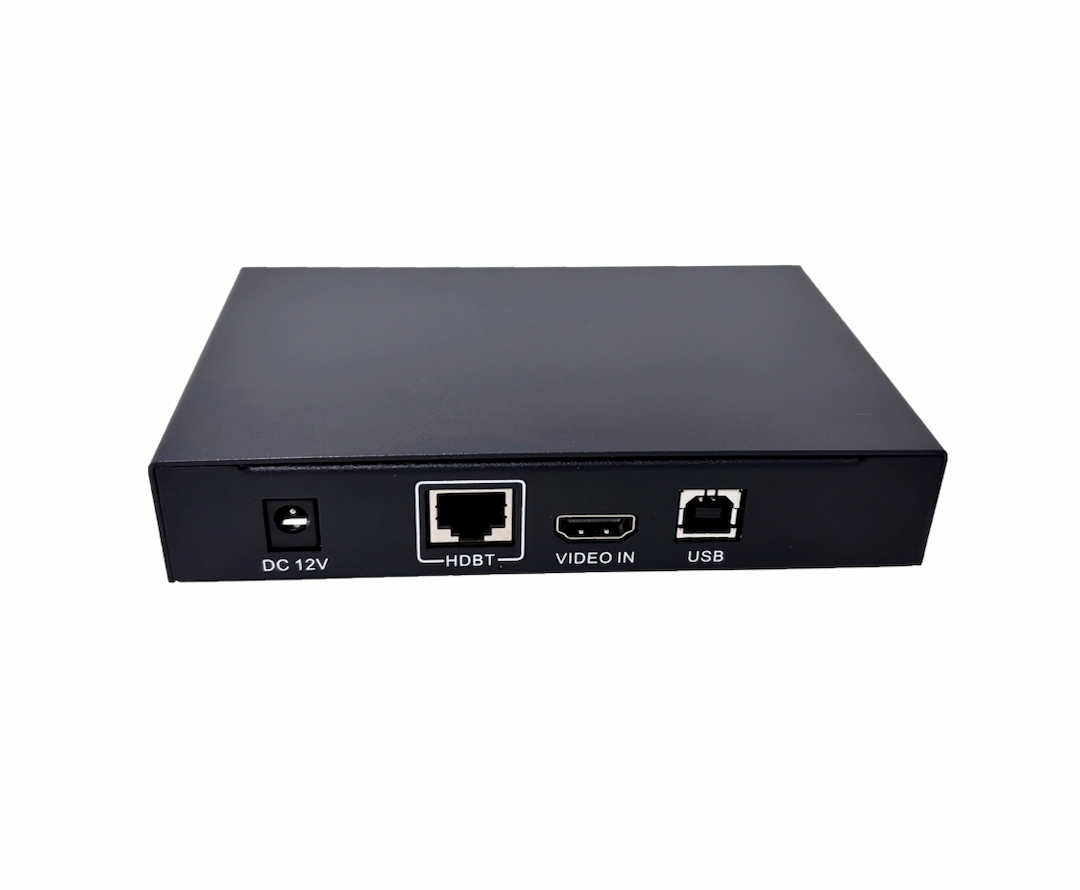

VT-HDBXT-TX 4K／UHD HDBaseT Transmitter

VT-HDBXT-TX is a high-performance HDBaseT transmitter specifically designed for professional applications requiring long-distance, high-quality audio and video signal reception. This transmitter is equipped with an HDMI output interface with EDID management, supporting ultra-high-definition video signals up to 4K/2K @30Hz (YCbCr 4:4:4) or 4K/2K @60Hz (YCbCr 4:2:0). In long-distance mode, it supports transmission up to 150 meters with a maximum video data rate of 5.3Gbps, ensuring smooth delivery of ultra-high-definition content. The transmitter offers three configuration modes: Full Duplex Deployment (transmitter connected via Cat5e/6/7), Standalone Transmitter Mode (connected to HDBaseT-supported displays), and Simple HDMI Mode (directly connected to HDMI displays).

The transmitter integrates one RS232 serial port for connecting and controlling display devices or peripheral systems, one USB 2.0 UFP Type-B interface to support the expansion of USB peripherals, and a built-in debug UART interface for convenient product maintenance and debugging. The transmitter is highly suitable for use in scenarios such as medical imaging, surveillance systems, digital signage, conference room, home theater, or large venue, ensuring a simple, clean, and efficient setup for all your connectivity needs.
