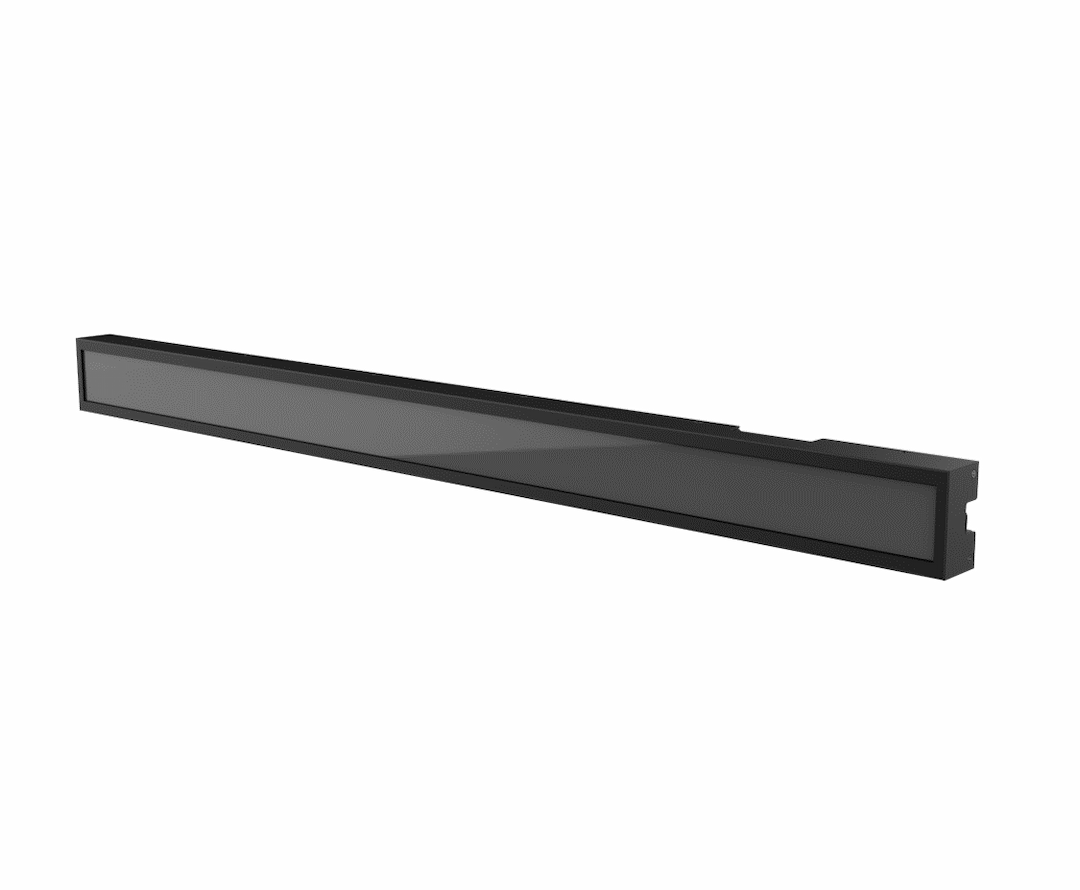

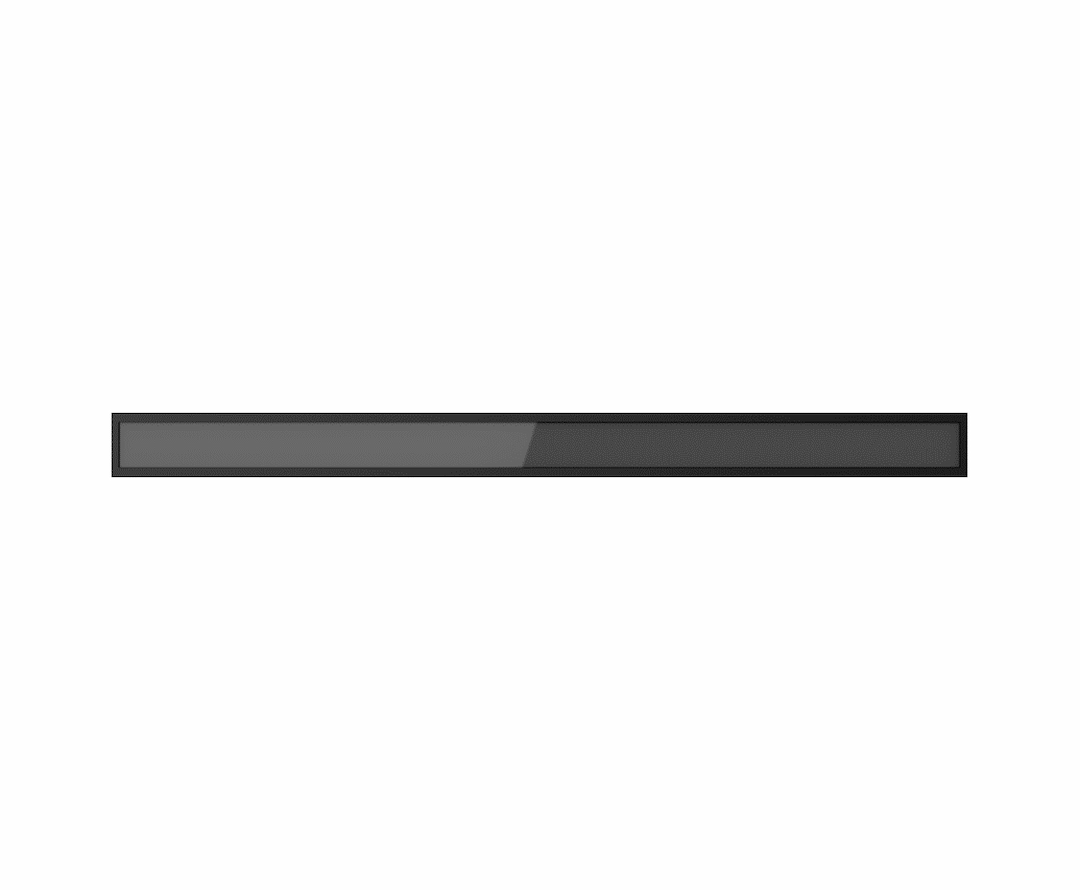

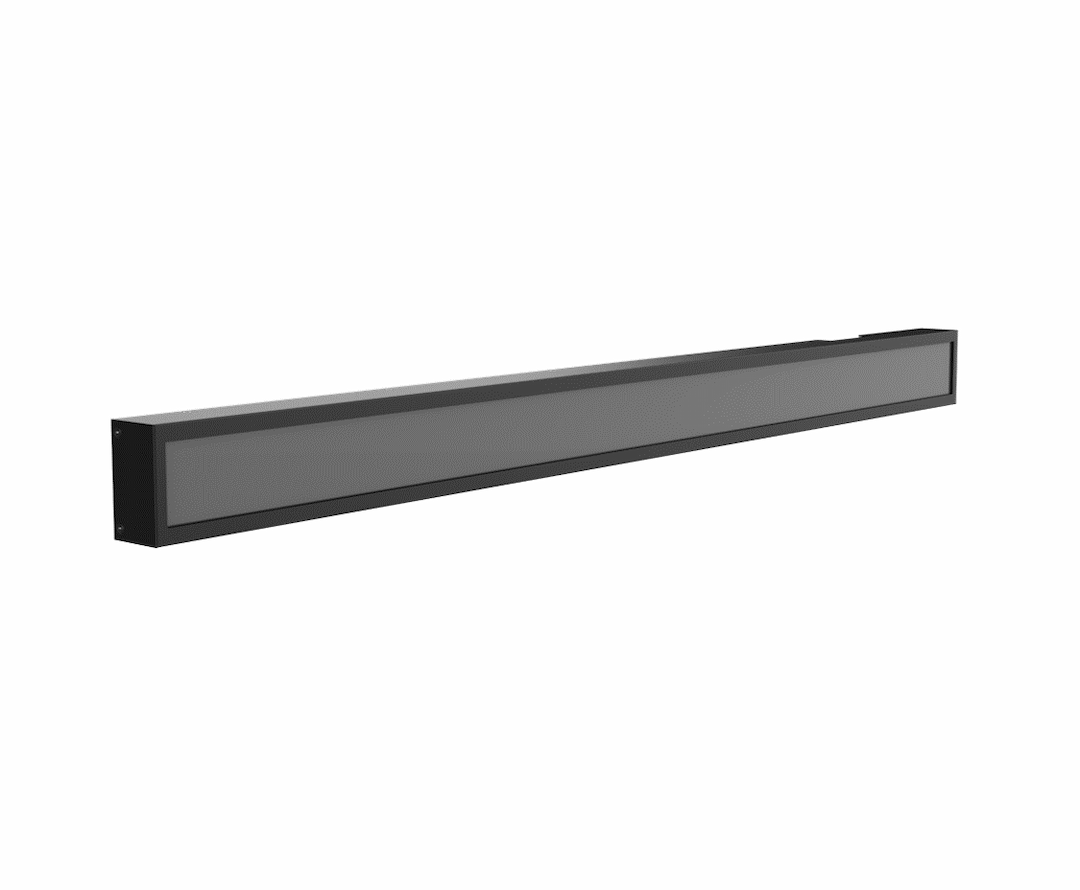

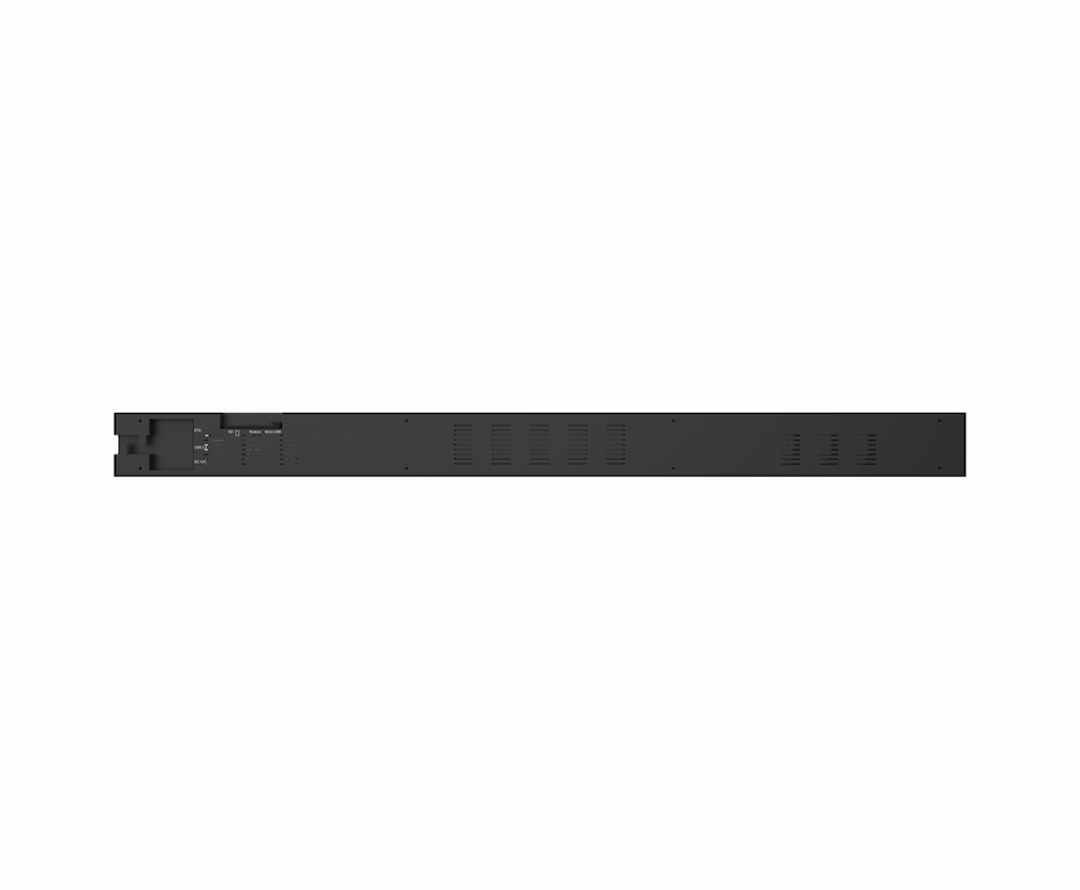

VT-DISP35-3568 35'' Bar-type Android All-in-one Panel PC
VT-DISP35-3568 35'' Bar-type Android All-in-one Panel PC
VT-DISP35-3568 35'' Bar-type Android All-in-one Panel PC
VT-DISP35-3568 35'' Bar-type Android All-in-one Panel PC
VT-DISP35-3568 35'' Bar-type Android All-in-one Panel PC
VT-DISP35-3568 35'' Bar-type Android All-in-one Panel PC
VT-DISP35-3568 35'' Bar-type Android All-in-one Panel PC
VT-DISP35-3568 35'' Bar-type Android All-in-one Panel PC
VT-DISP35-3568 35'' Bar-type Android All-in-one Panel PC
VT-DISP35-3568 35'' Bar-type Android All-in-one Panel PC

VT-DISP35-3568 35'' Bar-type Android All-in-one Panel PC

● Quad-core Cortex-A55 processor, up to 2.0GHz
● Large active area with resolutions of 3840 × 200
● USB 2.0 Type-A, Micro-USB, TF card slot for expansion
● ETH and optional Wi-Fi 5 / BT 5.0 for communication
● Android operating system
● VESA patterns (280 × 3 × 50mm) for simplified installation

Description
Specifications
Resources

VT-DISP35-3568 bar-type all-in-one panel PC is powered by the high-performing processor that has four cores capable of delivering high computing power while keeping the CPU power consumption low. The device features a high-definition resolution of 3840 × 200 pixels and a brightness of up to 500 nits, delivering an excellent visual experience.

VT-DISP35-3568 provides an Ethernet port and optional Wi-Fi 5/ Bluetooth 5.0, ensuring stable for stable and reliable network connection. VT-DISP35-3568 is equipped with one USB 2.0 Type-A port and one Micro-USB 2.0 port, allowing debugging and peripherals connection. Storage capacity can be expanded via TF card. Moreover, the device is designed with VESA hole patterns to simplify mounting. These features make it ideal for scenarios such as commercial display, industrial control, and smart terminals.

Specifications
Product Name
VT-DISP35-3568 Bar-type Android ARM-based AIO Panel PC
CPU
Quad-core Cortex-A55 processor, up to 2.0GHz
Memory
2GB LPDDR4X
Storage
16GB eMMC
Ethernet
1 × Ethernet port, 10/100Mbps
Wi-Fi/BT
Optional: 802.11 a/b/g/n/ac, Bluetooth 5.0
Screen Size
878.42mm × 46.30mm
Resolution
3840 × 200 pixels
Brightness
500 nits
Active Area
877.824mm × 45.720mm
USB
1 × USB 2.0 Type-A | 1 × Micro-USB 2.0
TF
1 × TF card slot
RTC
Supported
Watchdog
Supported
OS
Android 11
Button
1 × Reset button (Short press to restart, long press to restore factory settings)
Input
1 × Power jack, 12V⎓5A (inner diameter: 2.5mm, outer diameter: 5.5mm)
Dimensions
895.60mm × 67.70mm × 38mm
Weight
3.16 kg
Installation
VESA mounting
Temperature
Operating: 0℃~+50℃ | Storage: -20℃~+60℃
Humidity
Operating: 20%~80% RH (Non-condensing)
