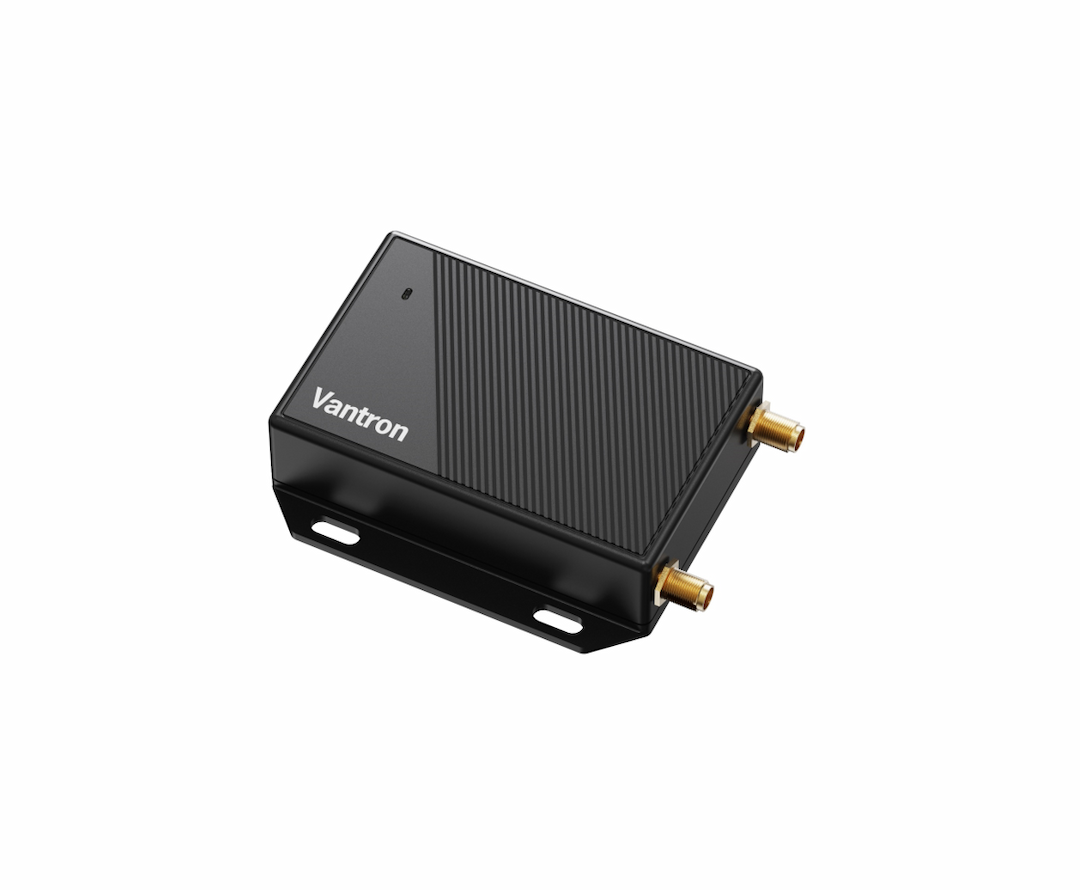

VT-USB-CELL USB Dongle

VT-USB-LTE USB Dongle is equipped with the Rockchip RK3308GK quad-core ARM Cortex-A35 processor with a maximum clock speed of up to 1.2GHz, delivering low power consumption and high stability. The device comes with built-in 64MB DDR2 RAM, 32MB SPI flash memory, and 2KB EEPROM. This ensures smooth system operation but also stably stores firmware and configuration information.

The device provides an LTE Cat4 module supporting LTE-FDD and WCDMA, covering prevalent frequency bands with exceptional compatibility with a maximum downlink rate of up to 150Mbps and an uplink rate peaking at 50Mbps, meeting the demands for high-efficiency networking. Equipped with two dedicated 4G LTE antenna connectors, it significantly enhances signal reception capabilities, expands network coverage, and improves connection stability.

The device provides one USB Type-B port, supporting plug-and-play functionality for easy connection and enabling rapid networking. It features a built-in onboard Micro SIM card slot for activating 4G network connectivity. The overall design is compact and small, balancing industrial-grade stability with portability, making it suitable for various application scenarios such as industrial control and outdoor networking.
