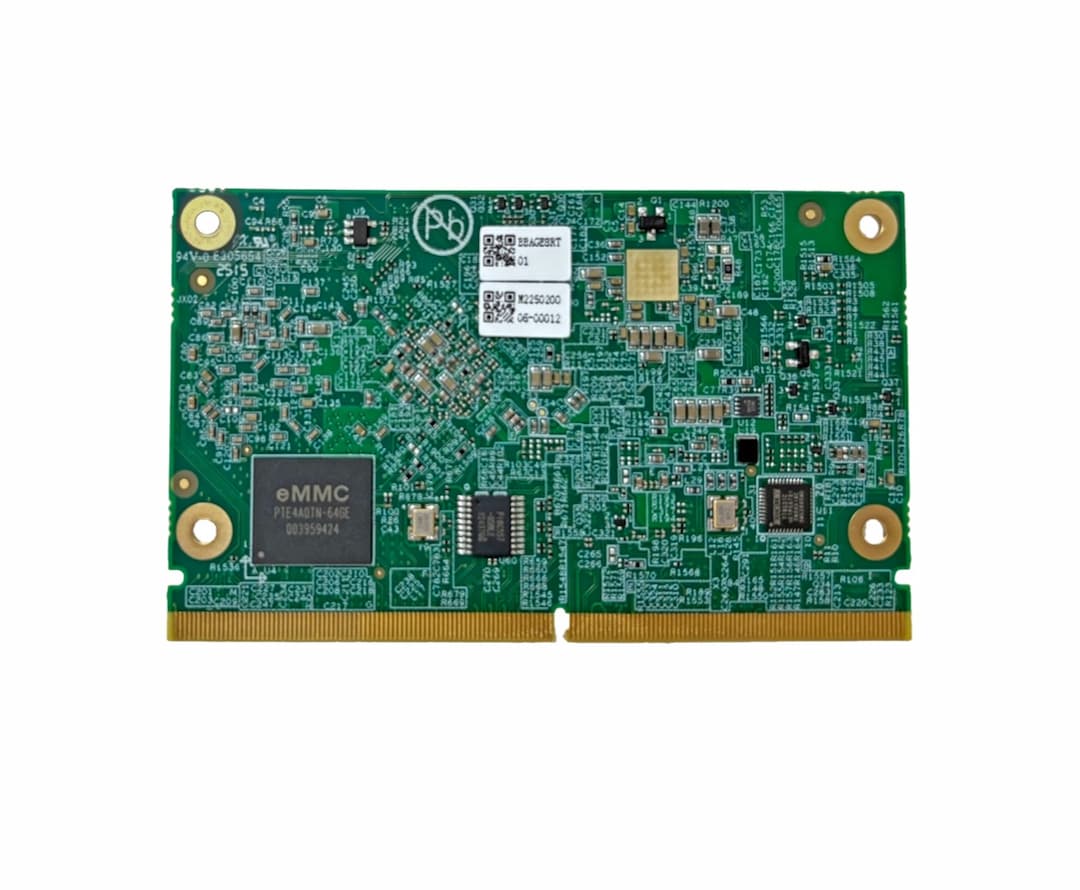

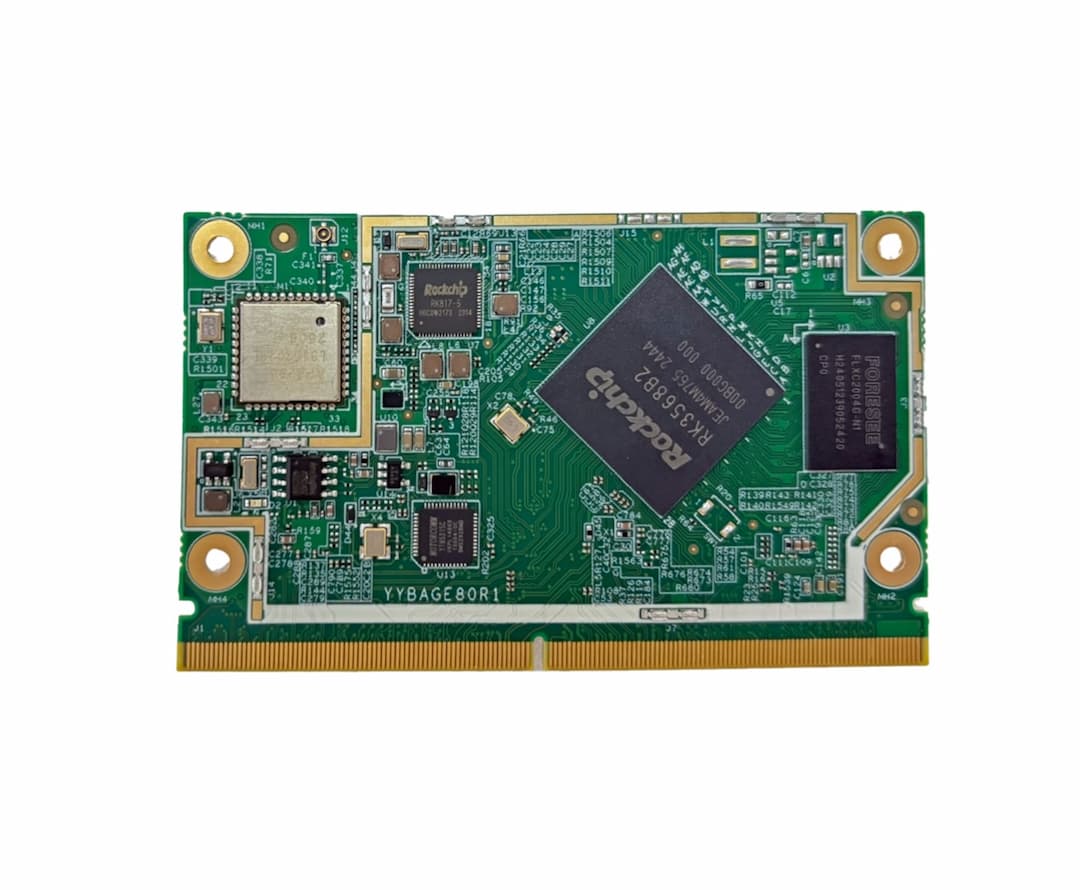

VT-SBC-SMARC-3568 RK3568 Computer-on-Module
• Rockchip RK3568 quad-core processor
• 4K video decoding, 1080p @60fps video encoding
• MIPI DSI/LVDS/HDMI/eDP/ for video output
• Rich I/O signals for flexible expansion
• Gigabit Ethernet, Wi-Fi 5, Bluetooth 5.0
• Up to 1 TOPS NPU for AI acceleration
• Android and Debian systems supported
• SMARC 2.1 form factor for flexible integration
VT-SBC-SMARC-3568 Computer-on-Module (CoM) leverages the Rockchip RK3568 quad-core processor to deliver robust performance in a compact SMARC 2.1 form factor. The module integrates a quad-core ARM Cortex-A55 CPU, a high-performance ARM Mali-G52 GPU, and an NPU with up to 1 TOPS computing performance to handle complex workloads.
It supports 4K H.265/H.264 video decoding and 1080p @60fps H.265/H.264 video encoding, ensuring optimal video output quality. It enables up to three independent displays via HDMI 2.0, eDP, and MIPI DSI/LVDS, ideal for digital signage, interactive kiosks, and medical imaging systems. In addition, VT-SBC-SMARC-3568 supports 8MP single-channel ISP that implements diverse algorithm accelerators, such as HDR, 3A, CGC, 3DNR, 2DNR, Sharpening, and Dehaze, delivering enhanced image processing performance.
For connectivity, the module offers two MDI interfaces, supporting 10/100/1000Mbps Ethernet networking. A Wi-Fi and Bluetooth combo module offers a wireless connectivity option. In addition, various I/O signals are available for flexible expansion. VT-SBC-SMARC-3568 is ideally suitable for applications such as digital multimedia, smart retail, surveillance, edge computing, and industrial HMI.
