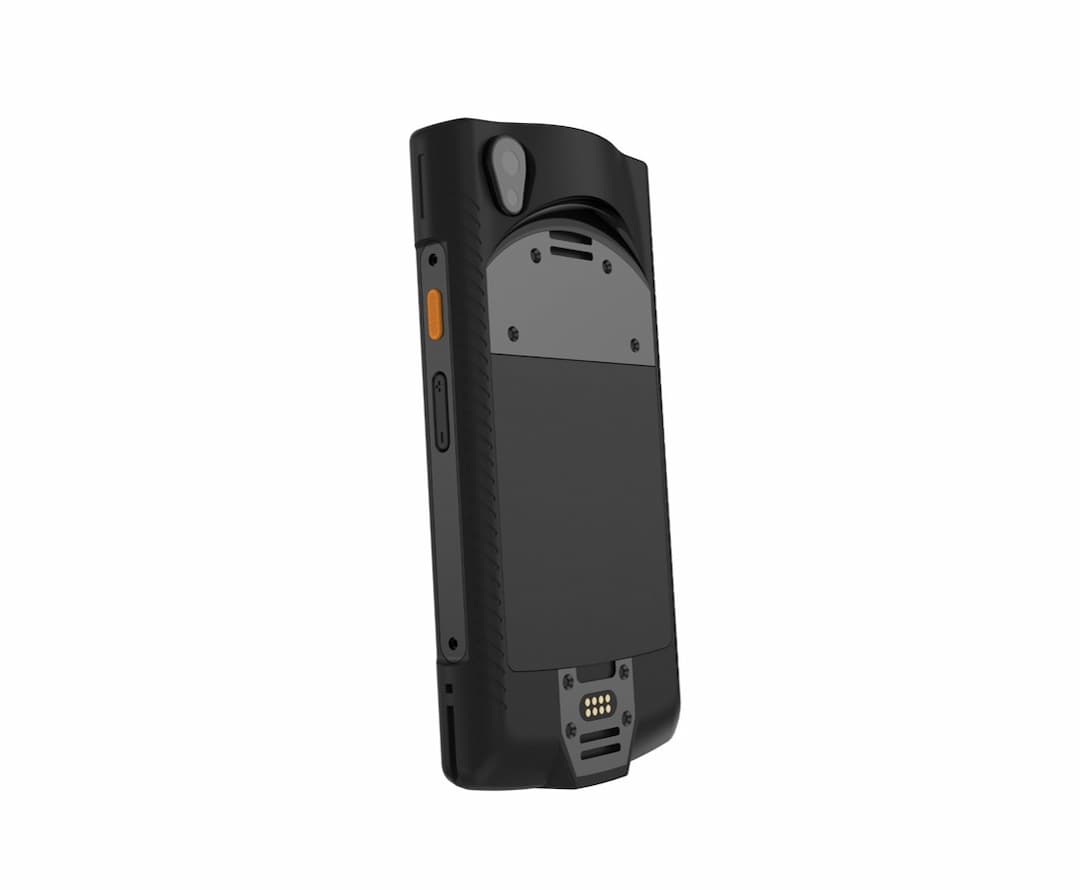

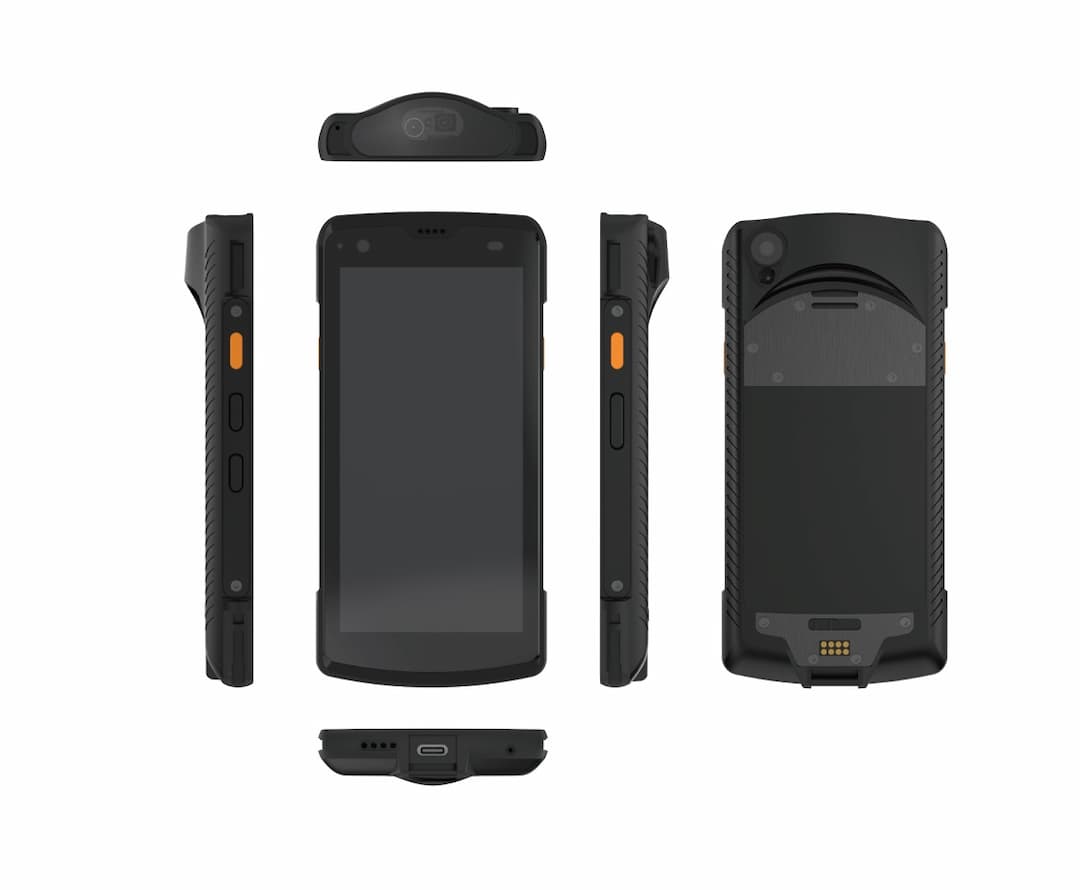

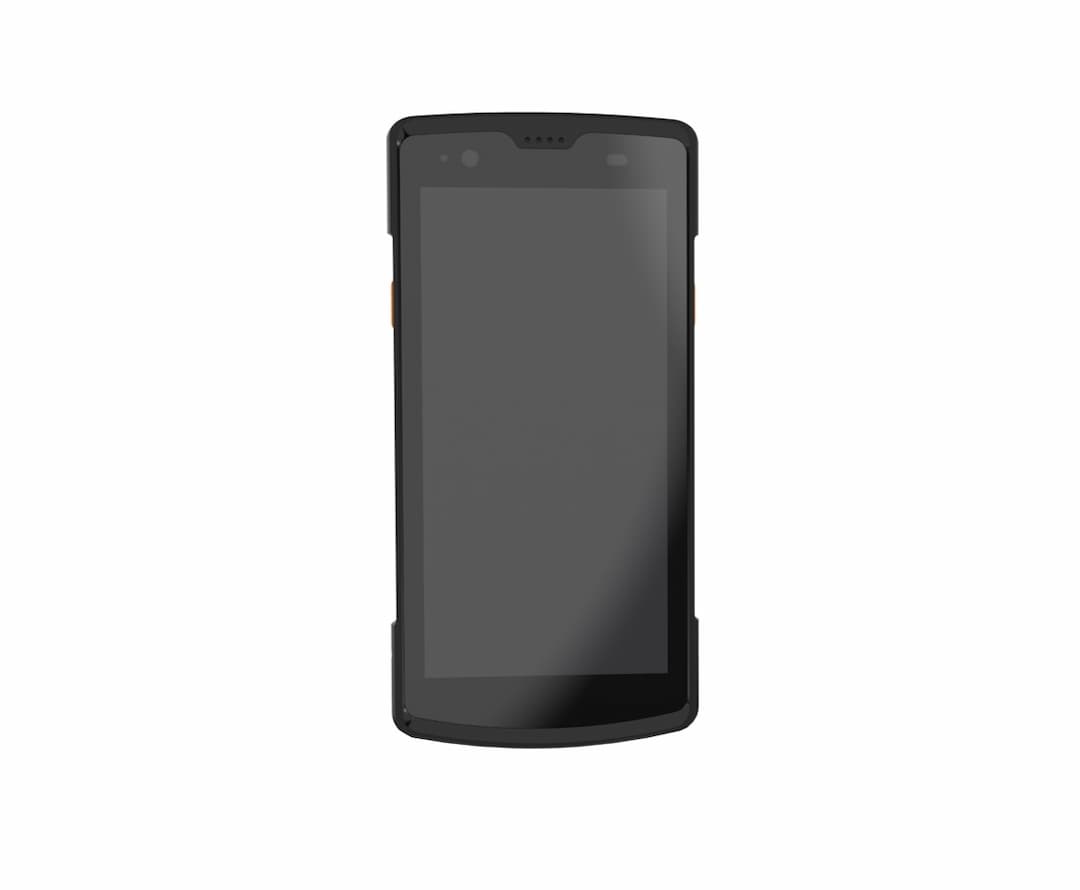

M05R1 5" Android Rugged Industrial Tablet

M05R1 5" Android Rugged Industrial Tablet

• MediaTek octa-core high-performance processor
• Large storage capacity for faster responsiveness
• 5” HD IPS display, 400 nits, OCA bonding
• Integrated high-precision 1D/2D barcode scanner
• Fast roaming dual band WLAN, BT 5.0, LTE CAT 4,
• NFC for seamless communication
• IP65-rated, 1.5m drop tested
• Pogo pin for user expansion
• USB Type-C for OTG, charging, and audio

Description

Specifications

Documentation

Vantron M05R1 rugged industrial tablet is a personal digital assistant (PDA), powered by MediaTek octa-core high-performance processor, delivering exceptional processing power and rapid system responsiveness. It features a 5-inch HD IPS display with a multi-touch PCAP touch screen, ensuring optimal visibility even under direct sunlight for improved outdoor usability.
Built with an ergonomics design, M05R1 is lightweight and slim to mitigate hand fatigue during extended usage. It is IP65-rated and 1.5m drop tested, ensuring reliable performance in harsh environments. M05R1 integrates a high-precision 1D/2D barcode scanner, enabling rapid scanning upon a press of the side buttons for quick data capture. It supports LTE CAT 4, Wi-Fi, and Bluetooth connectivity for seamless wireless communication. Additionally, the device includes GNSS and NFC functionalities for advanced location tracking and secure data exchange.
Designed to meet the rigorous demands of both commercial and industrial environments, M05R1 offers a comprehensive suite of features that enhance the efficiency, accuracy, and reliability of workflows, ensuring enterprise-level productivity and operational effectiveness.

Specifications

Product Name

M05R1 5" Android Rugged Industrial Tablet

CPU

MediaTek MT8768, Quad-core Arm Cortex-A53, 2.0 GHz + Quad-core Arm Cortex-A53, 1.5 GHz

GPU

IMG GE8320 @650MHz

Memory

4GB LPDDR4

Storage

64GB eMMC V5.1

Wi-Fi & Bluetooth

Wi-Fi 802.11 a/b/g/n/ac + BT 5.0

Cellular

LTE CAT 4; LTE-FDD: B2/B4/B5/B12/B13/B25/B26

NFC

13.56MHz, Compatible with ISO15693, ISO14443 Type A/B, Mifare, Felica

GNSS

GPS + BeiDou + GLONASS + Galileo, A-GPS supported

Display

5” 18:9 IPS panel; Contrast Ratio: 1000:1 ; Resolution: 720 x 1440 ; Brightness: 400 nits; Color depth: 16.7M ; Viewing angle: Horizontal: ±89° or 178° / Vertical: ±89° or 178°

5-point PCAP touchscreen, anti-fingerprint ; Surface hardness: 7H ; Cover lens: IK03 rated ; Light transmittance ratio: > 85% ; Finishing process: Chemical tempering

Camera

Front camera: 5MP, fixed focus; Rear camera: 13MP, auto focus, with flash

Audio

1 x 8Ω/1W speaker; 1 x Audio output via USB Type-C; 2 x Noise-reducing Mic; 1 x Receiver

USB

1 x USB 2.0 Type-C (OTG, audio, charging)

Barcode scanner

1D/2D code scan; DPI: Horizontal: 640 pixels/width, Vertical: 480 pixels/height

Pogo pin

2 x 4 pin, supporting 1 x I2C, 2 x Scan button, 1 x GPIO, 1 x Charging via a docking station

SIM slot

1 x Nano SIM slot

Sensor support

Gyroscope, 3-Axis e-compass/magnetometer, 3-Axis accelerometer (free fall), Ambient light sensor, Proximity sensor (SAR)

Button

1 x Power button ; 1 x Function button ; 2 x Scanner button ; 1 x Volume + / - button

LED indicator

1 x Battery level indicator

Input

USB Type-C power input (5V/2A DC, 9V/2A DC, 12V/2A DC, PD supported)

Battery

4000mAh/3.8V, Removable, 10-hour working time (Test with 1080p video play at 50% volume and 200 nits brightness.)

Android 11

Device management

BlueSphere MDM (Optional)

Material

Polycarbonate, TPU

Casing color

Black

Dimensions

162.71mm x 79.68mm x 24.00mm

Installation

Handheld

Protection

IP65

Environmental test

MIL-STD-810H, 1.5m drop tested

Temperature

Operating: -10°C ~+50°C Storage: -20°C ~+70°C

Humidity

10%-90% RH (Non-condensing)

Certification

FCC, CE; ESD (Contact: ±4KV, Air: ±8KV)
