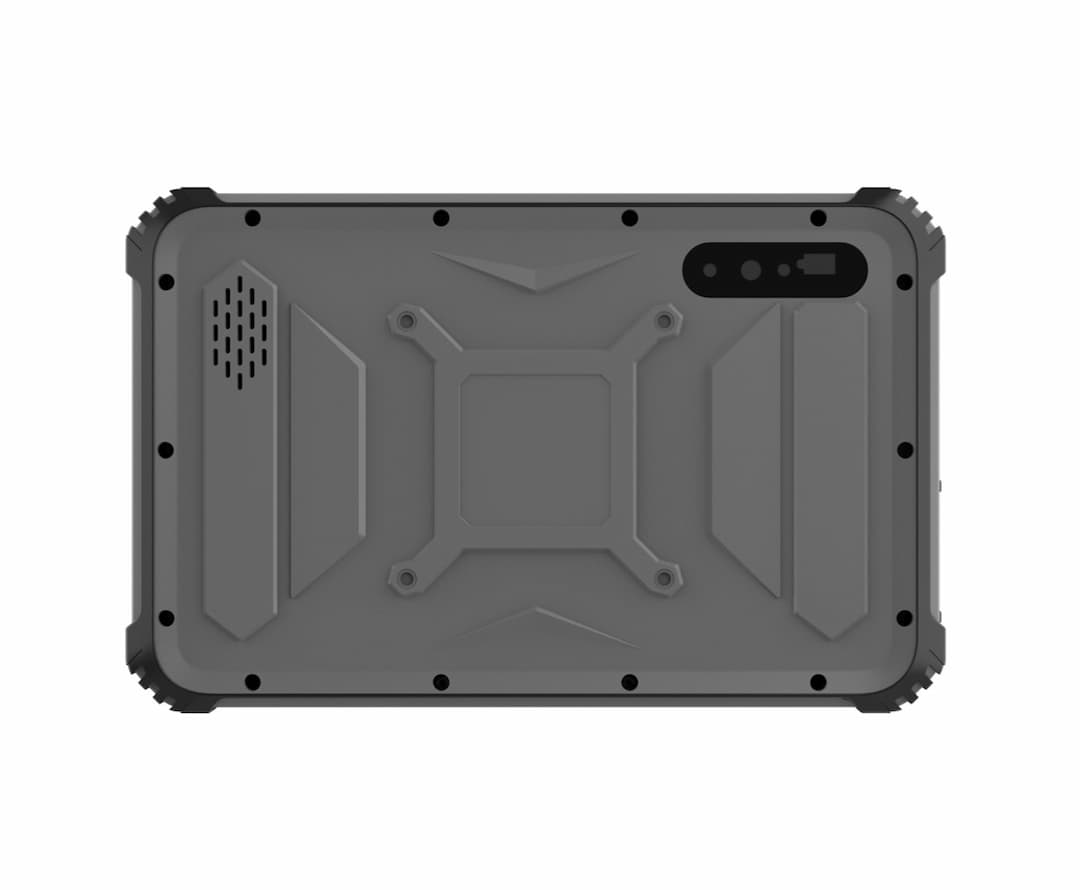

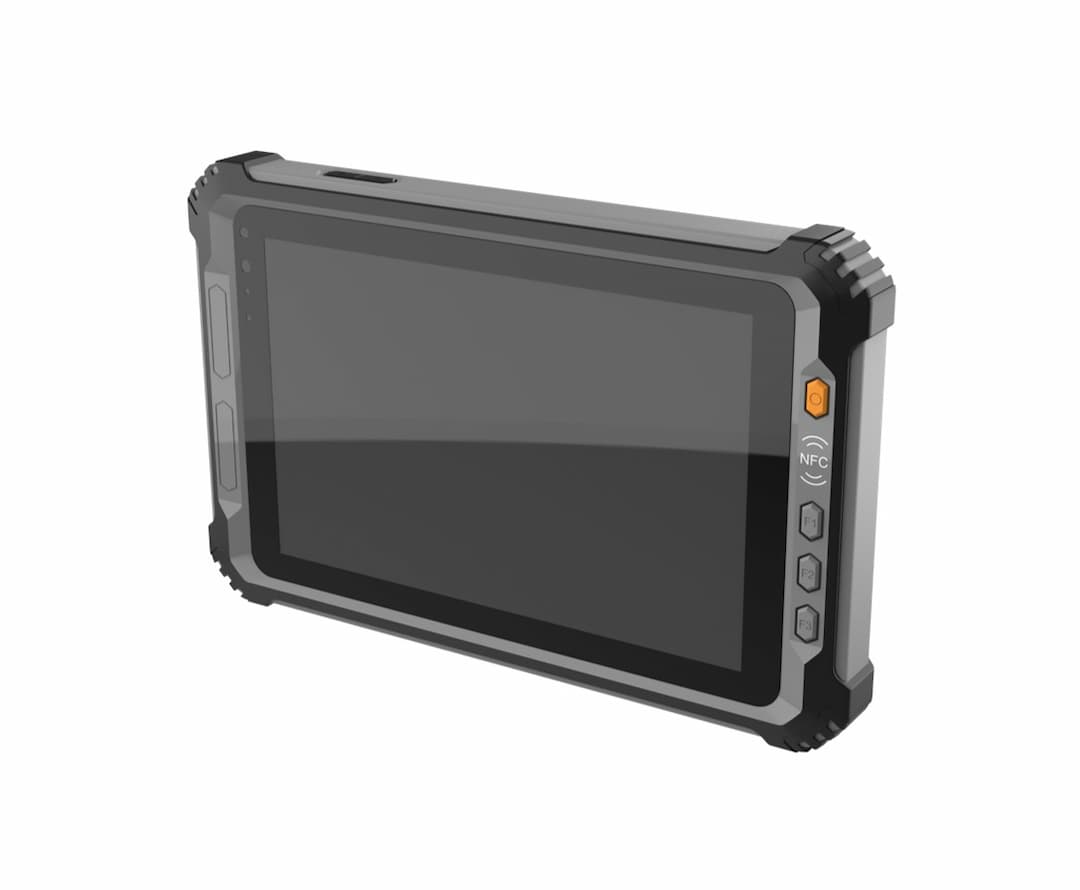

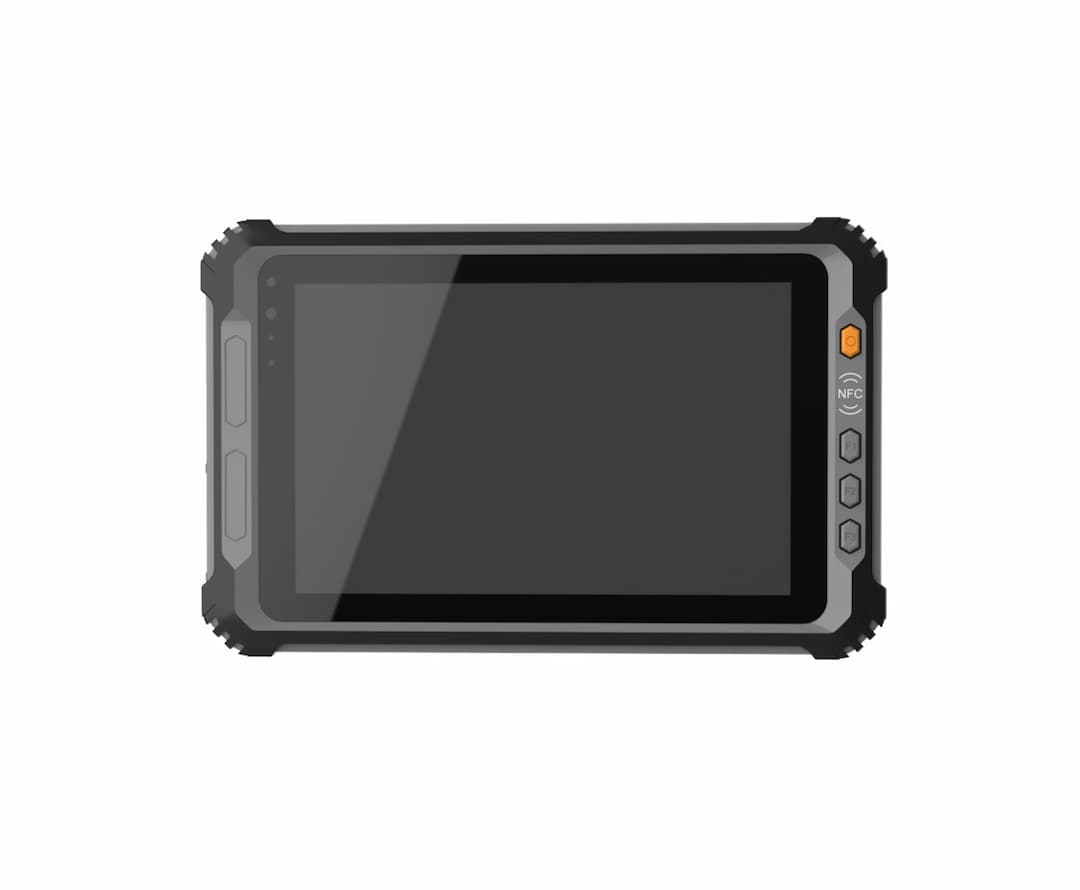

M08R2 8" Android Rugged Industrial Tablet

M08R2 8" Android Rugged Industrial Tablet

• MediaTek octa-core high-performance processor
• Large storage capacity for faster responsiveness
• 8” HD IPS display, 400 nits, OCA bonding
• Integrated high-precision 1D/2D barcode scanner
• Dual-band WLAN, BT 5.0, LTE CAT 4, NFC, GNSS integrated
• IP65-rated, 1.5m drop tested
• Pogo pin for user expansion
• USB Type-C for data and charging

Description

Specifications

Documentation

Vantron M08R2 rugged industrial tablet is powered by a MediaTek octa-core high-performance processor, delivering exceptional processing power and fast system responsiveness. It features an 8-inch HD IPS display with a multi-touch PCAP touch screen, providingoptimal visibility for improved outdoor usability.
Built with an ergonomics design, M08R2 is lightweight and slim , with a strap that helps reduce hand fatigue during extended usage. It is IP65-rated and has been tested from 1.5 meters, ensuring reliable performance in harsh environments. M08R2 also integrates a high-precision 1D/2D barcode scanner for quick, accurate data capture. It supports LTE CAT 4, Wi-Fi, and Bluetooth connectivity for seamless wireless communication. In addition, it includes GNSS and NFC functionalities for advanced location tracking and secure data exchange.
M08R2 offers a robust suite of features that enhance workflow efficiency, accuracy, and reliability, making it an ideal choice for industries such as warehousing, manufacturing, and healthcare, where enterprise-level productivity and operational effectiveness are paramount.

Specifications

Product Name

M08R2 8" Android Rugged Industrial Tablet

CPU

MediaTek MT8768A, Quad-core Arm Cortex-A53, 2.0 GHz + Quad-core Arm Cortex-A53, 1.5 GHz

GPU

IMG GE8320 @650MHz

Memory

4GB LPDDR4

Storage

64GB eMMC V5.1 (Optional: 128GB)

Wi-Fi & Bluetooth

Wi-Fi 802.11 a/b/g/n/ac + BT 5.0

Cellular (Optional)

LTE CAT 4; Band: B1/2/3/4/5/7/8/12/20/25/26/34/39/40/41

NFC

13.56MHz, Compatible with ISO/IEC 15693, ISO/IEC 14443 Type A/B, Mifare, Felica

GNSS

GPS + BeiDou + GLONASS + Galileo

Display

8” 16:10 IPS panel; Contrast Ratio: 800:1 ; Resolution: 1280 x 800 @60Hz ; Brightness: 400 nits ; Color depth: 16.7M Viewing angle: Horizontal: ±89° or 178° / Vertical: ±89° or 178°

5-point PCAP touchscreen, anti-fingerprint; Surface hardness: 6H; Cover lens: IK03 rated; Light transmittance ratio: > 85%; Finishing process: Chemical tempering

Camera

Front camera: 8MP, fixed focus; Rear camera: 13MP, auto focus, with flash

Audio

1 x 4Ω/2w speaker; 1 x 3.5mm Combo audio jack (CTIA standard)

USB

1 x USB 2.0 Type-C (OTG, charging); 1 x USB 2.0 Type-A

Barcode scanner (Optional)

1D/2D code scan; DPI: Horizontal: 640 pixels/width, Vertical: 480s pixel/height

Pogo pin

2 x 10-pin

SIM slot

1 x Nano SIM slot

TF slot

1 x TF slot

Sensor support

3D Accelerometer, 3D Gyroscope, 3-Axis e-compass/magnetometer, Ambient light sensor

Button

1 x Power button; 3 x Function button (customizable); 1 x Volume + / - button

LED indicator

1 x Battery level indicator; 1 x Camera working indicator

Input

USB Type-C power input (5V/2A DC, 9V/2A DC, 12V/2A, PD supported)

Battery

8000mAh/3.8V, 10-hour working time* ( Test with 1080p video play at 50% volume and 200 nits brightness.)

Android 11

Device management

BlueSphere MDM (Optional)

Material

Polycarbonate, TPU

Casing color

Grey & Black

Dimensions

240.90mm x 153.48mm x 25.37mm

Installation

VESA (75mm x 75mm, Nut: M3 x 3mm), Hand Strap (Optional)

Waterproof

IP65

Environmental test

MIL-STD-810H, 1.5m drop tested

Temperature

Operating: -10°C ~+50°C; Storage: -20°C ~+70°C

Humidity

5%-95% RH (Non-condensing)

Certification

FCC, CE; ESD (Contact: ±4KV, Air: ±8KV)

Documentation

Vantron M08R2 8” Rugged Industrial Tablet Datasheet
