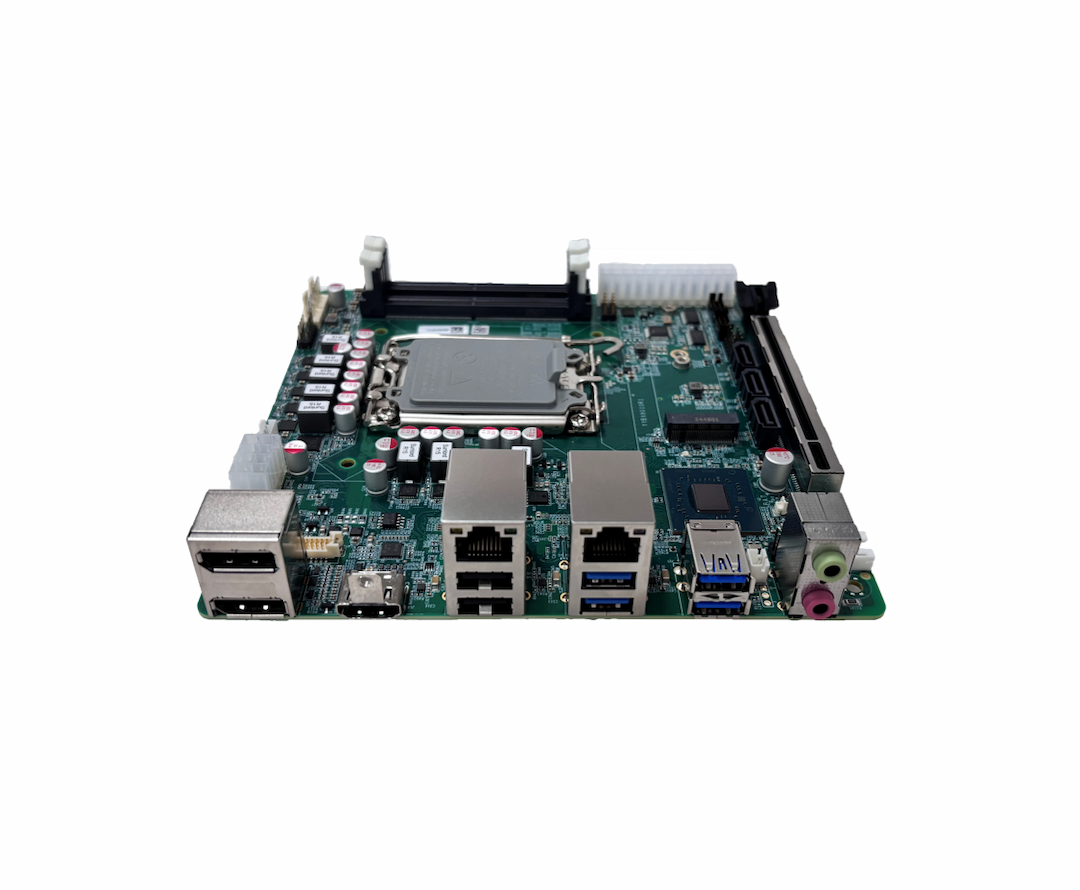

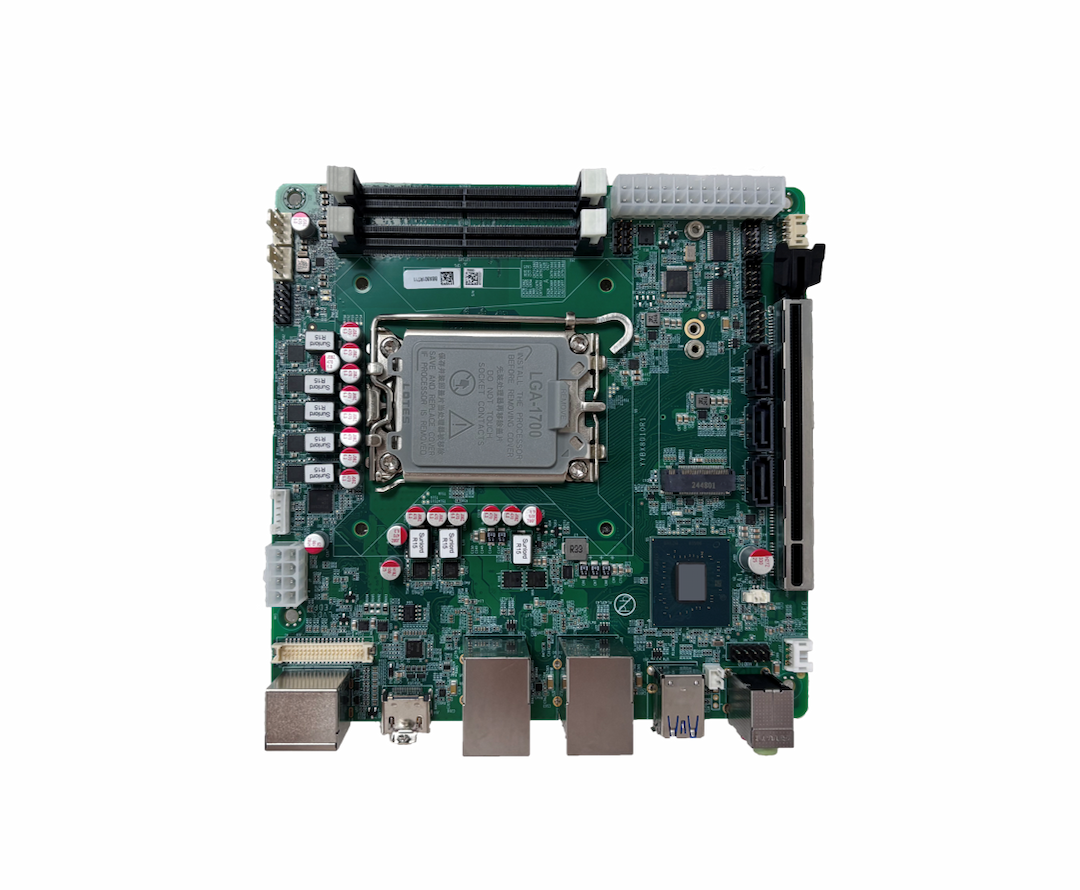

VT-MITX-RPL 12th/13th/14th Gen Intel Core Single Board Computer
VT-MITX-RPL 12th/13th/14th Gen Intel Core Single Board Computer
VT-MITX-RPL 12th/13th/14th Gen Intel Core Single Board Computer
VT-MITX-RPL 12th/13th/14th Gen Intel Core Single Board Computer
VT-MITX-RPL 12th/13th/14th Gen Intel Core Single Board Computer
VT-MITX-RPL 12th/13th/14th Gen Intel Core Single Board Computer

VT-MITX-RPL 12th/13th/14th Gen Intel Core Single Board Computer

• 12th/13th/14th Gen Intel® Core™ processor, LGA1700
• 2 x DDR5 SO-DIMM socket, up to 96GB
• High-speed I/O: PCIe 5.0, USB 3.0, SATA 3.0, M.2
• Up to 4 displays delivering up to 4K video output
• 2.5G Ethernet, optional Wi-Fi & Bluetooth
• Windows 10/11 IoT, Linux (support by request)
• Intel® Deep Learning Boost + GNA 3.0 AI acceleration
• MITX form factor

Description
Specifications
Documentation

VT-MITX-RPL single board computer comes in the MITX form factor with a compact 170mm x 170mm footprint. It supportsIntel’s 12th (Alder Lake), 13th (Raptor Lake), and 14th (Raptor Lake Refresh) Gen Core™ processors, delivering cutting-edge performance that caters to the exacting demands of gamers, content creators, and professionals alike. Built on the LGA1700 socket, it seamlessly supports Intel’s hybrid architecture, combining Performance and Efficient cores to optimize both single-threaded tasks and multi-threaded workloads. With support for PCIe 5.0, USB 3.0, high-speed DDR5 memory sockets, SATA 3.0, M.2 slots, along with additional header for front-panel expansion, the board is designed to break the barriers of speed and efficiency but also to guarantee long-term reliability.

For connectivity, the board offers 2.5G Ethernet, optional Wi-Fi and Bluetooth for lag-free networking. Supporting up to four independent displays via HDMI 2.0b, DisplayPort 1.4a, and optional LVDS/eDP interfaces, the board leverages Intel’s UHD Graphics (up to 770) and Deep Learning Boost technology to deliver up to 4K video output.

VT-MITX-RPL delivers unmatched performance, expandability, and security for applications such as high-performance gaming, low-latency HMI, edge AI processing, and industrial automation.

Specifications
Product Name
VT-MITX-RPL 12th/13th/14th Gen Intel Core X86-based Single Board Computer
CPU
Intel® Desktop 12th/13th/14th Gen Core™ processor, LGA1700 socket
Chipset
Q670/H610
GPU
Up to Intel® UHD Graphics 770, support OpenGL, OpenCL, Vulkan, DirectX
AI acceleration
Intel® Deep Learning Boost & Intel® Gaussian & Neural Accelerator 3.0 (GNA 3.0)
Memory
2 x DDR5 SO-DIMM socket, 5600MHz (CPU dependent), up to 96GB
Storage
3 x SATA 3.0, up to 600MB/s; SSD expansion by M.2 M-Key supported
Ethernet
2 x RJ45, 2500Mbps (Intel® I226-V controller)
Wi-Fi & Bluetooth
Optional (expansion by M.2 E-Key)
Video processing
Intel® UHD Graphics 770: 8K@60Hz HEVC (H.265) / 4K@60Hz AVC (H.264) decoder, 8K@30Hz/ 4K @120Hz HEVC (H.265) / 4K@60Hz AVC (H.264) encoder
Multi-display support
Up to 4 independent displays (chipset dependent)
Display interface
1 x HDMI 2.0b, up to 3840 x 2160 @ 60Hz; 2 x DP 1.4a, up to 4096 x 2304 @ 60Hz; 1 x eDP/LVDS (combo), up to 4096 x 2304 @60Hz; 1 x Backlight connector
Audio interface
1 x 3.5mm Line in jack; 1 x 3.5mm Line out jack; 1 x Audio header; 1 x Speaker header
Serial port
1 x RS232 header; 1 x RS232/RS485 header
USB
4 x USB 3.0 Type-A; 2 x USB 2.0 Type-A; 2 x Internal USB 2.0
GPIO
1 x 6-bit GPIO
Front panel
1 x Front panel header (power, reset, LED)
M.2
1 x M.2 M-Key (2242/2280, PCIe 3.0 x4 / SATA for SSD expansion); 1 x M.2 E-Key (2230, PCIe 3.0 x1 /USB 2.0 for Wi-Fi & BT expansion)
PCIe
1 x PCIe 5.0 x16 (32GT/s)
Security
TPM 2.0
RTC & WDT
Supported
BIOS
Insyde UEFI BIOS
Operating system
Windows 10/11 IoT, Linux (support by request)
Dimensions
170mm x 170mm x 35.63mm
Heat dissipation
Active cooling, 2 x 12V Fan header
Power Input
1 x 24-pin ATX header; 1 x 8-pin ATX header
Power Consumption
Typical 70W, Max. Turbo ~240W (CPU dependent)
Temperature
Operating: 0℃~+60℃; Storage: -40℃~+85℃
Humidity
10%-85% RH (Non-condensing)
Documentation
VT-MITX-RPL Single Board Computer Datasheet - V1.5.pdf
VT-MITX-RPL Single Board Computer Datasheet
